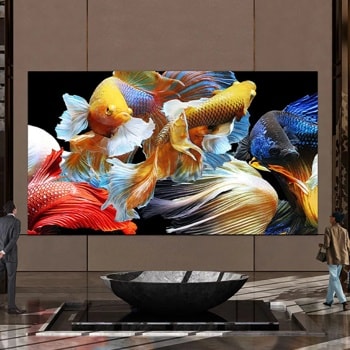

LG LMPB012BANA – Gen2 MAGNIT LMPB Series DVLED, P1.25, 480x270 resolution,

Product Overview

The LG Gen2 MAGNIT LMPB Series DVLED at P1.25 pixel pitch offers a 480x270 cabinet resolution designed for large-format commercial display walls in corporate lobbies, digital signage installations, and conference environments where a slightly wider viewing distance is acceptable. The 1.25mm pixel pitch balances image quality with a more accessible price point compared to sub-1mm alternatives, making it practical for large-area deployments. With 1,000 nit peak brightness, 20,000:1 contrast, and support for 96/100/120 Hz refresh rates, this cabinet delivers professional-grade performance across a broad range of content types. It is part of the Gen2 MAGNIT platform, which provides improved thermal management and serviceability over first-generation units.

Product Description

The Gen2 MAGNIT LMPB Series at 1.25mm pixel pitch is a direct-view LED cabinet engineered for commercial AV installations that require high brightness, accurate color, and reliable multi-cabinet tiling. The P1.25 specification is well suited to environments where viewers are positioned at distances of roughly 1.6 meters or greater, such as open-plan offices, large conference rooms, digital signage locations, and corporate common areas.

Each cabinet provides a native resolution of 480x270. Multiple cabinets can be combined into larger arrays to reach any target display resolution required by the installation. The 120 Hz maximum refresh rate ensures that motion content, video feeds, and animated data visualizations render without visible stuttering or flicker. The 20,000:1 contrast ratio maintains clear differentiation between dark and bright image areas, which is particularly relevant for mixed content including presentations, video, and live data.

Sustained brightness of 500 nits supports extended daily operating schedules typical of commercial digital signage, while the 1,000-nit peak accommodates HDR content and environments with elevated ambient light during daytime hours. Color uniformity across the cabinet face is a core characteristic of the MAGNIT platform, reducing calibration complexity in large arrays. The Gen2 architecture incorporates thermal improvements and front-access serviceability features that simplify maintenance in permanent installations. Creation Networks supports pre-sales scoping and post-installation technical assistance for MAGNIT LMPB deployments.

Key Features

• 1.25mm Pixel Pitch — Suitable for viewing distances from approximately 1.6 meters, covering a wide range of commercial installation scenarios.
• 480x270 Cabinet Resolution — Tiles accurately into multi-cabinet arrays for any target display size.
• 1,000 Nit Peak Brightness — Handles HDR content and moderately lit environments without loss of image quality.
• 500 Nit Typical Brightness — Calibrated sustained output for commercial operating schedules.
• 20,000:1 Contrast Ratio — Renders deep blacks and bright highlights across the full dynamic range.
• 96 / 100 / 120 Hz Refresh Rate — Smooth motion rendering for video, animation, and live data feeds.
• Uniform Color Performance — Consistent color across the cabinet face simplifies large-array calibration.
• Gen2 MAGNIT Platform — Improved thermal management and serviceability over first-generation MAGNIT cabinets.

Typical Applications

• Corporate lobbies and reception areas
• Large conference rooms and training spaces
• Digital signage walls in retail and hospitality venues
• Open-plan office feature displays
• Transportation hubs and public information displays
• Higher education lecture halls and collaboration spaces

Technical Specifications

Frequently Asked Questions

What is the recommended minimum viewing distance for the P1.25 cabinet?

A 1.25mm pixel pitch is generally comfortable for viewers at approximately 1.6 meters or greater. This covers most corporate lobby, large conference room, and open-plan office installations.

How does P1.25 compare to P0.93 in this series?

The P1.25 cabinet has a slightly larger pixel gap than the P0.93 model, which means it is designed for installations where viewers are positioned further from the screen. The P1.25 typically offers a lower cost per square meter while maintaining the same Gen2 MAGNIT brightness and contrast performance.

Can these cabinets be combined with P0.93 cabinets in the same array?

No. Cabinets of different pixel pitches should not be mixed in the same display array, as the pixel spacing difference would produce visible inconsistencies in image quality.

What refresh rates are supported?

The LMPB012BANA supports 96 Hz, 100 Hz, and 120 Hz refresh rates, selectable via the video controller configuration.

Is the brightness adjustable for different environments?

Yes. Brightness can be calibrated to the installation environment through the display controller. The 500-nit typical setting is recommended for controlled indoor environments, while higher brightness levels can be used in venues with significant ambient light.

Does Creation Networks provide project support for large installations?

Yes. Creation Networks offers pre-sales configuration guidance and can connect customers with installation partners. Visit creationnetworks.net for details.
