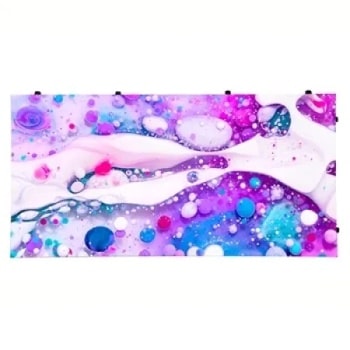

LG LCCM019-GN – LCCM DVLED P1.9 Indoor Flexible SMD 800Nit 320x160x9

Product Overview

The LG LCCM019-GN is an indoor flexible SMD DVLED panel with a 1.90mm pixel pitch designed for creative LED display installations where standard flat panels cannot achieve the intended design. Its specially engineered flexible LED Display Module (LDM) supports true concave and convex curvature from 611R, enabling curved, cylindrical, and free-form LED display configurations in commercial environments. At 800 nit brightness and 320x160x9mm dimensions, it is suited for architectural feature displays, retail installations, and design-led commercial AV environments.

Product Description

The LG LCCM019-GN flexible DVLED panel uses a purpose-designed flexible LDM (LED Display Module) that physically bends to accommodate curved installation surfaces, with a minimum curvature radius of 611R in both concave and convex directions. This true bidirectional flexibility significantly expands the range of architecturally creative LED display installations that can be achieved with a single panel type, removing the need for custom-fabricated curved display solutions in many applications.

The 1.90mm pixel pitch provides sufficient pixel density for close-range viewing in retail and hospitality environments where audiences may be within 2 to 5 meters of the display surface. At 9mm depth, the ultra-slim profile minimizes the panel's protrusion from the installation surface, which is particularly important in tight architectural integrations. Compatibility with LG's software solutions enables integration with LG's commercial signage management ecosystem for content scheduling and display control. The LCCM series is well suited for curved feature walls, column wraps, reception area displays, and any installation where geometric creativity is part of the design intent.

Key Features

• Flexible LED Display Module (LDM) — Specially designed module supports true concave and convex curvature from 611R for creative geometric installations.
• 1.90mm Pixel Pitch — Appropriate pixel density for close-range indoor viewing in retail and commercial environments.
• 9mm Ultra-Slim Depth — Minimal protrusion for tight architectural integrations and surface-mount installations.
• 800 Nit Brightness — Suitable for typical indoor commercial ambient light levels.
• Bidirectional Curvature — Both concave and convex bending from a single panel type.
• LG Software Compatibility — Integrates with LG commercial signage management solutions for content and display control.

Typical Applications

• Curved architectural feature displays in corporate lobbies
• Retail column wraps and free-form signage
• Hospitality venue feature wall installations
• Creative commercial AV and experiential marketing displays
• Broadcast studio curved backgrounds
• Museum and exhibition installations

Technical Specifications

Frequently Asked Questions

What does a 611R minimum curvature radius mean in practical terms?

A 611R curvature radius means the panel can be curved to a circle with a radius of 611mm (approximately 61cm). This determines how tightly the panel can curve around a cylindrical or curved surface in your installation design.

Can the LCCM019-GN be used in flat installations alongside curved sections?

Yes. The flexible panels can be installed flat or curved and combined within a single display wall design, giving integrators the ability to mix flat and curved sections in the same installation.

What installation support structure is required for curved flexible LED panels?

Flexible DVLED installations typically require a custom fabricated support structure that defines the intended curve geometry and holds the panels in the correct position. Qualified AV integrators with flexible LED experience should design and fabricate the support structure.

What software is compatible with this panel for content management?

The LCCM019-GN is compatible with LG's commercial software solutions. Contact Creation Networks at creationnetworks.net for specific CMS and control system compatibility guidance.

What warranty applies?

Contact Creation Networks at creationnetworks.net for current warranty terms and commercial support options for the LG LCCM019-GN.
