LG LBCK039-GN 3.91mm Pixel Pitch LED Ceiling LED Display for Virtual Production

Product Overview

The LG LBCK039-GN is a 3.91 mm pixel-pitch ceiling LED display cabinet engineered for virtual production studios. It pairs a high 5,000-nit calibrated brightness with 14-bit PQ/HLG processing for broadcast-grade overhead lighting and content. Each cabinet measures 500 x 1000 x 66.05 mm with a 128 x 256 resolution built from a 2 x 2 module layout. Native compatibility with Brompton processing makes it a fit for established broadcast and VP workflows.

Product Description

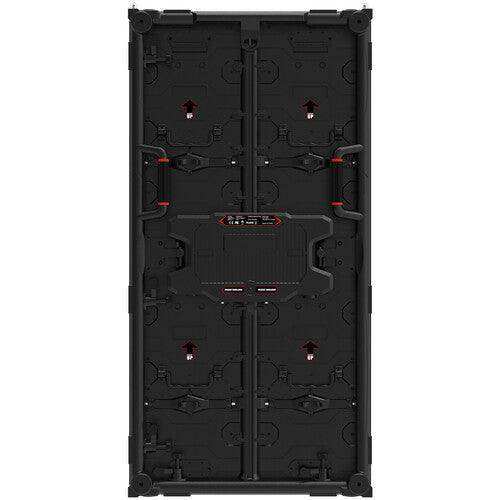

This LBCK-series ceiling cabinet uses 250 x 500 mm modules at a 64 x 128 module resolution, with a die-cast magnesium chassis weighing 12.5 kg per cabinet (24.9 kg/m²). Physical pixel density is 65,536 pixels per square meter and cabinet flatness is rated to plus or minus 0.3 mm. Modules attach with positioning pins and magnets and are removable with a dedicated tool from either the front or rear, depending on the configuration chosen at order. Calibrated brightness reaches 5,000 nits across a 2,000 to 11,000 K color temperature range with a 6,000:1 contrast ratio and 160-degree horizontal / 155-degree vertical viewing angles. Power runs on 100 to 240 V at a 50/60 Hz frame rate with a 3,840 Hz refresh rate; maximum cabinet draw is 300 W. The cabinet operates from -30 to +45 degrees C and carries CE, FCC, and ETL certifications plus RoHS compliance. The series is driven by a Brompton SX40 controller.

Key Features

• 3.91 mm pixel pitch — resolution suited to overhead ceiling planes viewed at distance.
• 5,000-nit brightness — strong output for ceiling lighting effects and exposure headroom.
• Brompton SX40 support — integrates with the broadcast and VP industry's common processing standard.
• 14-bit PQ/HLG processing — broadcast-grade dynamic range for on-camera work.
• Die-cast magnesium chassis — light 24.9 kg/m² weight for overhead rigging.
• Front or rear serviceability — choose access orientation to suit the ceiling install.
• Wide color temperature — 2,000-11,000 K range for matching studio lighting.
• 100,000-hour LED lifetime — rated to half brightness for long-term studio use.

Typical Applications

The LBCK039-GN is purpose-built for film and broadcast virtual production studios, where it forms the overhead ceiling plane of an LED volume to provide interactive lighting and reflections for in-camera VFX. Its high brightness and Brompton compatibility make it appropriate for VP stages, broadcast sets, and commercial production studios. The lightweight magnesium cabinet eases overhead rigging in these environments.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

Why is this called a ceiling display?
It is designed to form the overhead plane of a virtual production LED volume, providing lighting and reflections for in-camera VFX.

Does it work with Brompton processing?
Yes. The LBCK series is driven by a Brompton SX40 controller, which is common in broadcast and virtual production.

How bright is it?
Calibrated maximum brightness is 5,000 nits, with a wide 2,000-11,000 K color temperature range.

Can I service it from the front?
Yes. Front or rear access is selectable, chosen to suit the ceiling installation.
