LG LBCJ026-GM LED Display for Virtual Production - High Dynamic Range (HDR) - 192 X 192 - LED - 1500 Nit

Product Overview

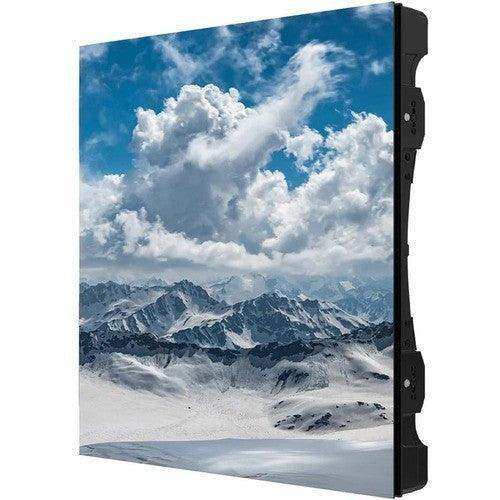

The LG LBCJ026-GM is a 2.6 mm pixel-pitch LED display cabinet purpose-built for virtual production and broadcast studios. It delivers HDR support (HLG and PQ) with accurate color reproduction and low-latency video processing for on-camera work. Each cabinet carries a 192 x 192 resolution across a 2 x 2 module layout and supports curved configurations via an angle-adapter and fast-lock system. Calibrated brightness reaches 1,500 nits.

Product Description

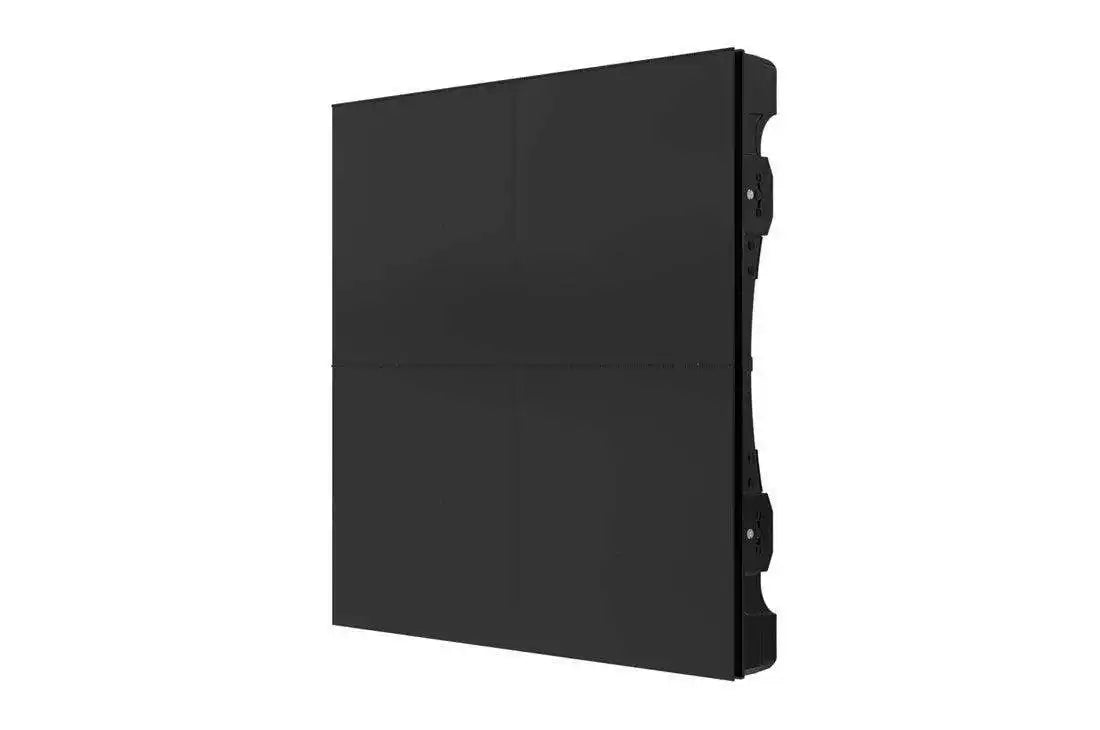

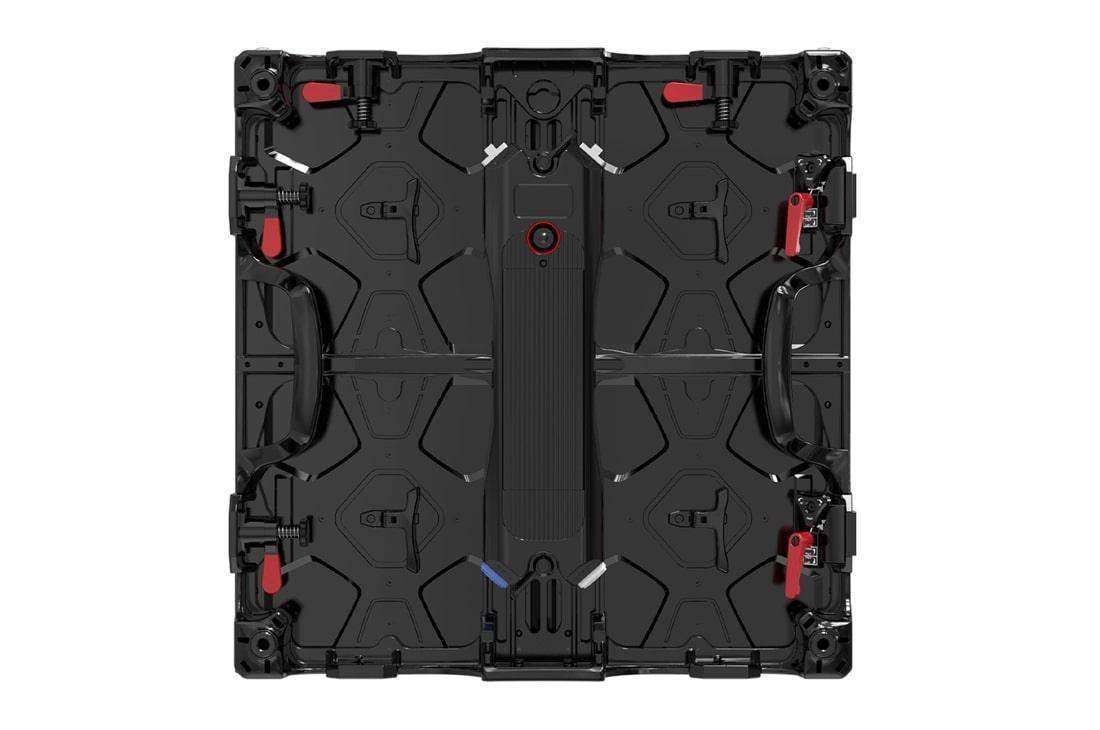

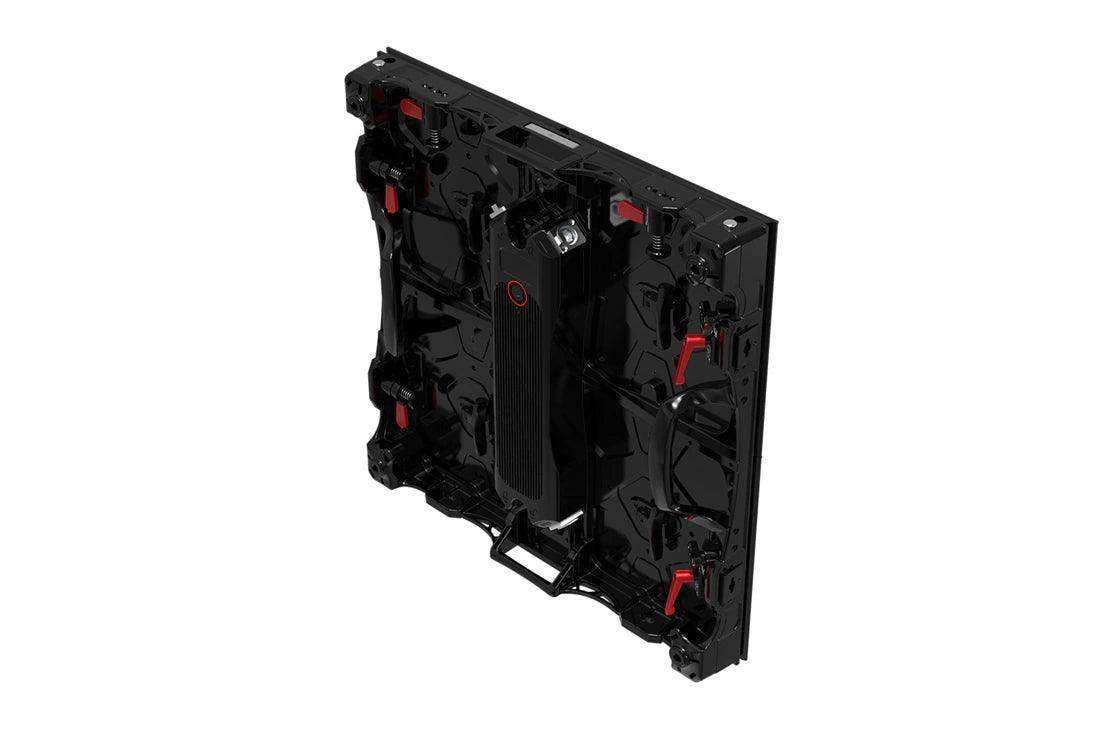

This LBCJ-series cabinet measures 19.7 x 19.7 inches with a 3-inch depth and weighs approximately 1.30 lb in the listed module configuration. Modules attach using positioning pins and magnets, and can be removed with a suction tool for either front or rear service access. The mechanical connection between panels uses an angle adapter and fast lock that adjusts 10 degrees in concave areas and 5 degrees in convex areas, enabling curved studio volumes. Optional single, double, and triple beam accessories allow stacking or hanging to match the studio rig. The cabinet carries an IP30 ingress rating and a 5,000:1 dynamic contrast ratio. HDR support spans HLG and PQ formats for broadcast-grade output. Environmental compliance covers RoHS and REACH.

Key Features

• 2.6 mm pixel pitch — fine resolution for close-up camera framing in virtual production.
• 1,500-nit brightness — headroom for studio lighting and in-camera exposure.
• HDR (HLG / PQ) — broadcast-quality dynamic range with accurate color reproduction.
• Curve effect support — 10° concave / 5° convex panel adjustment via angle adapter and fast lock.
• Stacking and hanging system — single, double, and triple beam options for studio rigging.
• Front or rear serviceability — magnet-and-pin module mounting with suction-tool removal.
• Low-latency processing — designed for on-camera capture without visible lag.
• IP30 rated — suited to controlled indoor studio environments.

Typical Applications

The LBCJ026-GM is built for film and broadcast virtual production studios, serving as an on-camera LED background or volume wall. Its HDR support, accurate color, and low-latency processing make it appropriate for in-camera VFX, news and sports studio backdrops, and corporate broadcast sets. The curve and rigging options let it form curved volumes and ceiling or wraparound configurations.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

Is the LBCJ026-GM designed for virtual production?
Yes. It is an LED display for virtual production with HDR (HLG/PQ), accurate color, and low-latency processing for on-camera use.

Can it form curved walls?
Yes. The angle-adapter and fast-lock system allows 10 degrees of concave and 5 degrees of convex adjustment between panels.

How is it rigged in a studio?
Optional single, double, and triple beam accessories support both stacking and hanging configurations.

What is the cabinet resolution and pitch?
Each cabinet is 192 x 192 pixels at a 2.6 mm pitch, built from a 2 x 2 module layout.
