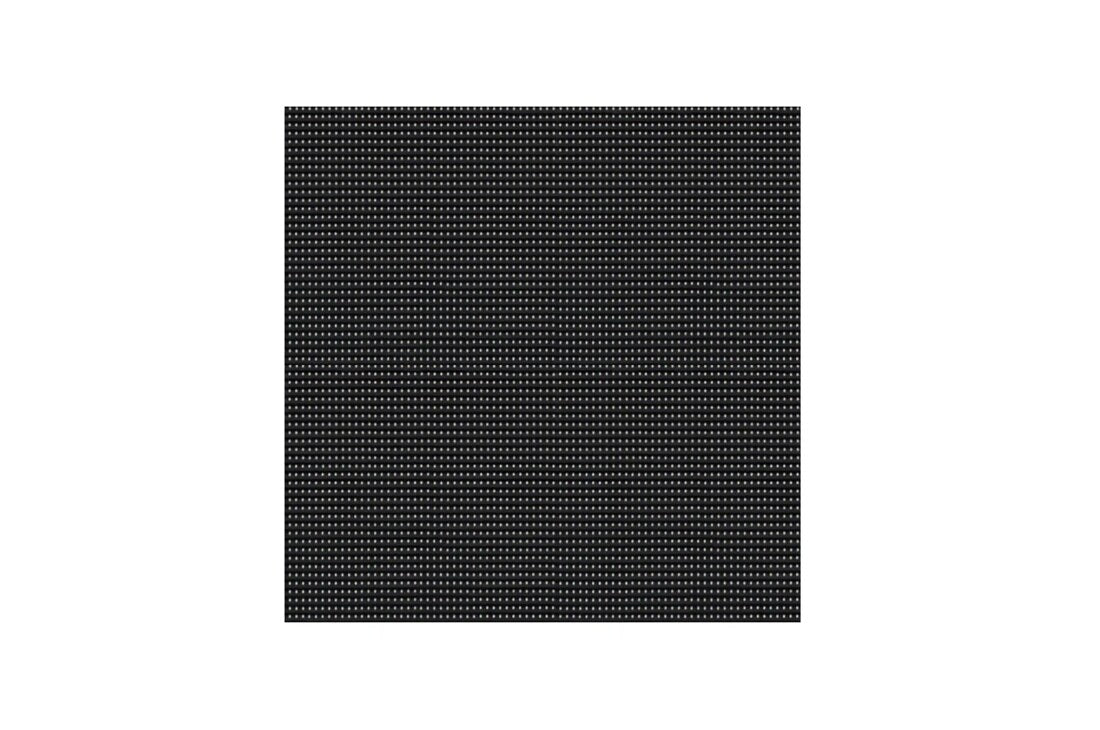

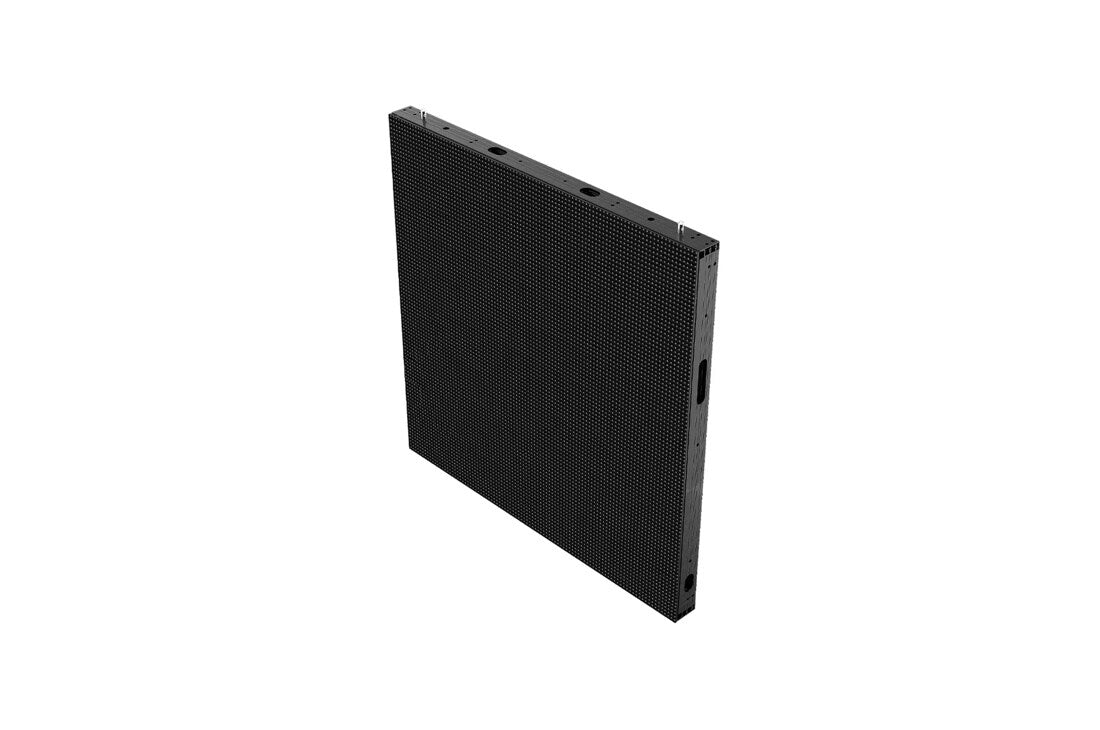

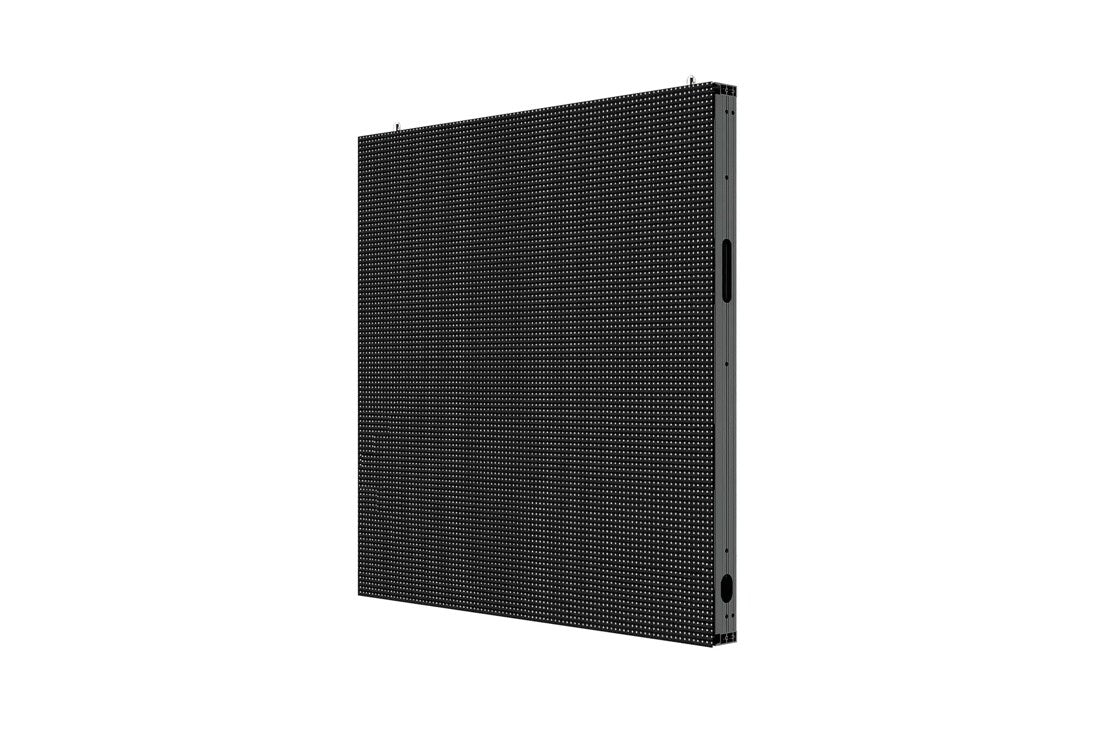

LG GSPA100-GE – Ultra Light - High Brightness GSPA Series DVLED, P10, 92x90 resolution

Product Overview

The LG GSPA100-GE is an ultra-light, high-brightness outdoor DVLED panel with a 10mm pixel pitch delivering up to 10,000 nit peak brightness, designed specifically for large billboard installations and mid-to-high building facade applications where maximum long-distance visibility is required. Its ultra-light cabinet construction reduces structural load for elevated and facade-mounted arrays, while IP66-rated front and rear surfaces ensure dependable operation in permanent outdoor environments. The 10mm pixel pitch is optimized for viewing distances where fine pixel detail is not the priority, but brightness and impact are.

Product Description

The LG GSPA100-GE delivers up to 10,000 nits of peak brightness within an ultra-light outdoor DVLED cabinet at 92x90 pixels per panel, providing the high-output luminance required to compete with ambient daylight in large outdoor signage applications. At 10mm pixel pitch, this panel is intended for large-scale display walls viewed from distances of 10 meters or more, where the pixel structure is not discernible to the viewer and the priority is color saturation, brightness uniformity, and large graphic legibility.

Building facade and roadside billboard installations typically involve mounting displays at significant heights, where cumulative structural load across a large panel array is a key engineering consideration. The ultra-light cabinet design of the GSPA100-GE directly addresses this by reducing per-cabinet weight, potentially lowering the structural support requirements for the overall installation. At 8,000 nits sustained and 10,000 nits peak, this panel maintains strong visual performance across the full range of outdoor ambient conditions from overcast to peak midday sunlight. Both front and rear surfaces carry IP66 ratings, meeting dust-tight and high-pressure water resistance standards for long-term outdoor deployment.

Key Features

• 10mm Pixel Pitch — Optimized for large-scale billboard and facade viewing distances where maximum brightness and graphic impact are priorities.
• 10,000 / 8,000 Nit Brightness — Peak and sustained high-output brightness for clear visibility in direct sunlight on large outdoor displays.

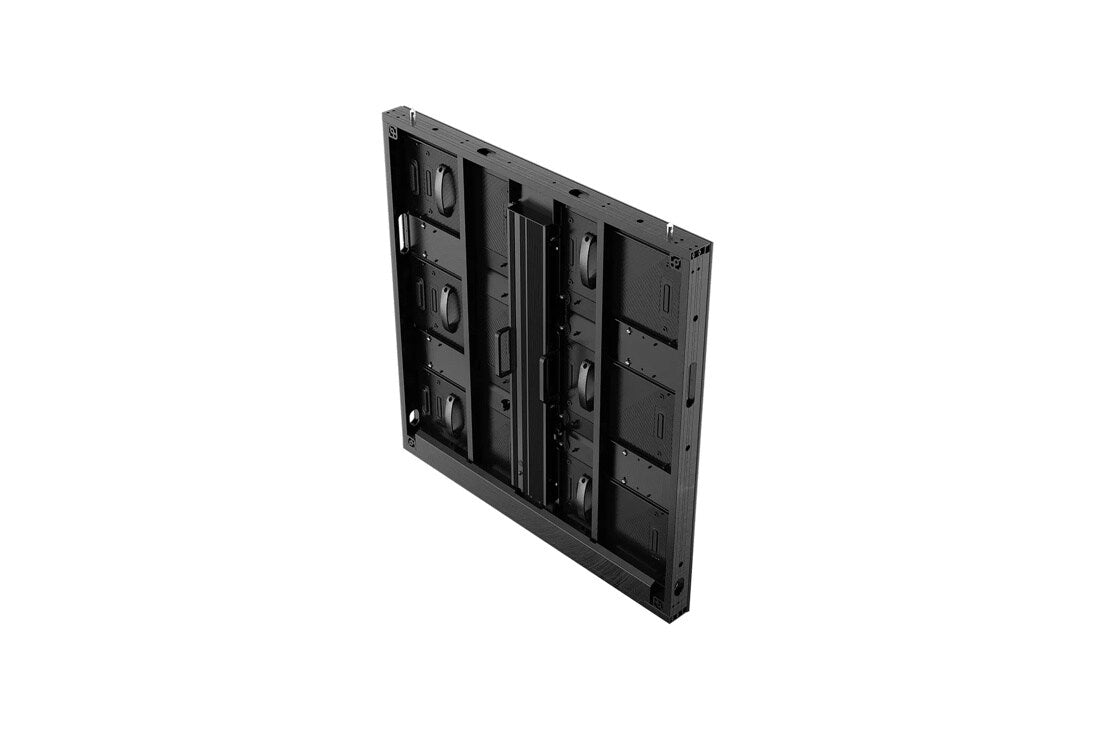

• Ultra-Light Cabinet — Reduced weight lowers structural load requirements for elevated and building-mounted display array installations.
• IP66 Rated (Front & Rear) — Complete dust and high-pressure water resistance on both surfaces for permanent outdoor deployment.
• 92x90 Pixel Cabinet Format — Standard full-cabinet format tiles efficiently into large display wall arrays.

Typical Applications

• Large outdoor billboard installations
• Mid-to-high rise building facade LED displays
• Roadside and highway advertising signage
• Sports venue exterior perimeter boards
• Transit hub and public space large-format signage

Technical Specifications

Frequently Asked Questions

What is the recommended minimum viewing distance for a 10mm pixel pitch display?

A general rule of thumb is that the minimum comfortable viewing distance in meters approximates the pixel pitch in millimeters. For a 10mm pitch, a minimum viewing distance of approximately 10 meters is typical, though display wall size and content type also affect this.

How does 10,000 nit output compare to what is needed for direct sunlight visibility?

Direct sunlight conditions typically require sustained brightness above 5,000 nits for reliable outdoor visibility. At 8,000 nits sustained, this panel exceeds that threshold, ensuring legibility even in high ambient light conditions.

Is the GSPA100-GE compatible with GSPA066 panels in the same installation?

Mixing pixel pitches within a single continuous display wall is generally not recommended. Contact Creation Networks at creationnetworks.net for design consultation on multi-cabinet outdoor installations.

What structural assessment is needed for a facade installation?

A structural engineer should assess the facade or support structure before finalizing the installation design. The ultra-light cabinet helps, but cumulative weight across large panel arrays still requires proper engineering review.

What warranty applies?

Contact Creation Networks at creationnetworks.net for current warranty terms and commercial support options for the LG GSPA100-GE.
