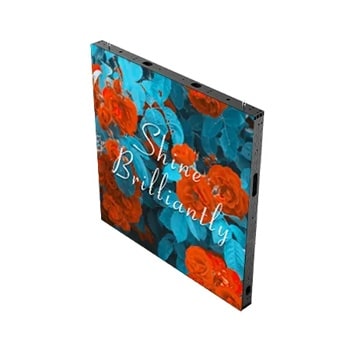

LG GSPA066-GA – GSPA DVLED P6.6 Outdoor Ultra Light 8000Nits 960x960x68

Product Overview

The LG GSPA Series P6.6 outdoor direct-view LED cabinet delivers up to 8,000 nit brightness in a 960x960x68 mm ultra-lightweight form factor, engineered for large-scale outdoor LED video wall installations including billboards, building facades, and mid-to-high elevation signage. With a 6.67 mm pixel pitch, IP66 front and rear ingress protection rating, and high-brightness dual output (8,000/6,000 nit), this DVLED cabinet is built for long-distance visibility in demanding outdoor environments. The ultra-light cabinet design reduces structural load requirements for large-format elevated installations where weight is a critical engineering consideration. Creation Networks supplies the GSPA series for commercial AV integrators and large-format outdoor LED display projects.

Product Description

The GSPA066-GA is LG's P6.6 ultra-lightweight outdoor direct-view LED cabinet, designed for applications where display size, viewing distance, and structural weight constraints converge — primarily large billboards, building facades, and elevated outdoor signage. The 8,000 nit peak brightness ensures that content remains clearly visible in direct sunlight from significant distances, which is the operational baseline for billboard and facade LED installations. The 6,000 nit alternative brightness mode provides an energy-efficient option for environments with slightly lower ambient light demands. The 6.67 mm pixel pitch is appropriate for large-format outdoor displays viewed from distances of 7 meters and beyond, where fine-pitch resolution is unnecessary and wider pixel pitch contributes to larger cabinet size and lower cost per square meter. IP66 ingress protection on both the front and rear of the cabinet provides comprehensive weather resistance against dust and water, which is essential for permanent outdoor installations exposed to rain, humidity, and particulate matter. The 960x960x68 mm cabinet dimensions and ultra-light construction significantly reduce the structural engineering requirements for elevated installations, making the GSPA a practical choice for projects where building load capacity constrains traditional heavy outdoor LED cabinet options. Creation Networks provides outdoor LED system design, structural load calculations support, controller selection, and installation partner referrals for GSPA series deployments.

Key Features

• 8,000 / 6,000 Nit Brightness — High-output modes ensure content visibility in direct sunlight at long viewing distances.
• 6.67 mm Pixel Pitch — Appropriate for large billboard and facade applications viewed from 7 meters or beyond.
• IP66 Front and Rear Rating — Comprehensive weather resistance for permanent outdoor installations.
• 960x960x68 mm Ultra-Light Cabinet — Large-format module reduces installation count while keeping structural load low.
• Ultra-Light Design — Reduces structural engineering requirements for elevated and facade installations.
• Long-Distance Visibility — High brightness and large module size designed for billboard-scale audience reach.
• Dual Brightness Modes — 8,000 nit and 6,000 nit modes provide flexibility for different ambient light conditions.

Typical Applications

• Large-format outdoor billboards and roadside signage
• Mid-to-high building facade LED displays
• Stadium and arena exterior LED installations
• Outdoor advertising and media facade systems
• Transportation hub and airport exterior displays
• Retail and commercial building exterior signage
• Outdoor event and concert screen installations

Technical Specifications

Frequently Asked Questions

What viewing distance is this cabinet designed for?

The 6.67 mm pixel pitch of the GSPA066-GA is designed for outdoor viewing distances of approximately 7 meters and greater. This covers most billboard, facade, and elevated signage applications where the audience is at distance from the display.

What does IP66 mean for outdoor LED cabinets?

IP66 indicates complete protection against dust ingress and protection against powerful water jets from any direction. This rating is appropriate for outdoor LED displays exposed to rain, pressure washing during cleaning, and high-humidity environments.

What controller system is required?

The GSPA series requires a compatible outdoor LED video processor and receiving cards. Controller requirements depend on total cabinet count and target resolution. Creation Networks provides complete system specifications for outdoor LED projects. Contact us at creationnetworks.net.

How does the ultra-light design benefit elevated installations?

Reduced cabinet weight directly lowers the structural load on the mounting structure or building facade. For elevated billboard and high-rise facade installations, lighter cabinets can reduce engineering costs, enable installations on structures with lower load capacity, and simplify the mounting hardware design.

Is the GSPA series suitable for rooftop billboard installations?

Yes, the GSPA series is designed for elevated and facade applications. Structural engineering review is required for any rooftop or elevated installation to confirm load capacity and wind resistance compliance with local building codes. Creation Networks can connect you with experienced outdoor LED installation partners.

What warranty is provided?

LG commercial LED products carry LG's standard commercial warranty. Contact Creation Networks for current warranty terms and service options for outdoor LED products.
