LG GSEG060-GR 5.95mm Pixel Pitch LED Signage Display Cabinet
Product Overview
The LG GSEG060-GR is an outdoor-rated Direct View LED signage cabinet with a 5.95 mm pixel pitch and 7,000 nits of brightness. It is part of the GSEG series, which also offers 6,000-nit and 10,000-nit brightness options selected before shipment. The cabinet carries an IP66 rating and supports front and rear service access. It is curve-capable and integrates with LG software solutions through the CVEA system controller.
Product Description
This cabinet is built for permanent outdoor installations where high ambient light demands extreme brightness. At 7,000 nits it stays readable in direct daylight, and the 5.95 mm pitch suits the medium-to-long viewing distances typical of building exteriors and large venues. An IP66 rating provides full dust protection and protection against powerful water jets. A cable-less module design connects the LED module to the cabinet system without cables, completing power and signal connection automatically when the module is installed, which improves reliability and simplifies maintenance. A guide pin assists alignment of the upper and lower cabinet edges. When paired with LG's CVEA system controller, the GSEG series works with SuperSign CMS, LED Assistant, and ConnectedCare. The cabinet is also available for curved screen configurations.
Key Features
- 7,000 Nit Brightness — Readable in direct daylight for outdoor exteriors.
- 5.95 mm Pixel Pitch — Suited to medium and long outdoor viewing distances.
- IP66 Rated — Full dust protection and protection against powerful water jets.
- Cable-less Module Design — Automatic power and signal connection improves reliability.

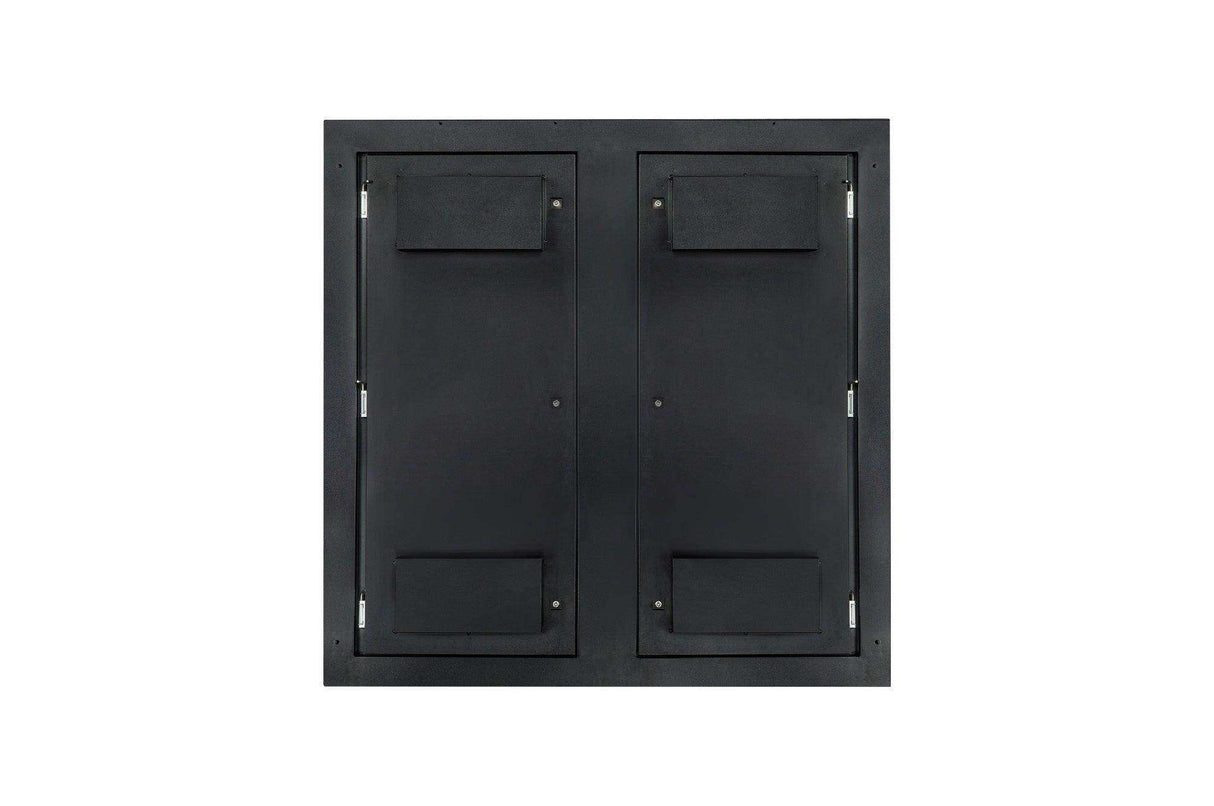

- Front and Rear Service Access — Maintenance from either side simplifies servicing.
- Curved Screen Capable — Supports curved configurations for architectural installs.
- LG Software Compatibility — Works with SuperSign CMS, LED Assistant, and ConnectedCare via the CVEA controller.
- Guide Pin Alignment — Eases adjustment of upper and lower cabinet edges during install.
Typical Applications
- Building exteriors and architectural facades.
- Stadiums and large outdoor venues.
- Transit hubs and transportation terminals.
- Public plazas and civic spaces.
- Outdoor advertising and large-format signage.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / MPN | GSEG060-GR |
| Brand | LG Electronics |
| Display Type | Outdoor Direct View LED Signage |
| Pixel Pitch | 5.95 mm |
| Brightness | 7,000 nits (-GR) |
| Brightness Options | 6,000 / 7,000 / 10,000 nits (factory-set) |
| Ingress Protection | IP66 |
| Service Access | Front and Rear |
| Curved Capable | Yes |
| Software | SuperSign CMS, LED Assistant, ConnectedCare (via CVEA controller) |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Is this cabinet suitable for outdoor use?
Yes. It is IP66 rated and produces 7,000 nits, which is built for permanent outdoor installations in high ambient light.
Can the brightness be changed after installation?
No. Brightness options (6,000 / 7,000 / 10,000 nits) are set at the factory before shipment and cannot be changed afterward.
Can it be installed as a curved screen?
Yes, the GSEG060-GR is available for curved screen configurations.
How do I plan a full outdoor wall?
Contact Creation Networks at creationnetworks.net for sizing, controller, and software configuration support.
