Product Overview

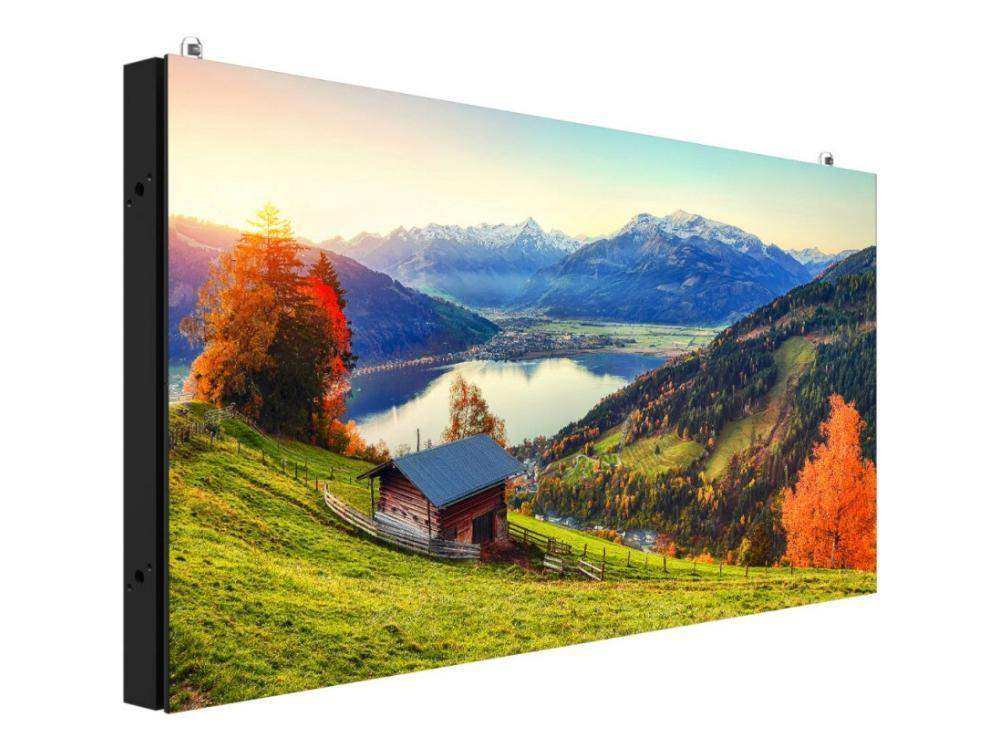

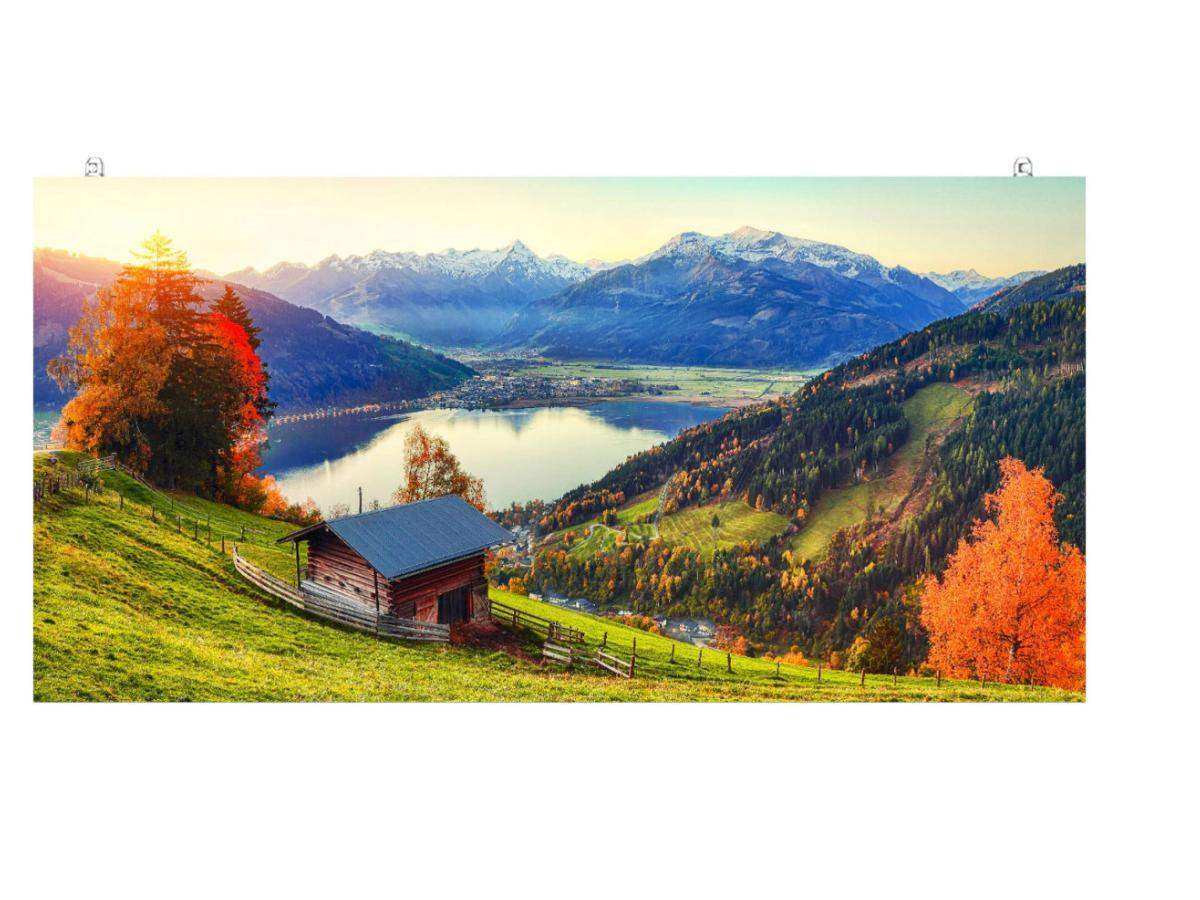

The LG GSCD100-GN2 is an outdoor direct-view LED cabinet in LG's GSCD Ultra Light series, combining a 10.41 mm pixel pitch with a 5,000-nit brightness rating. It uses a single-SMD 3-in-1 LED package in a half-height 1,000 x 500 mm cabinet with an IP65-rated weatherproof design. The lightweight build reduces structural load on host buildings. It is engineered for large-format outdoor signage viewed at longer distances.
Product Description

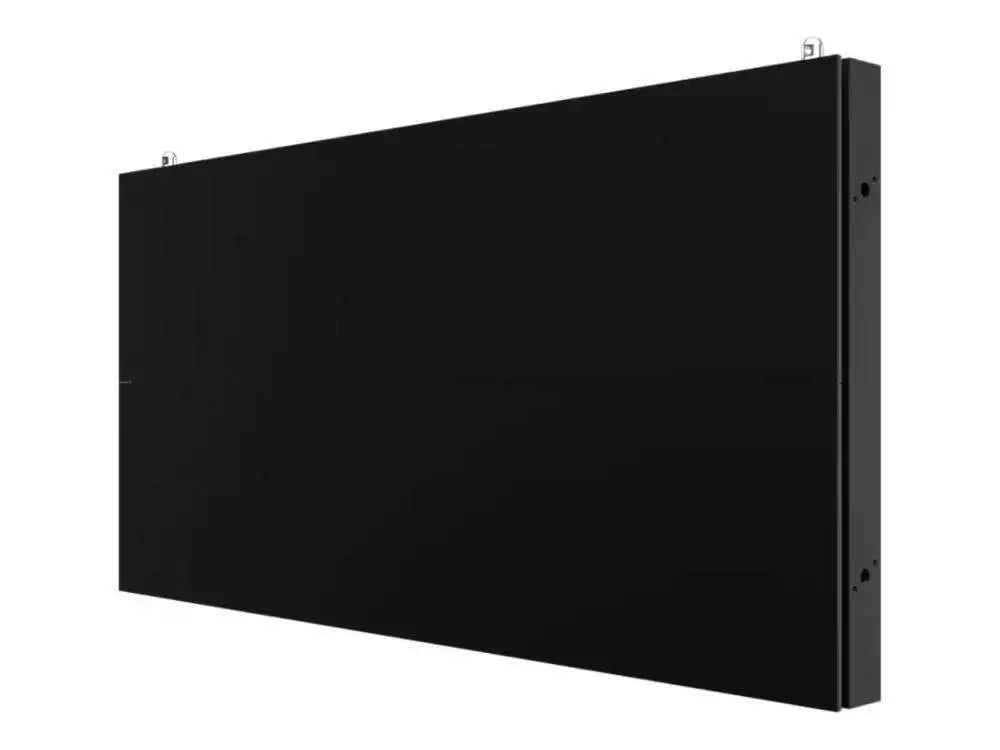

This half-height cabinet measures 1,000 mm wide by 500 mm high at roughly 85.1 mm depth, providing a horizontal building block for tiling wide outdoor arrays. The 10.41 mm pitch is tuned for long viewing distances typical of facades, billboards, and stadium displays, while the 5,000-nit output competes with ambient daylight. Both the front and back of the cabinet are IP65 certified for stable operation in adverse weather. The Ultra Light design keeps cabinet weight low so large screens place less load on the building. A modular control unit (PDU) attaches or detaches for easier maintenance, and the product offers a choice of front or rear serviceability. An optional 90-degree corner design supports right-angled installs, and the series is compatible with LG SuperSign CMS, LED Assistant, and ConnectedCare.
Key Features
- 10.41 mm Pixel Pitch — optimized for long-distance outdoor viewing.
- 5,000-nit Brightness — daylight-readable output for outdoor use.
- IP65 Weatherproof — front and back certified for durability.
- Half-Height Cabinet — 1,000 x 500 mm format for flexible tiling.
- Ultra Light Design — reduces structural load on host buildings.
- Front or Rear Service — flexible access for varied install environments.
- LG Software Compatible — works with SuperSign CMS, LED Assistant, and ConnectedCare.
Typical Applications
The GSCD100-GN2 suits large building facades, billboards, stadiums, transit hubs, and outdoor plazas viewed at longer distances. The half-height format helps integrators fine-tune wall aspect ratios on large installs.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | GSCD100-GN2 |
| Series | GSCD Ultra Light (Outdoor DVLED) |
| Pixel Pitch | 10.41 mm |
| Brightness | 5,000 nits |
| LED Configuration | Single SMD, 3-in-1 |
| Ingress Protection | IP65 (front and back) |
| Cabinet Type | Half-Height |
| Cabinet Dimensions | 1,000 x 500 x 85.1 mm |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
What viewing distance suits the 10.41 mm pitch? It is optimized for long-distance outdoor viewing.
Is it weatherproof? Yes, both the front and back are IP65 certified.
What is the cabinet format? A half-height 1,000 x 500 mm cabinet for flexible tiling.
What software is it compatible with? LG SuperSign CMS, LED Assistant, and ConnectedCare.
