LG GSCD100-GN Essential Cabinet Outdoor 10.41MM,5000NIT,3 IN 1,1000X1000X86MM
LG GSCD100-GN Essential Cabinet Outdoor 10.41MM,5000NIT,3 IN 1,1000X1000X86MM is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG GSCD100-GN Essential Cabinet Outdoor 10.41MM,5000NIT,3 IN 1,1000...
Product Overview

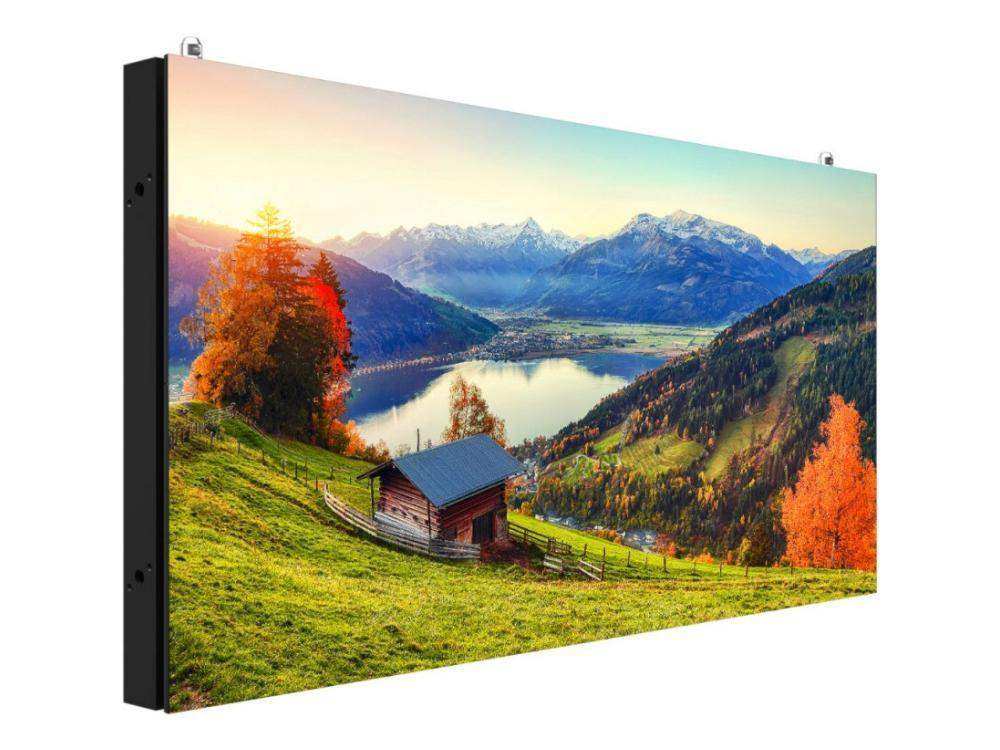

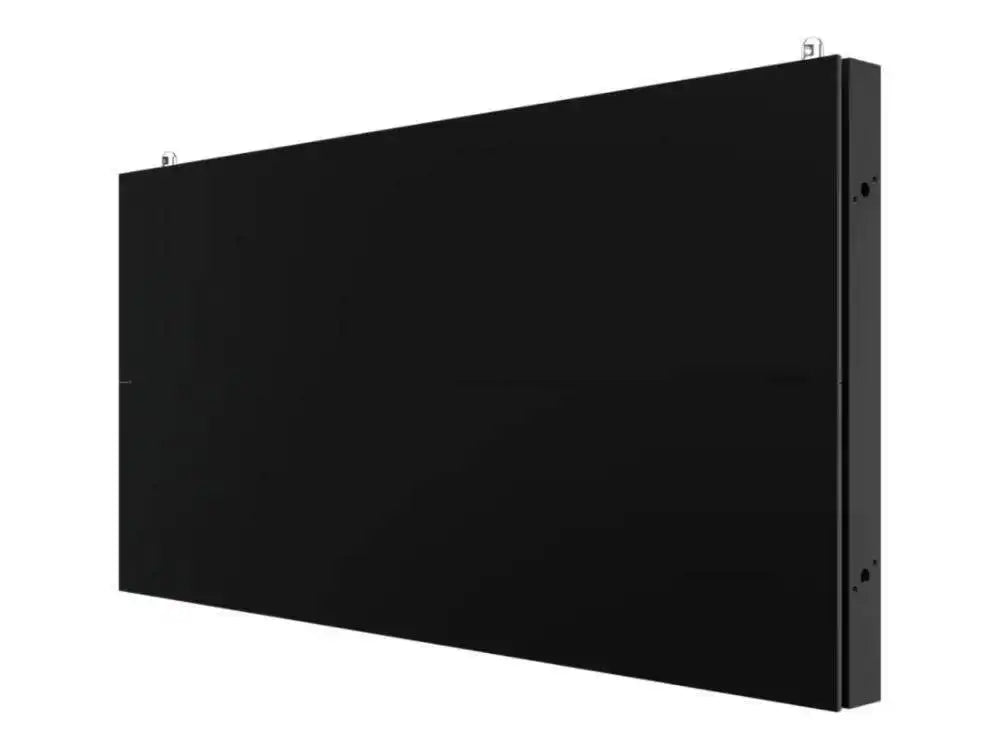

The LG GSCD100-GN is an outdoor direct-view LED cabinet in LG's GSCD Ultra Light series, built around a 10.41 mm pixel pitch and a 5,000-nit brightness rating. It uses a single-SMD 3-in-1 LED package in a standard 1,000 x 1,000 mm cabinet with an IP65-rated weatherproof design. The lightweight build reduces structural load on host buildings. It is engineered for large-format outdoor signage viewed at longer distances.
Product Description
This standard-format cabinet measures 1,000 mm wide by 1,000 mm high at roughly 85.1 mm depth, providing a full-size building block for large outdoor arrays. The 10.41 mm pitch is tuned for the long viewing distances typical of large facades, billboards, and stadium displays, while the 5,000-nit output competes with ambient daylight. LG notes the GSCD cabinets are much lighter than many competing outdoor displays, reducing building load when a large screen is installed. Both the front and back of the cabinet are IP65 certified for stable operation in adverse weather. Attachable power and control units can be removed to simplify field repairs, and the product offers a choice of front or rear serviceability. An optional 90-degree corner design supports right-angled installs, and the series is compatible with LG SuperSign CMS, LED Assistant, and ConnectedCare.
Key Features
- 10.41 mm Pixel Pitch — optimized for long-distance outdoor viewing.
- 5,000-nit Brightness — daylight-readable output for outdoor use.
- IP65 Weatherproof — front and back certified for durability.
- Standard 1 m Cabinet — 1,000 x 1,000 mm building block for large arrays.
- Ultra Light Design — reduces structural load on host buildings.
- Removable Power/Control Units — simplify field maintenance.
- LG Software Compatible — works with SuperSign CMS, LED Assistant, and ConnectedCare.
Typical Applications
The GSCD100-GN suits large building facades, billboards, stadiums, transit hubs, and outdoor plazas viewed at longer distances. Its light weight and IP65 rating make it practical for large rooftop and facade installations.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | GSCD100-GN |
| Series | GSCD Ultra Light (Outdoor DVLED) |
| Pixel Pitch | 10.41 mm |
| Brightness | 5,000 nits |
| LED Configuration | Single SMD, 3-in-1 |
| Ingress Protection | IP65 (front and back) |
| Cabinet Type | Standard |
| Cabinet Dimensions | 1,000 x 1,000 x 85.1 mm |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
What viewing distance suits the 10.41 mm pitch? It is optimized for long-distance outdoor viewing such as large facades and stadiums.
Is it weatherproof? Yes, both the front and back are IP65 certified.
What is the cabinet size? A standard 1,000 x 1,000 mm cabinet.
How is it serviced? Power and control units are removable, with a choice of front or rear access.
