LG GSCA046-GN Essential Cabinet Outdoor 4.63MM,5000NIT,3 IN 1,500X1000X68
LG GSCA046-GN Essential Cabinet Outdoor 4.63MM,5000NIT,3 IN 1,500X1000X68 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG GSCA046-GN Essential Cabinet Outdoor 4.63MM,5000NIT,3 IN 1,500X1...
Product Overview

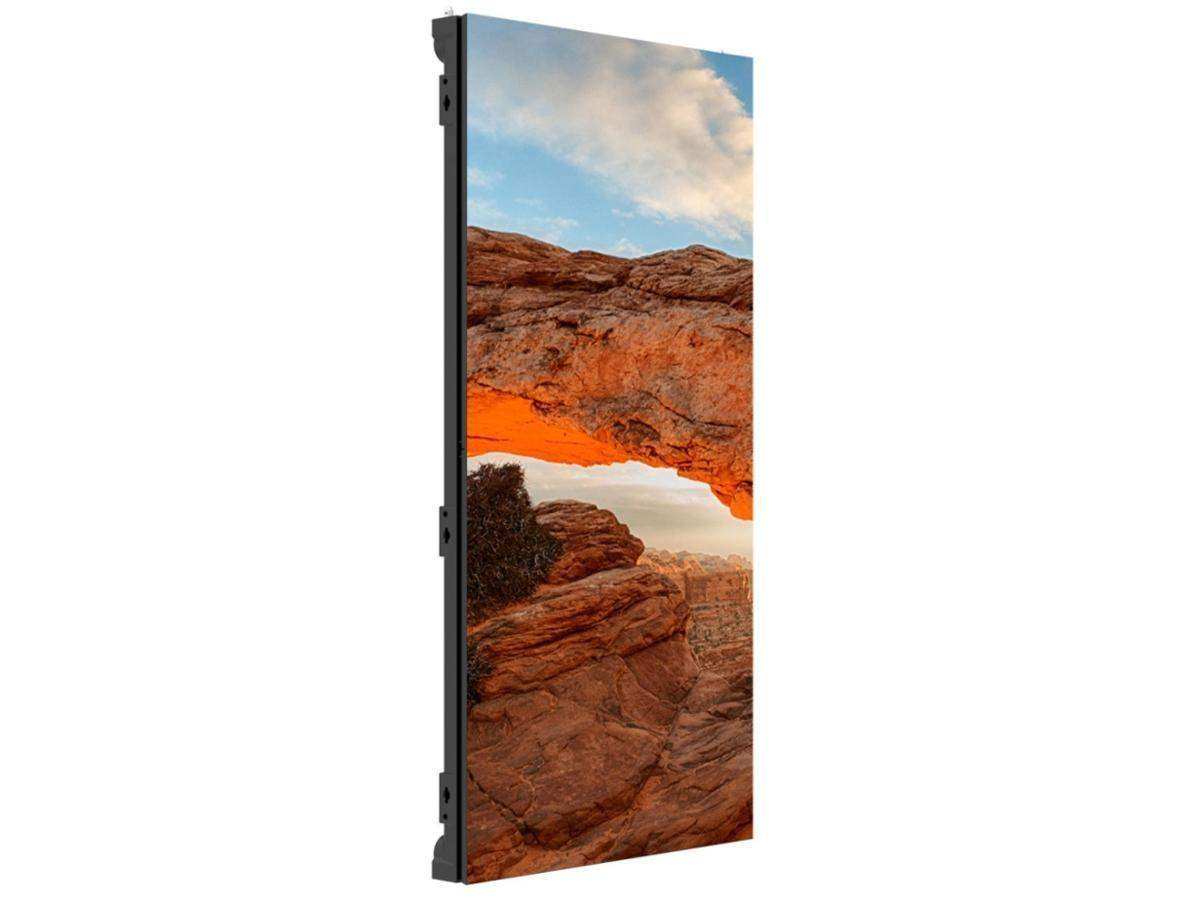

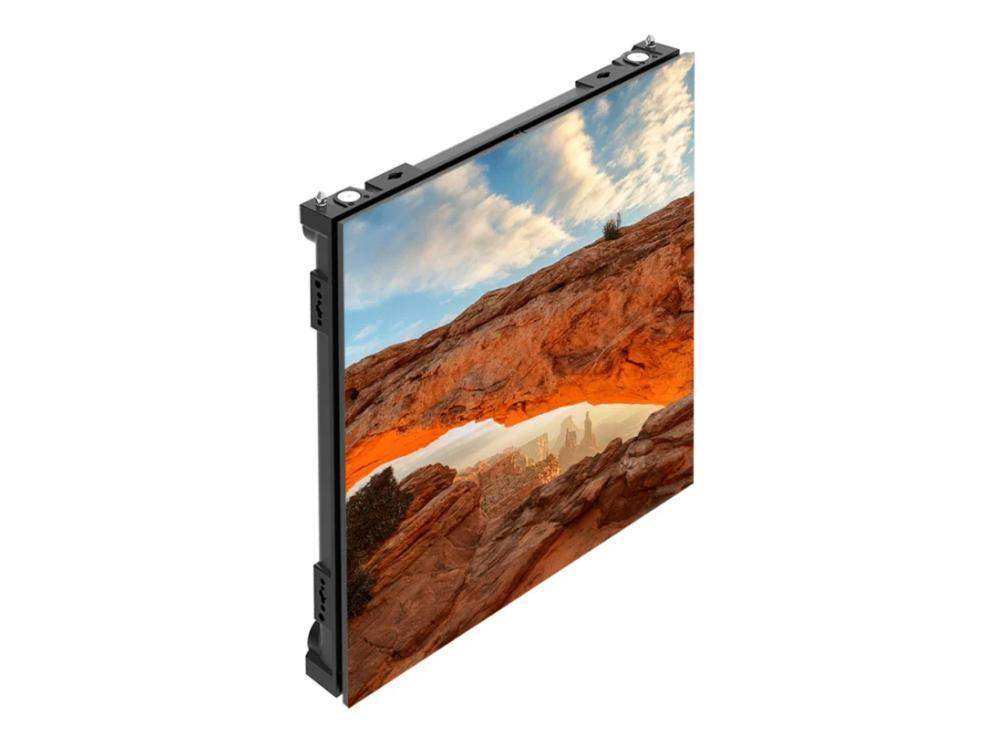

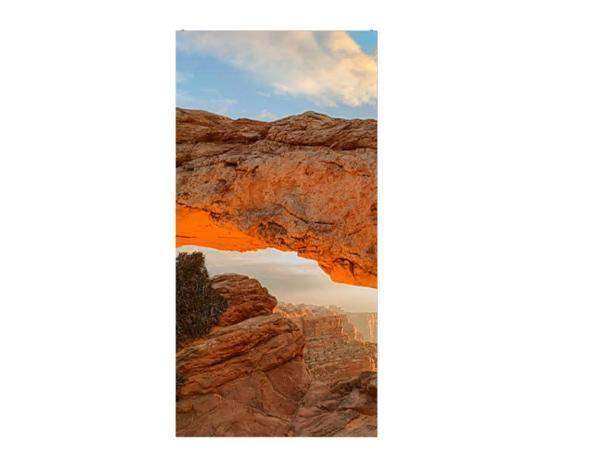

The LG GSCA046-GN is an outdoor cabinet from LG's GSCA Essential series, with a 4.63mm pixel pitch and a single SMD configuration. With 5,000 nit (cd/m²) brightness and an 11,000:1 contrast ratio, it is engineered for sunlight-readable outdoor video walls and emphasizes fast, tool-less installation and maintenance. Each standard cabinet measures 500 x 1,000 x 67.2mm and is a building block for larger outdoor displays.
Product Description

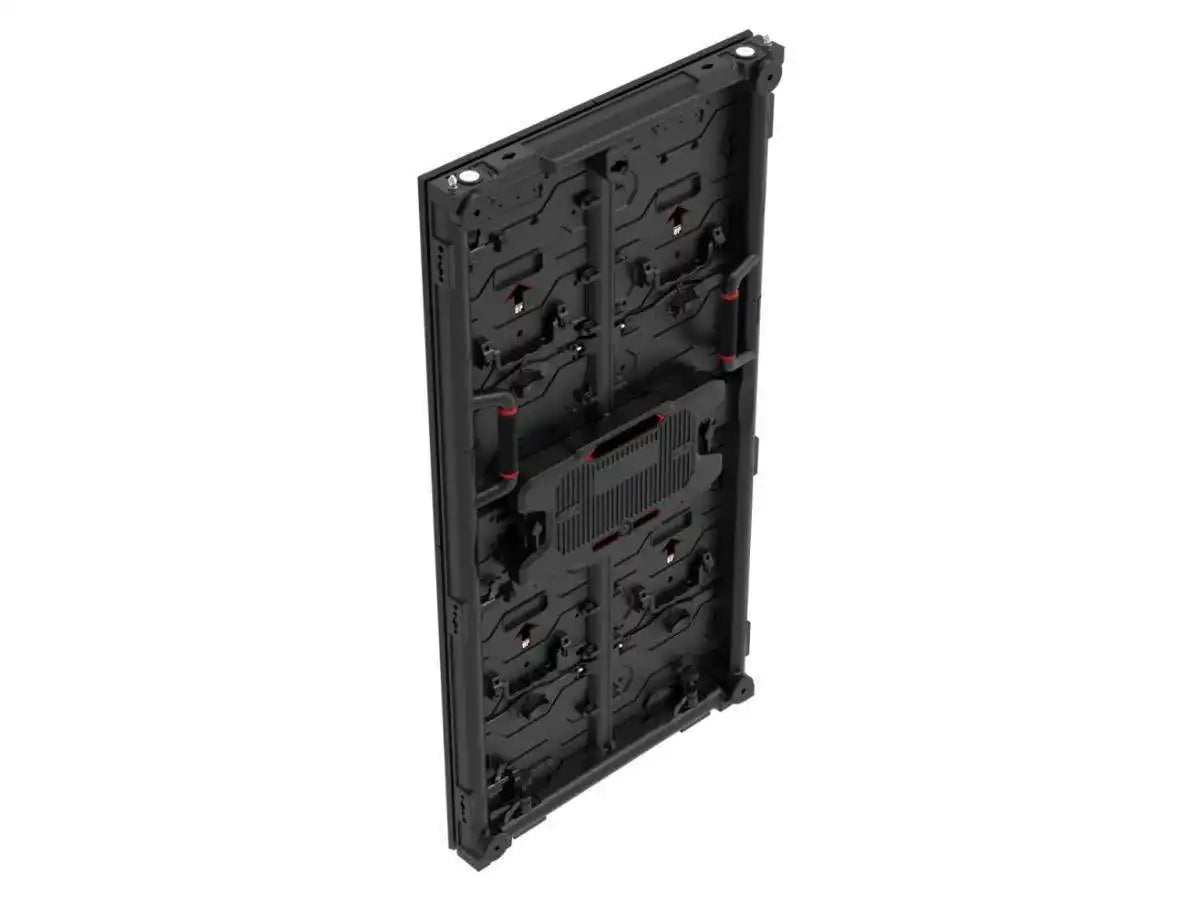

The GSCA046-GN uses magnets on the top and bottom, positioning pins, handles, and fast locks so installers can set up and dismantle the LED screen without additional tools. Its lock-fixing maintenance method requires no extra tools to replace LED modules or power and data units, reducing service cost and time. At 5,000 cd/m² it stays legible under direct sunlight, with a single-SMD package at a 4.63mm pitch suited to medium-to-long outdoor viewing distances and a high 11,000:1 contrast ratio. The 500 x 1,000mm standard cabinet allows displays to be assembled to the required size from multiple cabinets. This cabinet serves as a tile within a larger outdoor LED wall rather than as a standalone screen.
Key Features
- 4.63mm Pixel Pitch — Single SMD for medium-to-long outdoor viewing distances.
- 5,000 cd/m² Brightness — Sunlight-readable in direct outdoor light.
- 11,000:1 Contrast Ratio — High contrast for outdoor content.
- Tool-less Installation — Magnets, positioning pins, handles, and fast locks.
- Lock-Fixing Maintenance — Replace modules and power/data units without extra tools.
- 500 x 1,000mm Standard Cabinet — Footprint for predictable wall layouts.
Typical Applications
As a high-brightness outdoor cabinet, the GSCA046-GN builds video walls for building facades, stadiums and arenas, transit hubs, outdoor plazas, and commercial signage where sunlight readability and fast servicing are required.
Technical Specifications
| Specification | Value |
|---|---|
| Model | GSCA046-GN |
| Type | Outdoor LED (DVLED) |
| Pixel Pitch | 4.63 mm |
| Pixel Configuration | Single SMD |
| Brightness | 5,000 cd/m² |
| Contrast Ratio | 11,000:1 |
| Cabinet Dimensions | 500 x 1,000 x 67.2 mm |
| Cabinet Format | Standard |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
How is it installed? With magnets, positioning pins, handles, and fast locks, so no additional tools are required.
How is it serviced? A lock-fixing method lets installers replace LED modules and power/data units without extra tools.
How bright is it? 5,000 cd/m², readable in direct sunlight, with an 11,000:1 contrast ratio.
Is this a complete display? No, it tiles with other GSCA cabinets to build an outdoor wall.
