LG Fine-pitch Essential LSBB018-GD Digital Signage Display - LCD - Video Wall Panel

Product Overview

The LG LSBB018-GD is a fine-pitch Essential-series indoor LED signage cabinet for assembling video walls, including 3x3 configurations. It delivers a 600-nit brightness with HDR support and a 320 x 180 cabinet resolution. Front serviceability and X/Y/Z 6-axis panel adjustment simplify installation and flatness alignment. Signal-detection status indicators on the cabinet frame aid commissioning and maintenance.

Product Description

This LSBB-series cabinet carries a 320 x 180 resolution on an LCD-class direct-view LED panel rated at 600 nits with HDR support. A uniform tool handles X/Y/Z 6-axis adjustment between panels, and modules adjust in the Z-direction to deliver a distortion-free image across the wall. Signal-detection status indicators and a check button sit in the main frame, accessible from both the front and rear for convenient diagnostics. Front access reduces the need to reach the unit from behind, easing maintenance in tight installations. As an Essential-series cabinet, it is positioned as a value building block for indoor walls; detailed electrical and dimensional values vary by configuration and should be confirmed with Creation Networks for a specific project.

Key Features

• Fine-pitch Essential series — value-oriented building block for indoor video walls.
• 320 x 180 cabinet resolution — tiles into 3x3 and larger wall layouts.
• 600-nit brightness with HDR — indoor output with high-dynamic-range support.

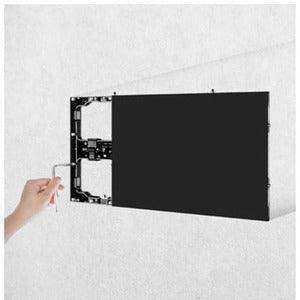

• X/Y/Z 6-axis adjustment — uniform tool aligns panels for a distortion-free image.
• Z-direction alignment — fine flatness control across the wall surface.

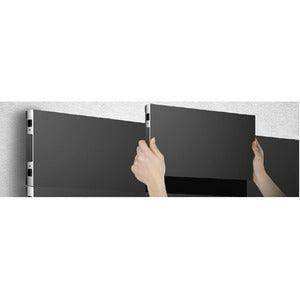

• Front serviceability — reduces the need for rear access during maintenance.

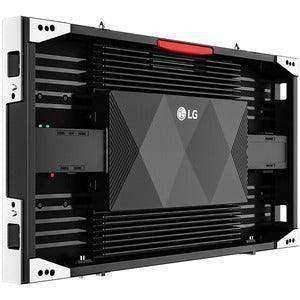

• Signal status indicators — front- and rear-accessible diagnostics on the frame.

Typical Applications

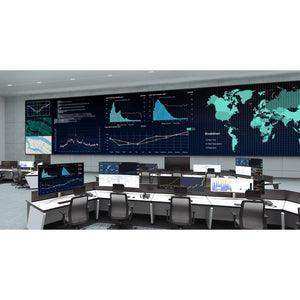

The LSBB018-GD is a building block for indoor LED video walls in corporate lobbies, retail spaces, meeting rooms, and control rooms, well suited to 3x3 and larger tiled layouts. Its HDR support and fine pitch make it appropriate for branded interior displays and presentation walls, while front serviceability suits installs with limited rear clearance.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

Can it build a 3x3 video wall?
Yes. The cabinet is designed for tiled video walls including 3x3 and larger layouts.

How are panels aligned?
A uniform tool provides X/Y/Z 6-axis adjustment, with Z-direction control for a distortion-free image.

Can it be serviced from the front?
Yes. Front access reduces the need to reach the unit from behind.

Is it a standalone display?
No. It is a cabinet building block for a larger wall; contact Creation Networks to size a complete configuration.
