LG DVLED LAP020EL6B P2.0 1,000 nits LG LED Curve Series for Indoor

Product Overview

The LG LAPE Series LAP020EL6B is a 2.0 mm pixel-pitch direct-view LED display module engineered for indoor curved and flat video walls. It is part of the LG LED Curve (LAPE) family, which uses a flexible LED Display Module (LDM) supporting true concave and convex curvature down to a 1,000R radius. A 16-bit processing depth and a 3,840 Hz refresh rate deliver smooth, flicker-free motion suitable for on-camera environments. The series ships with a 4K all-in-one system controller and LG's LED Assistant management software.

Product Description

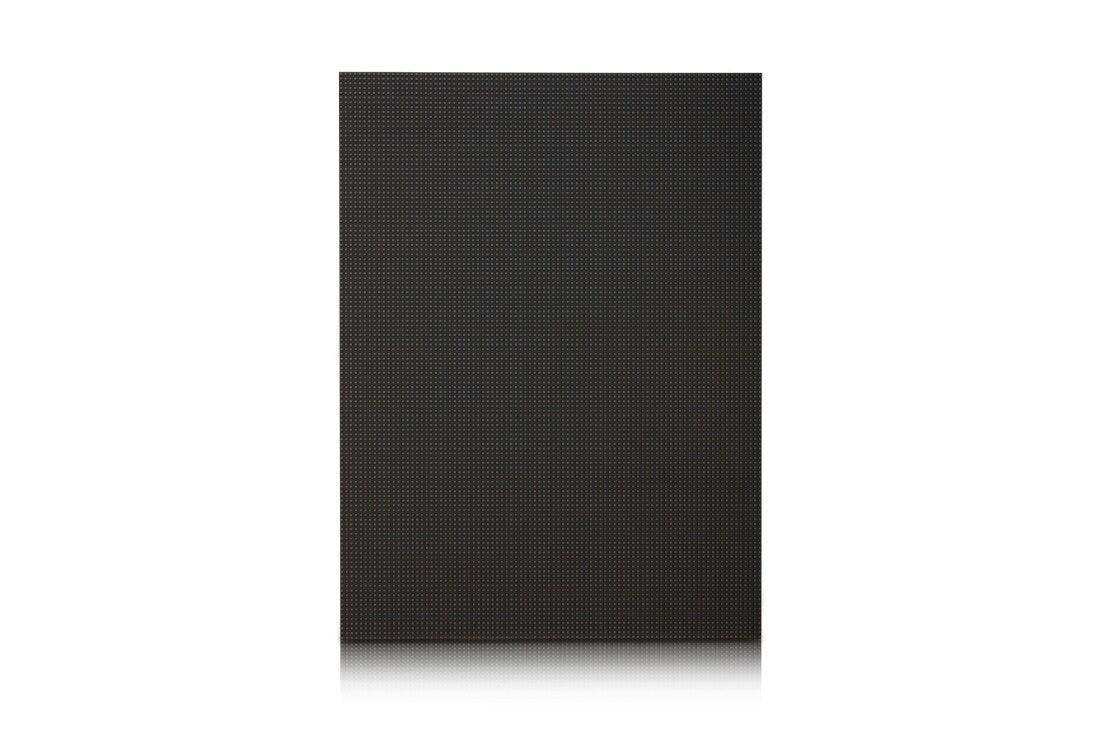

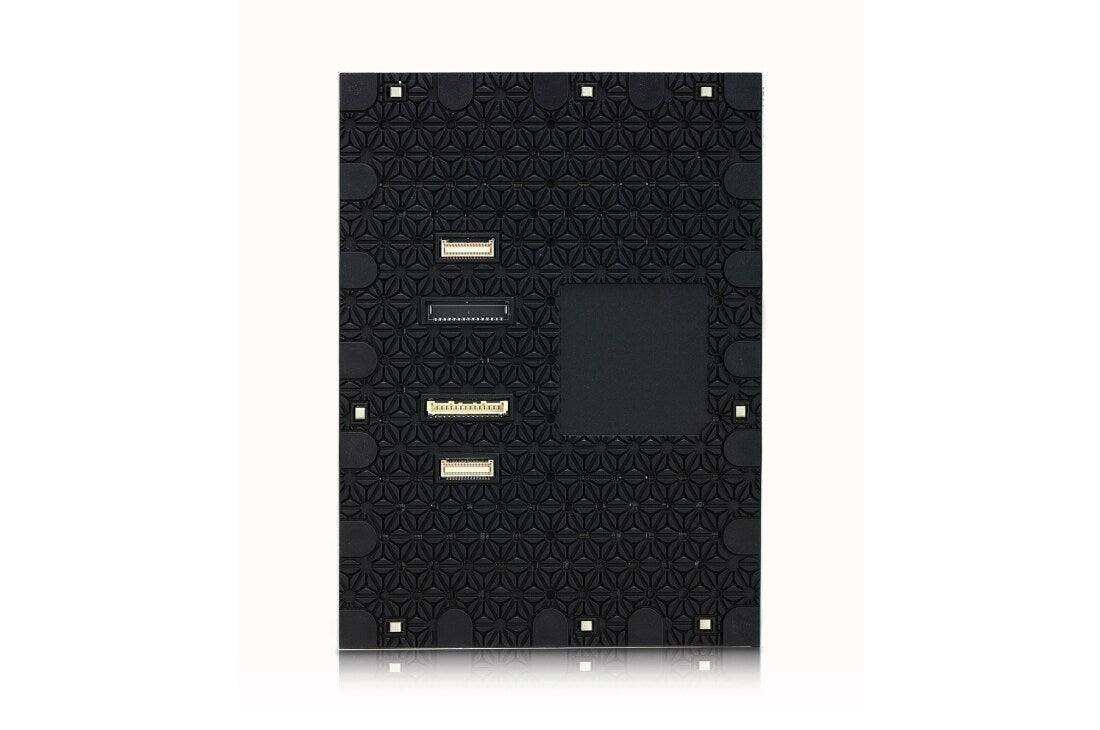

This LAPE module measures 240 x 180 mm with a 120 x 90 module resolution and groups into a 480 x 540 x 40 mm unit case built from die-cast aluminum (2 x 3 modules per case, 240 x 270 case resolution). Physical pixel density is 250,000 pixels per square meter. Calibrated brightness is adjustable from 300 to 1,000 nits with a 6,000:1 contrast ratio, 160-degree horizontal and 140-degree vertical viewing angles, and brightness uniformity at or above 97%. The flexible LDM design enables true curved screens, while front or rear service access and 20 Z-axis alignment points per module support precise flatness alignment during installation. Modular power lets integrators tune brightness against available electrical capacity, and optional signal redundancy adds operational resilience. Power runs on 100 to 240 V with a 50/60 Hz frame rate. LED lifetime to half brightness is rated at 100,000 hours.

Key Features

• 2.0 mm pixel pitch — fine resolution for close-viewing indoor walls and FHD/UHD canvases.
• Flexible LDM to 1,000R — true concave and convex curvature for genuinely curved screens.
• 16-bit processing — higher greyscale fidelity for smooth color transitions without banding.
• 3,840 Hz refresh rate — flicker-free capture for camera and broadcast environments.
• Adjustable 300-1,000 nit brightness — modular PSU count tunes output to the install environment.
• 4K system controller — built-in media player and scaler in a single management platform.

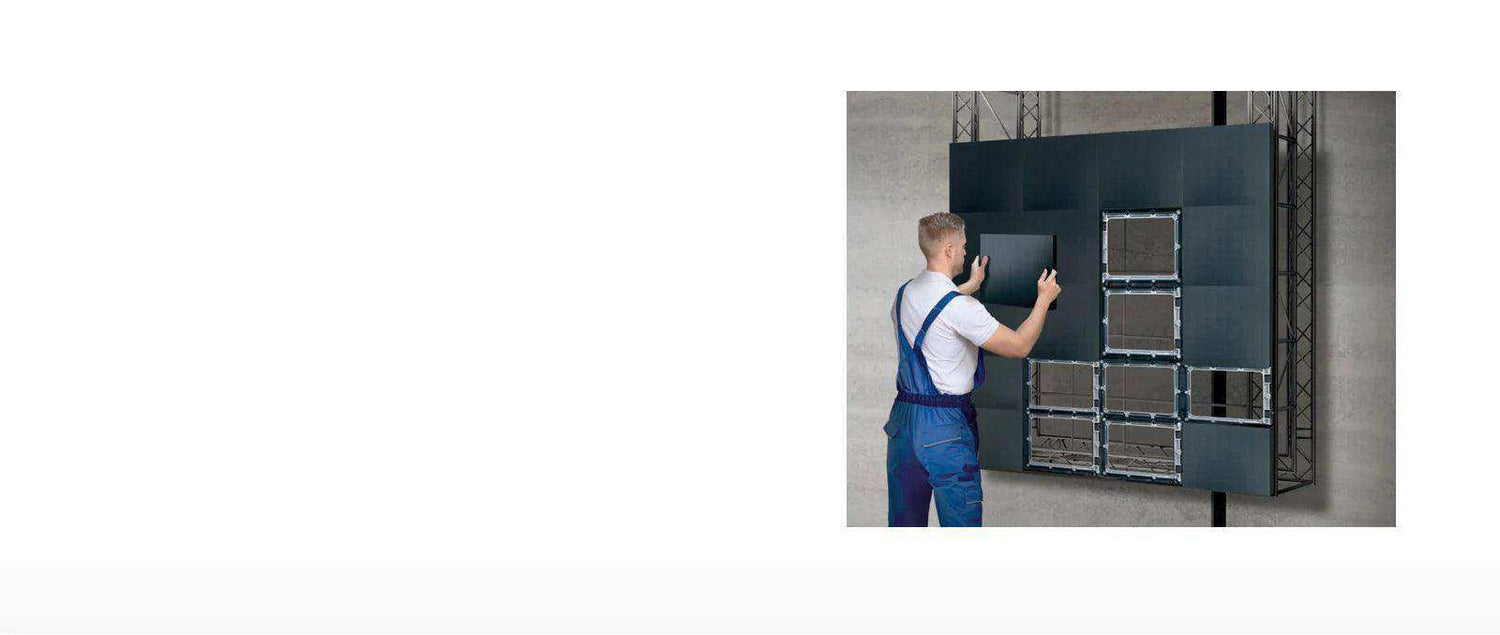

• Front or rear service — LDM-based access simplifies maintenance in tight installations.
• Signal redundancy support — optional redundancy for mission-critical uptime.

Typical Applications

As a building block for indoor LED video walls, the LAP020EL6B suits corporate lobbies, retail flagship interiors, broadcast and control-room backdrops, and experiential spaces where curved geometry is required. The 1,000R curvature capability and flicker-free 3,840 Hz refresh make it well suited to curved feature walls and on-camera studio backgrounds. Its fine 2.0 mm pitch supports close viewing distances typical of lobby and showroom installations.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

How tight a curve can this module form?
The flexible LDM supports true concave and convex curvature down to a 1,000R radius for genuinely curved screens.

Is the brightness fixed?
No. Calibrated brightness is adjustable from 300 to 1,000 nits by customizing the number of power supply units to your electrical capacity.

Can it be serviced from the front?
Yes. The unit case supports front or rear service access, and each LDM has 20 Z-axis points for flatness alignment.

What controller does it use?
The LAPE series uses the LCLG003 4K system controller with a built-in media player and scaler.
