LG CreateBoard Pro 75TR3PN-B 75" UHD 4K Touchscreen Commercial Monitor
LG CreateBoard Pro 75TR3PN-B 75" UHD 4K Touchscreen Commercial Monitor is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG CreateBoard Pro 75TR3PN-B 75" UHD 4K Touchscreen Commercial...
Product Overview

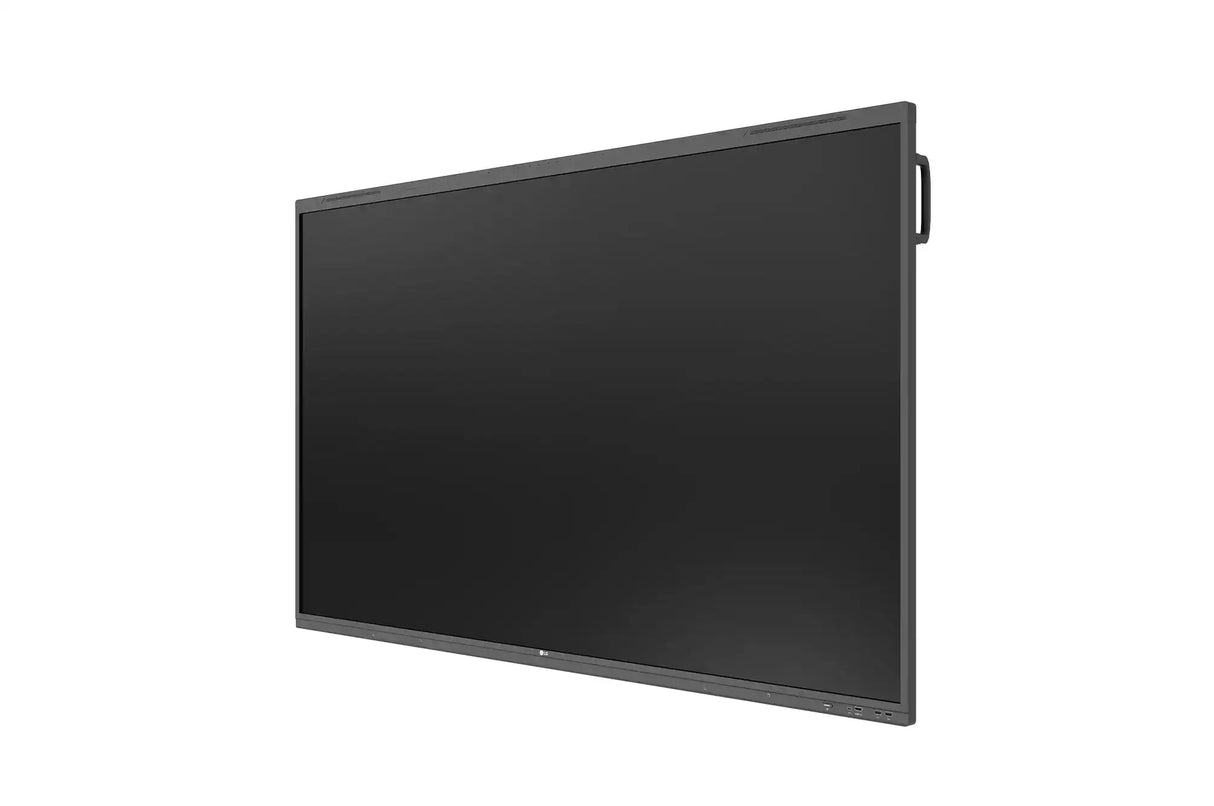

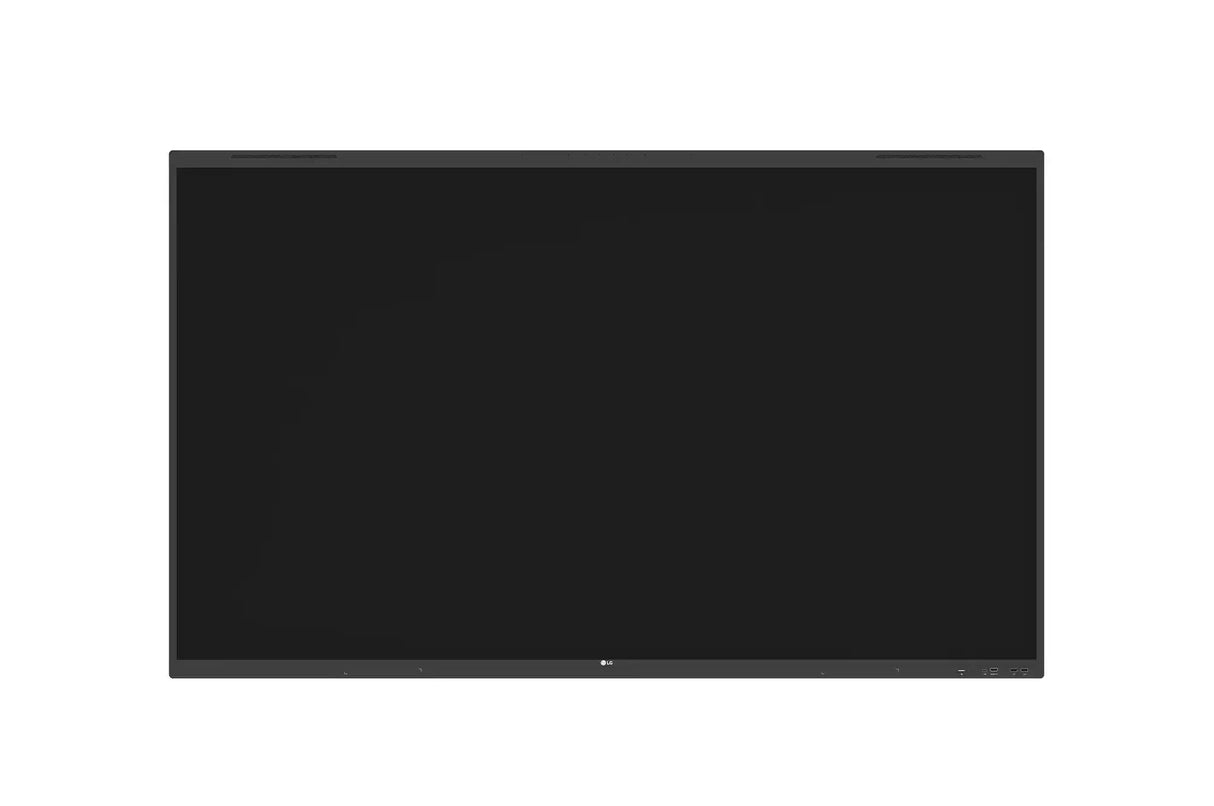

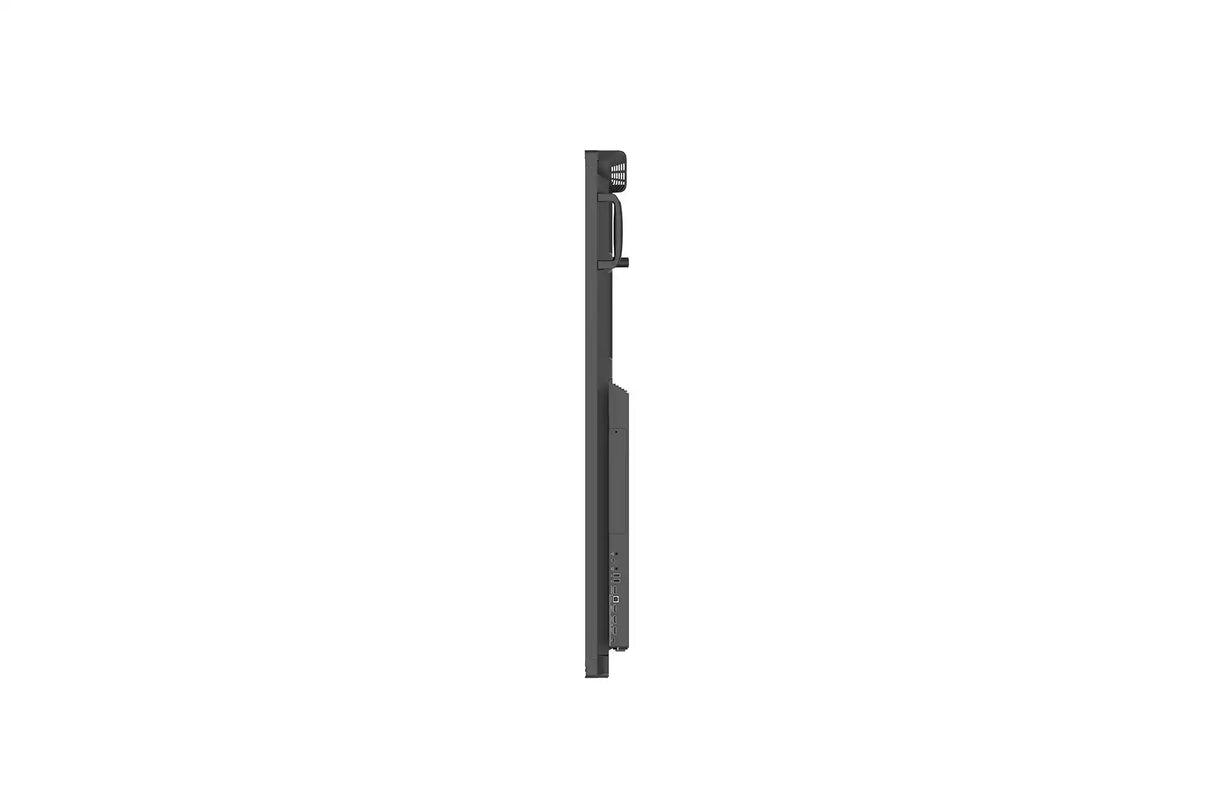

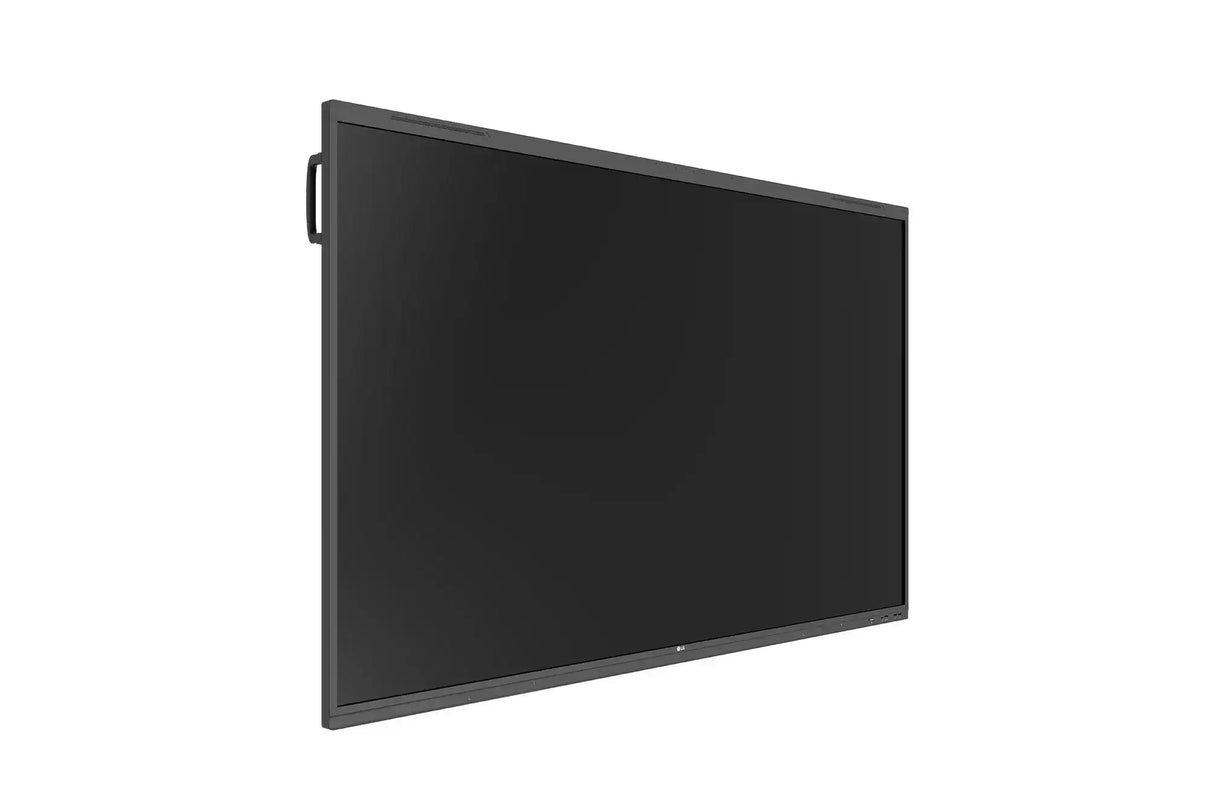

The LG CreateBoard Pro 75TR3PN-B is a 75-inch 4K UHD interactive touch display for collaboration and teaching. It uses an IPS panel with 400-nit brightness and supports up to 50 points of multi-touch with sub-millimeter writing height. The board runs Android 13 (EDLA) with 8 GB RAM and 64 GB storage, plus Wi-Fi 6, Gigabit LAN, and Bluetooth 5.0. An OPS slot, extensive port set, and LG CreateBoard Share enable flexible connection and wireless sharing.
Product Description
This interactive display delivers a 3,840 x 2,160 IPS image at 400 nits with a 178 x 178-degree viewing angle, suited to bright rooms and wide seating. Up to 50 touch points with approximately 1 mm writing height and 2.5 ms touch response support natural writing and multi-user collaboration. The integrated Android 13 system pairs an octa-core CPU, 8 GB RAM, and 64 GB storage to run apps and whiteboarding without an external PC, and the OPS slot accepts an optional Windows module. Connectivity is comprehensive: four HDMI inputs, DisplayPort, two USB-C, multiple USB-A ports, RJ45 LAN, plus HDMI and audio outputs. LG CreateBoard Share enables wireless screen sharing from user devices, and built-in microphones and four speakers (18 W x 2, 8 W x 2) support room audio. LG ConnectedCare provides remote monitoring and management. The board ships with pens, cables, a remote, and a Wi-Fi module, with optional wall mount and floor stands.
Key Features
- 75-inch 4K UHD IPS Panel — 3,840 x 2,160 resolution with wide 178-degree viewing angles.
- 50-Point Multi-Touch — Natural writing and multi-user collaboration with ~1 mm writing height.
- Android 13 (EDLA) — Octa-core CPU, 8 GB RAM, 64 GB storage run apps without an external PC.
- Built-in OPS Slot — Accepts an optional Windows OPS module.
- Extensive Connectivity — 4x HDMI, DisplayPort, 2x USB-C, USB-A, RJ45 LAN, plus outputs.
- LG CreateBoard Share — Wireless screen sharing from user devices.
- Wi-Fi 6 & Bluetooth 5.0 — 802.11ax wireless, Gigabit LAN, Bluetooth peripherals.
- Integrated Audio & Microphones — Four speakers and built-in mics for room-scale audio.
- Auto Brightness Sensor — Adjusts the panel to ambient lighting.
- LG ConnectedCare — Remote monitoring and management for IT teams.
Typical Applications
- Conference rooms and boardrooms.
- Classrooms and lecture halls.
- Corporate training and collaboration spaces.
- Huddle rooms and project rooms.
- Higher-education and corporate learning environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / MPN | 75TR3PN-B |
| Brand | LG Electronics |
| Screen Size | 75 in |
| Panel | IPS, Direct backlight |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Brightness | 400 nits (w/o glass, typ.) |
| Contrast Ratio | 4,000:1 (5,000:1 dynamic) |
| Viewing Angle | 178 x 178 degrees |
| Touch | 50 points (max), USB 2.0, ~1 mm writing height |
| Operating System | Android 13 (EDLA) |
| Processor | Octa-core (A76 x4 + A55 x4), Mali G52MP2 |
| Memory / Storage | 8 GB RAM / 64 GB |
| Inputs | 4x HDMI (HDCP 2.3), DisplayPort, 2x USB-C, 4x USB 3.0, 3x USB 2.0, RS-232C, RJ45 |
| Outputs | HDMI Out, Audio Out, 2x Touch USB, RJ45 |
| Wireless | Wi-Fi 802.11ax, Gigabit LAN, Bluetooth 5.0 |
| Speakers | 18 W x2, 8 W x2 |
| Power | 100-240 V, 210 W typ. / 450 W max. |
| Dimensions (W x H x D) | 1,709 x 1,031 x 86 mm |
| VESA Mount | 800 x 400 mm |
| Included Accessories | Power cord, USB & USB-C cables, HDMI cable, 2 pens, remote, Wi-Fi module, manual |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Does the 75TR3PN-B need an external PC?
No. It runs Android 13 with an octa-core CPU, 8 GB RAM, and 64 GB storage. An optional OPS Windows module can be added.
How many touch points does it support?
Up to 50 points of multi-touch with approximately 1 mm writing height.
Can users share screens wirelessly?
Yes, via LG CreateBoard Share from devices on the same network.
What mounting options are available?
It uses an 800 x 400 mm VESA pattern, with optional wall mount and floor stands. Contact Creation Networks at creationnetworks.net.
