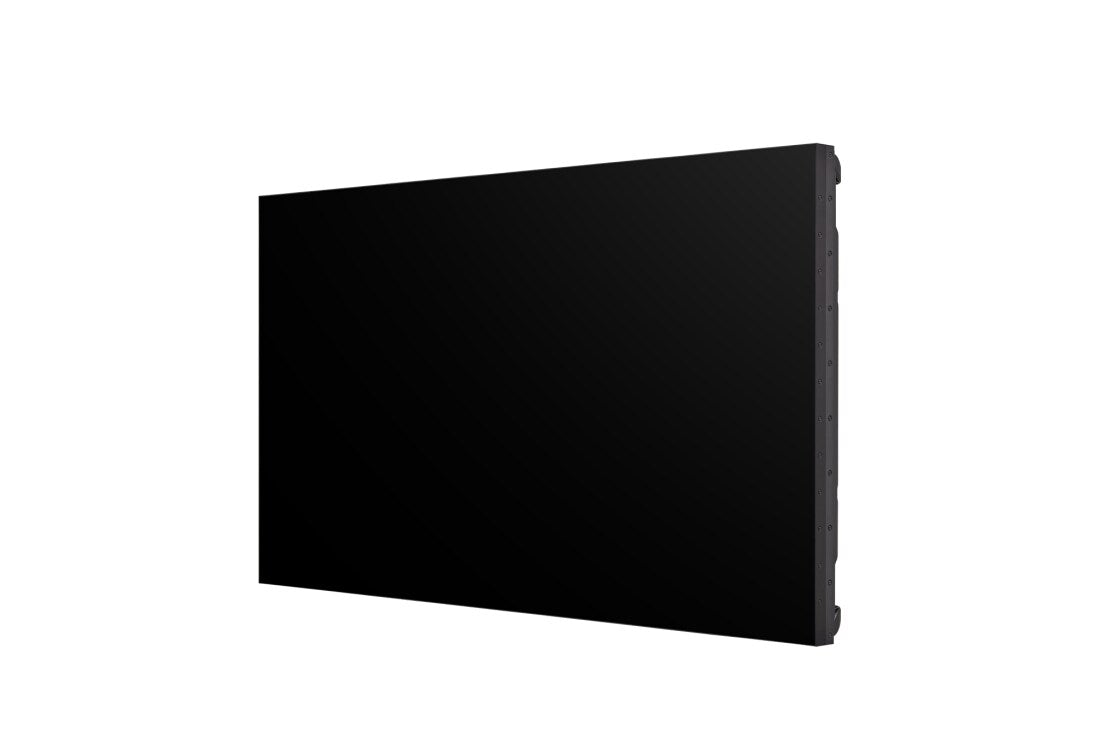

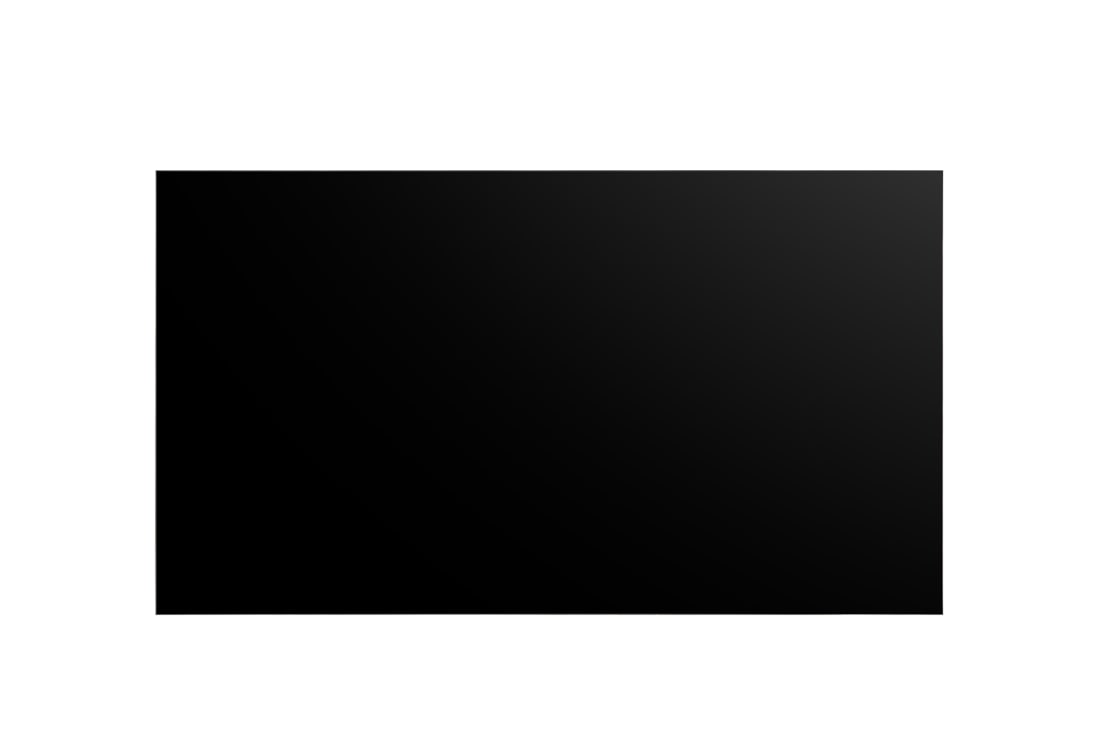

LG 55VM5R-H – 55" FHD Slim Bezel Video Wall Display, 500 nit

What is the LG 55VM5R-H video wall?

The LG 55VM5R-H is a 55-inch Full HD video wall display from LG's VM5R slim-bezel series, built to tile into seamless multi-screen walls for lobbies, control rooms, retail and briefing centers. Each panel delivers 500 nits with a 1.7 mm bezel-to-bezel gap.

How does the LG 55VM5R-H work?

The ultra-slim 1.7 mm bezel-to-bezel gap cuts bezel interference for a near-seamless image across a tiled wall, and LG's image improvement algorithm synchronizes fast-moving video across panels so objects crossing bezel lines stay aligned. Wide viewing angles keep color accurate even when the wall is mounted above eye level.

White balance can be tuned precisely by adjusting individual R/G/B values or the IRE scale. LG webOS 6.1 handles multitasking on the display, conformal coating on the power board protects against salt, dust, iron powder and humidity, and Shock Monitoring adds reliability. Optional LG ConnectedCare provides remote cloud monitoring, and UHD daisy chaining over HDMI and DisplayPort builds a UHD wall without DisplayPort MST.

What are the key features of the LG 55VM5R-H?

• 1.7 mm bezel-to-bezel — near-seamless tiled image.
• 500-nit brightness — clear in lobbies and control rooms.
• Image improvement algorithm — syncs fast motion across panels.
• R/G/B and IRE white balance — precise color matching across the wall.
• LG webOS 6.1 — on-display multitasking and content playback.
• Conformal coating and Shock Monitoring — durability in demanding environments.
• UHD daisy chain — HDMI/DisplayPort loop-through without MST.
• EMC Class B — certified for commercial and residential environments.

Where is the LG 55VM5R-H typically used?

• Commercial meeting space
• Government space
• Auditorium
• Broadcast studio
• Boardroom

Technical Specifications

Specifications from LG. Power, weight and ports are confirmed from LG's spec sheet on your quote.

Frequently Asked Questions

What size wall can I build with the 55VM5R-H? A 2x2 wall gives about a 110-inch image and a 3x3 about 165 inches. We size the array to the room and viewing distance.

What else does a video wall need? A video wall mount, signal distribution or a video wall processor, and control. Creation Networks designs and installs the complete system.

Can the LG 55VM5R-H integrate with room control? Yes. Creation Networks integrates LG commercial displays with Crestron, Extron and Q-SYS control. See all LG commercial displays and LED video walls.

Do you install LG displays? Yes. Creation Networks is a CTS-D certified integrator with 5,000+ AV systems installed nationwide since 2006.

Is government or volume pricing available? Yes. Call 888.230.3661 or email sales@creationnetworks.net.

Questions? Call 888.230.3661 or email sales@creationnetworks.net.
