LG 55UH5N-E – 55-inch 500-nit UHD Signage Display

Product Overview

The LG 55UH5N-E is a 55-inch UHD signage display engineered for 24/7 commercial deployment in demanding indoor environments. Its 500-nit IPS panel with 28% haze stays legible under bright ambient lighting, while webOS 6.0 runs content directly on the display without a separate media player. A conformal-coated power board and IP5X dust-proof rating give this commercial-grade digital signage display added resilience against dust and humidity. Crestron and Cisco certification let integrators fold it into managed AV control and conferencing systems.

Product Description

Built for retail, transportation, and corporate signage, this UHD digital signage display pairs a 3,840 x 2,160 IPS panel with 178-degree viewing angles and 10-bit color for vivid, distortion-free content. The webOS 6.0 System on Chip with 16 GB of internal memory supports gapless playback, local content scheduling, and SuperSign CMS for centralized content management across a display fleet. For integration projects, the display offers three HDMI inputs (HDCP 2.2), DisplayPort, an HDMI loop-out, and HDMI/DisplayPort daisy chaining for multi-screen layouts, plus a tile mode supporting arrays up to 15 x 15. Security-conscious deployments benefit from LG Enhanced Kernel Protection and ISO/IEC 15408 Common Criteria EAL2 certification. Portrait and landscape orientation with a -30-degree face-down tilt suits ceiling-hung and overhead installations. For comparable commercial signage and monitor options, see the 65-inch UM5N-E commercial monitor and the brighter 65-inch UH7N-E 700-nit display.

Key Features

• 500-Nit IPS UHD Panel — The 3,840 x 2,160 IPS panel with 28% haze and 178-degree viewing angles keeps content clear under bright indoor lighting and across wide audiences.
• 24/7 Commercial Duty Cycle — Rated for continuous 24-hour, 7-day operation with a panel lifetime up to 50,000 hours for always-on signage.
• webOS 6.0 System on Chip — The built-in SoC with 16 GB storage plays scheduled content without an external media player and supports webOS partner apps.
• Conformal Coating and IP5X Rating — A coated power board and IP5X dust-proof certification reduce the risk of performance loss from dust and humidity.
• AV Integration and Daisy Chaining — Three HDMI inputs, DisplayPort, HDMI loop-out, and daisy chaining simplify multi-display and video wall integration up to a 15 x 15 tile array.
• Crestron and Cisco Certified — Certified compatibility allows control through Crestron systems and integration with Cisco conferencing environments.
• Enhanced Security — LG Enhanced Kernel Protection and Common Criteria EAL2 certification protect signage data in networked deployments.

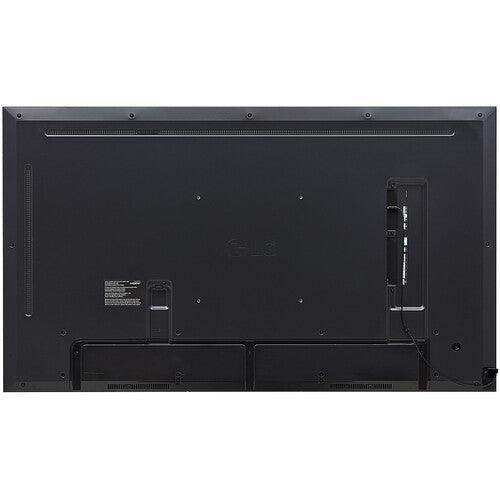

• Flexible Mounting — Portrait and landscape orientation with a -30-degree face-down tilt and 300 x 300 mm VESA pattern suits overhead and wall installations.

Typical Applications

• Commercial meeting space — Centrally scheduled signage and messaging managed through SuperSign CMS.
• Government space — Secure, networked wayfinding and information signage with EAL2 certification.
• Training room — 4K content playback with portrait or landscape orientation.
• Conference room — Crestron-controlled source display with Cisco conferencing compatibility.
• Multi-purpose room — Reconfigurable signage and presentation across changing layouts.

Technical Specifications

Frequently Asked Questions

Does the 55UH5N-E require an external media player?
No. The webOS 6.0 System on Chip with 16 GB of storage plays scheduled signage content on its own, though it also accepts external sources over HDMI and DisplayPort.

Can it run continuously for digital signage?
Yes. It is rated for 24/7 operation with a panel lifetime up to 50,000 hours, and the conformal-coated power board with IP5X rating improves durability in dusty environments.

How does it integrate with AV control systems?
The display is Crestron Certified and Cisco Certified, and supports RS-232C, LAN control, SNMP, and HDMI-CEC for integration into managed AV systems.

Can it be used in a video wall or tiled layout?
Yes. It supports HDMI and DisplayPort daisy chaining and a tile mode up to a 15 x 15 array, though dedicated video wall models offer narrower bezels for seamless arrays.

What security features does it offer for networked deployments?
It includes LG Enhanced Kernel Protection and ISO/IEC 15408 Common Criteria EAL2 certification. Contact Creation Networks for deployment, mounting, and extended warranty support.
