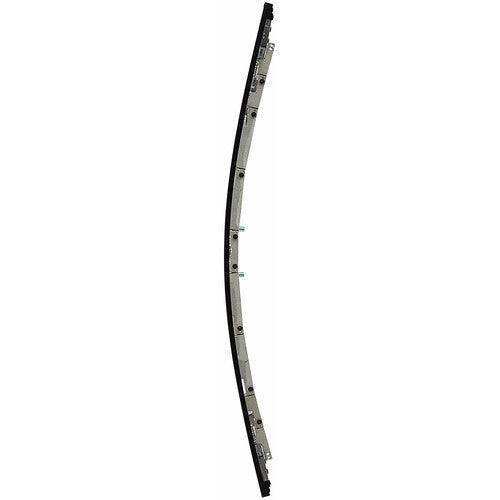

LG 55EF5K-P – 55-inch Curved OLED Video Wall Portrait

Product Overview

The LG 55EF5K-P is a 55-inch flexible curved OLED video wall monitor configured for portrait orientation, built for signature commercial installations. Its open-frame OLED panel can be shaped into concave or convex curves using the LG Curvature Calibrator (sold separately), making this flexible OLED signage display suited to architectural feature walls and high-end retail. As an FHD open-frame signage panel, it combines self-emissive OLED image quality with a slim, lightweight build for creative deployments.

Product Description

The 55EF5K-P is aimed at integrators and AV designers building curved OLED video wall landmarks. Because OLED is self-emissive, the panel needs no backlight unit or liquid crystal layer, which keeps it lightweight and slim enough to tile horizontally and vertically into larger curved structures. Over eight million self-lighting pixels reproduce deep blacks with no light bleed, and the open-frame design supports on-site curvature changes via the LG Curvature Calibrator. For management, a LAN daisy chain lets integrators control displays, transmit data, and push firmware updates across the array at once, while a built-in high-performance SoC drives synchronized video-wall playlist playback. Inputs include one HDMI, two DisplayPort, and one DVI-D for source flexibility. A landscape-oriented counterpart is available as the 55EF5K-L.

Key Features

• Flexible Curved OLED — The open-frame OLED panel bends into concave or convex curves with the LG Curvature Calibrator for architectural feature installations.
• Self-Emissive OLED Image — Over eight million individually lit pixels reproduce deep blacks with no light bleed for high-contrast content.
• Lightweight Open-Frame Build — With no backlight or liquid crystal layer, the panel is slim and light enough to tile into larger curved structures.
• Portrait Orientation — Factory-configured for portrait mounting, fitting columns, pillars, and vertical feature walls.
• LAN Daisy Chain Management — A LAN daisy chain controls displays, transmits data, and updates firmware across the array in one operation.
• Synchronized Playback — A built-in high-performance SoC drives video-wall playlist and synchronized content playback across tiles.
• Flexible Inputs — One HDMI, two DisplayPort, and one DVI-D input support varied source and signal routing in an AV system.

Typical Applications

• Commercial meeting space
• Auditorium
• Broadcast studio
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

Is the curvature adjustable on site?
Yes. The open-frame design supports concave and convex curvature set on site using the LG Curvature Calibrator, which is sold separately and recommended for accurate, repeatable shaping.

Can multiple units be tiled and synchronized?
Yes. The built-in SoC supports video-wall playlist and synchronized playback, and a LAN daisy chain manages control, data, and firmware across the array.

What sources can drive the display?
It accepts HDMI, DisplayPort (x2), and DVI-D inputs, which covers most signage players, controllers, and video-wall processors used in commercial integration.

What warranty and support apply?
This is a commercial OLED signage product with a commercial warranty distinct from consumer OLED TVs. Confirm current coverage, installation guidance, and curvature accessory availability with Creation Networks.
