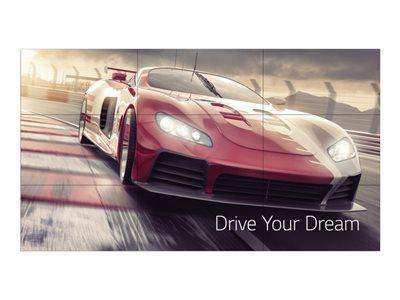

LG 49VM5EW-9P 3x3 VM5E Series LED-backlit LCD video wall Bundle

LG Electronics SKU: 49VM5EW-9P
No reviews

Sale price$25,500.00


Other video walls are unable to sufficiently display content due to low visibility under bright lighting. LG's high brightness video wall stands out against such backgrounds, with a high luminance of 1,500 cd/?. It delivers advertisements clearly under the brightest lights. The ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.
Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VX1D delivers the best picture quality from any viewer position. LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the VX1D generates high visibility and a consistent brightness across the whole screen.
Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Included Cables & Mounts*

9x DVI or DisplayPort for Video Signal
9x  RS232C for Control Signal
9x Power cords
Pull-Out Mount for Quick Installation and Maintenance
9x Peerless Video Wall Mounts
Connector Type 2 x HDMI input ¦ DisplayPort input ¦ DVI-D input ¦ Audio line-in ¦ USB 2.0 ¦ DisplayPort output ¦ Audio line-out ¦ RS-232C input/output ¦ LAN output ¦ LAN input ¦ Infrared input
Video Wall
Number of Screens 9
Max Number of Screens 225
Configuration 3x3
Included Accessories 9 x Peerless Video Wall Mounts
Cables Included 9 x video cable ¦ 9 x serial cable
Compliant Standards FCC Class A certified, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, KC
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 80%
Product Type LED-backlit LCD video wall
Commercial Use Yes - digital signage
Series VM5E Series
TV Tuner No tuner
TV Tuner Presence No
Sensors Temperature sensor
Video Interface HDMI
HDMI Ports Qty 2 ports
PC Interface DVI, DisplayPort
Modes Portrait mode, landscape mode, Natural Mode, Calibration Mode, Tile Mode
Picture Enhancements Image Gap Reduction
Design Extreme Narrow Bezel
Dimensions Display unit
Width 42.4 in
Depth 3.4 in
Height 23.9 in
Weight 51.15 lbs
Enclosure Color Black
Media Player
USB Port Yes
USB Ports Qty 1
Configuration 8 GB
Operating System webOS
Network & Internet Multimedia
Connectivity LAN
Environmental Standards
ENERGY STAR Certified Yes
ENERGY STAR Version 7.0
Video Wall Display Unit
Resolution 1920 x 1080
Cabinet Diagonal Size 49"
Stands & Mounts
Flat Panel Mount Interface 600 x 400 mm
VESA Compatibility Yes
Power Device Power supply
Input Voltage AC 100-240 V (50/60 Hz)
Video Wall Display Unit Power Consumption (Max) 140 W
Video Wall Display Unit Power Consumption (Typical) 120 W
Features Smart energy saving, WOL (Wake on LAN)
LCD Display Technology IPS
LCD Backlight Technology LED backlight
Coating 3% haze
Image Contrast Ratio 1200:1
Dynamic Contrast Ratio 30000:1
Brightness 500 cd/m²
Viewing Angle 178°
Viewing Angle (Vertical) 178°
Response Time 8 ms
Backlight Life 60,000 hour(s)
Commercial Features HTML5 support, SMART Signage Platform, No Signal image, Embedded Template, Contents Scheduling, Display Power Management (DPM), Open Pluggable Standard (OPS) support, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Signage 365 Care compatible, FailOver
Settings Cloning Capability Yes
Operation Hours / Days 24 / 7
Additional Features Image Sticking Minimization (ISM), Daisy Chain
