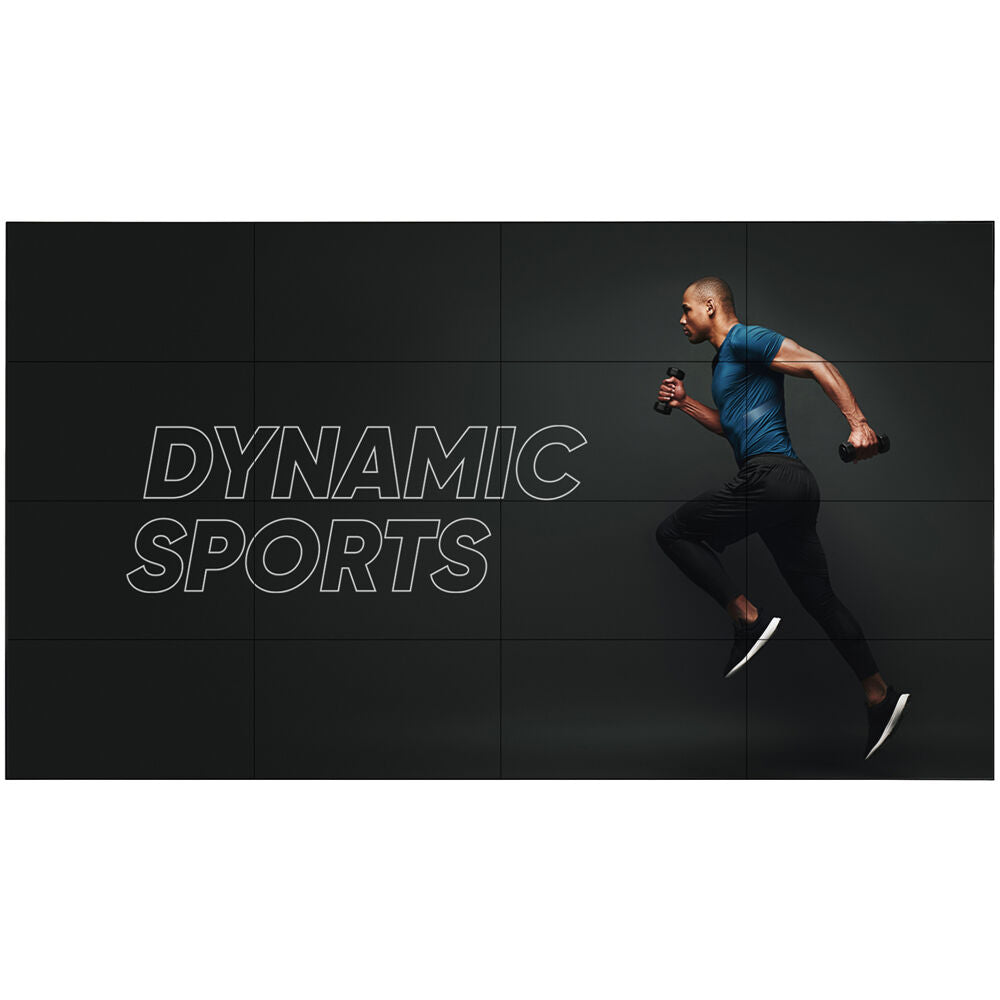

LG 49VL5PJ-A – 49" 1920 x 1080 Multi Vision Video Wall

Product Overview

The LG 49VL5PJ-A is a 49-inch Full HD commercial video wall display designed for tiled multi-panel configurations in retail, corporate, hospitality, and public-space environments. With a 3.5mm ultra-narrow bezel, built-in SoC with webOS smart signage platform, daisy-chain control capability, and LG ConnectedCare remote management support, the 49VL5PJ-A is a complete individual panel for commercial video wall installations. The image gap reduction algorithm, 500-nit brightness, and easy color temperature adjustment make this display a reliable building block for video wall systems of any scale, from a single-panel digital signage display to large tiled arrays. ENERGY STAR certified for energy-efficient commercial operation.

Product Description

The 49VL5PJ-A is LG's individual panel for the VL5PJ video wall series, available as a standalone unit for integrators who need to specify panels individually or build custom video wall configurations beyond the pre-packaged 2x2 and 3x3 options. The 3.5mm ultra-narrow bezel — 2.25mm on the top and left edges, 1.25mm on the bottom and right — creates a minimal visual interruption between adjacent panels in a tiled array. For retail, hospitality, and commercial environments where visual immersion is the design goal, this bezel specification supports large assembled display surfaces that read as continuous imagery rather than individual screens.

The built-in SoC and webOS smart signage platform enable the 49VL5PJ-A to operate independently as a digital signage display or as a panel within a networked video wall managed through LG's commercial platform. The daisy-chain capability supports command distribution — including power control, input selection, and firmware updates — through a chain of panels from a single connection, reducing the cabling and infrastructure requirements for multi-panel installations. The optional LG ConnectedCare service adds remote management, real-time status monitoring, and fault diagnosis for displays that are part of a managed commercial network.

The image gap reduction algorithm processes video content at bezel boundaries, compensating for the physical gap between adjacent panels when content spans multiple displays. This processing is particularly valuable for motion video content and full-array spanning imagery. Color temperature adjustment in 100K increments supports calibration across a multi-panel array, ensuring consistent color rendering from panel to panel. At 500 nits of brightness, the display maintains visibility in commercially lit environments. The 49VL5PJ-A is ENERGY STAR certified, supporting sustainability requirements for commercial installations.

Key Features

• Daisy-Chain Capability — Distribute power, control, and firmware update commands through the panel chain from a single connection point, reducing installation complexity.
• 3.5mm Ultra-Narrow Bezel — Minimizes inter-panel gap for a near-seamless assembled video wall surface in commercial tiled configurations.
• Image Gap Reduction — Content processing at bezel boundaries compensates for panel-to-panel gaps in video and motion content spanning the display array.
• Built-in SoC with webOS — Integrated smart signage platform supports independent digital signage operation and networked video wall management.
• LG ConnectedCare Ready — Optional remote monitoring, fault diagnosis, and control management for networked commercial display deployments.
• Easy Color Adjustment — 100K increment color temperature control via remote supports consistent calibration across multi-panel arrays.
• 500 Nit Brightness — Maintains commercial display visibility in ambient-light environments.
• ENERGY STAR Certified — Meets energy efficiency requirements for commercial and government installations.

Typical Applications

• Retail digital signage and feature display wall
• Corporate lobby and reception video wall
• Conference room video wall
• Hospitality venue digital signage
• Command center multi-panel display
• Transportation hub information display
• Government public information display
• House of worship media wall

Technical Specifications

Frequently Asked Questions

Is the 49VL5PJ-A the same panel used in the 49VL5PJ-4P and 49VL5PJ-9P packages?

Yes. The 49VL5PJ-A is the individual panel component used in both the 2x2 (49VL5PJ-4P) and 3x3 (49VL5PJ-9P) package configurations. Ordering individual panels allows custom array sizes and field replacement procurement.

What mounting hardware is compatible with the 49VL5PJ-A?

The 49VL5PJ-A uses standard VESA mounting patterns and is compatible with Peerless and other commercial video wall mount systems. Contact Creation Networks for compatible mount recommendations based on your specific installation configuration.

Can this panel be used in portrait orientation?

Portrait installation is possible with appropriate mounting hardware. Confirm orientation support and any content processing implications with Creation Networks before finalizing your installation design.

What is the maximum number of panels that can be connected in a daisy chain?

Daisy-chain limits depend on the specific signal type and cable quality. Refer to LG's commercial installation guide for the 49VL5PJ-A, or contact Creation Networks for guidance specific to your planned configuration.

Does this display support RS-232 control for integration with a commercial AV control system?

Yes. The 49VL5PJ-A includes RS-232 and RJ45 (IP control) interfaces, both of which are compatible with commercial AV control platforms including Crestron, AMX, and Extron.
