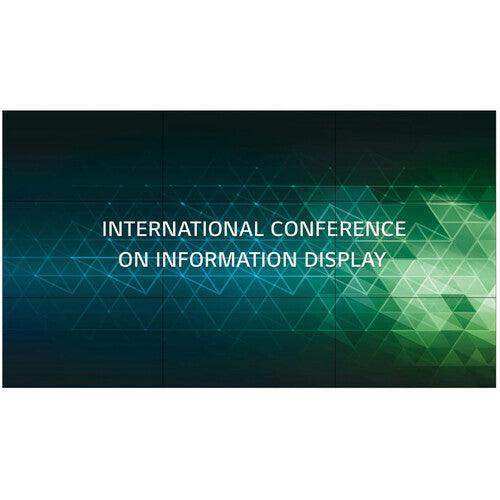

Bring large and seamless messaging to your audience with the VH7J-H Series 55" Class Full HD 3x3 Video Wall Bundle from LG. Designed for fluid and immersive imaging, the VH7J-H series boasts a narrow bezel design measuring just 0.07" from bezel to bezel. Plus, an image gap reduction algorithm reduces gaps between tiled displays for seamless views. A 700 cd/m² brightness enables clear and bright messaging. Connect to hosts and other components via a DVI-D, two DisplayPort, and two HDMI interfaces, as well as connectors for USB, RS232C, RJ45, 3.5mm audio, and IR. This video wall monitor runs on webOS 4.1 and is compatible with OPS media players via the LG KT-OPSF kit, available separately.
Features
- 8GB of internal memory
- Built-in Wi-Fi
- Temperature, BLU, and acceleration (gyro) sensor
- Local key operation
- webOS 4.1
- Embedded CMS with local content scheduling and group manager
- USB plug and play
- Fail over support
- Background image for no signal image
- Sync mode via RS-232C or local network
- Screen share
- Four-way video tag
- Play via URL
- Screen rotation and external input rotation
- Gapless playback
- Tile mode setting up to 15 x 15
- Setting data cloning
- SNMP, ISM method, auto set ID, status mailing, and control manager
- Compatible with third-party control systems including Crestron Connected
- Smart power settings including smart energy saving, PM mode, Wake on LAN, and network ready
- Beacon, HDMI-CEC, SI server setting, webRTC, and Pro:Idiom support
- W/B setting by grayscale and scan inversion
Specs
| Display Size |
55"
|
| Resolution |
1920 x 1080
|
| Maximum Brightness |
700 nits / cd/m2
|
| Inputs |
2 x HDMI
1 x DisplayPort
1 x DVI-D
1 x 1/8" / 3.5 mm
|
| Outputs |
1 x DisplayPort
1 x 1/8" / 3.5 mm (Analog Audio)
|
| USB I/O |
1 x USB-A 2.0
|
| Ethernet I/O |
2 x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1 x DE-9/DB-9 Serial (RS-232C) Control
1 x 1/8" / 3.5 mm IR Input
|
| Built-In Speakers |
No
|
| Media Card Reader |
None
|
Display
| Display Size |
55"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Resolution |
1920 x 1080
|
| Maximum Brightness |
700 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Dynamic Contrast Ratio |
500,000:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| Color Gamut |
72% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Pixels Per Inch (ppi) |
40 ppi
|
Connectivity
| Inputs |
2 x HDMI
1 x DisplayPort
1 x DVI-D
1 x 1/8" / 3.5 mm
|
| Outputs |
1 x DisplayPort
1 x 1/8" / 3.5 mm (Analog Audio)
|
| HDCP Support |
Yes, Version 2.2
|
| USB I/O |
1 x USB-A 2.0
|
| Ethernet I/O |
2 x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1 x DE-9/DB-9 Serial (RS-232C) Control
1 x 1/8" / 3.5 mm IR Input
|
Hardware
| Smart TV |
webOS 4.1
|
| Mobile App Compatible |
No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
|
| Media Card Reader |
None
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 80%
|
Electrical
| Power Consumption |
Maximum: 250.0 W
Typical: 210.0 W
Eco Mode: 110.0 W
Standby: 0.5 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Certifications |
CB, NRTL, FCCClass B, CE, ErP
*as per Manufacturer
|
| Mounting-Hole Pattern |
600 x 400 mm
|
| Lighting Lifespan |
50000 Hours
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
47.7 x 26.9 x 3.4" / 1212.2 x 683 x 86.9 mm (without Stand)
|
| Weight |
41.4 lb / 18.8 kg
|
