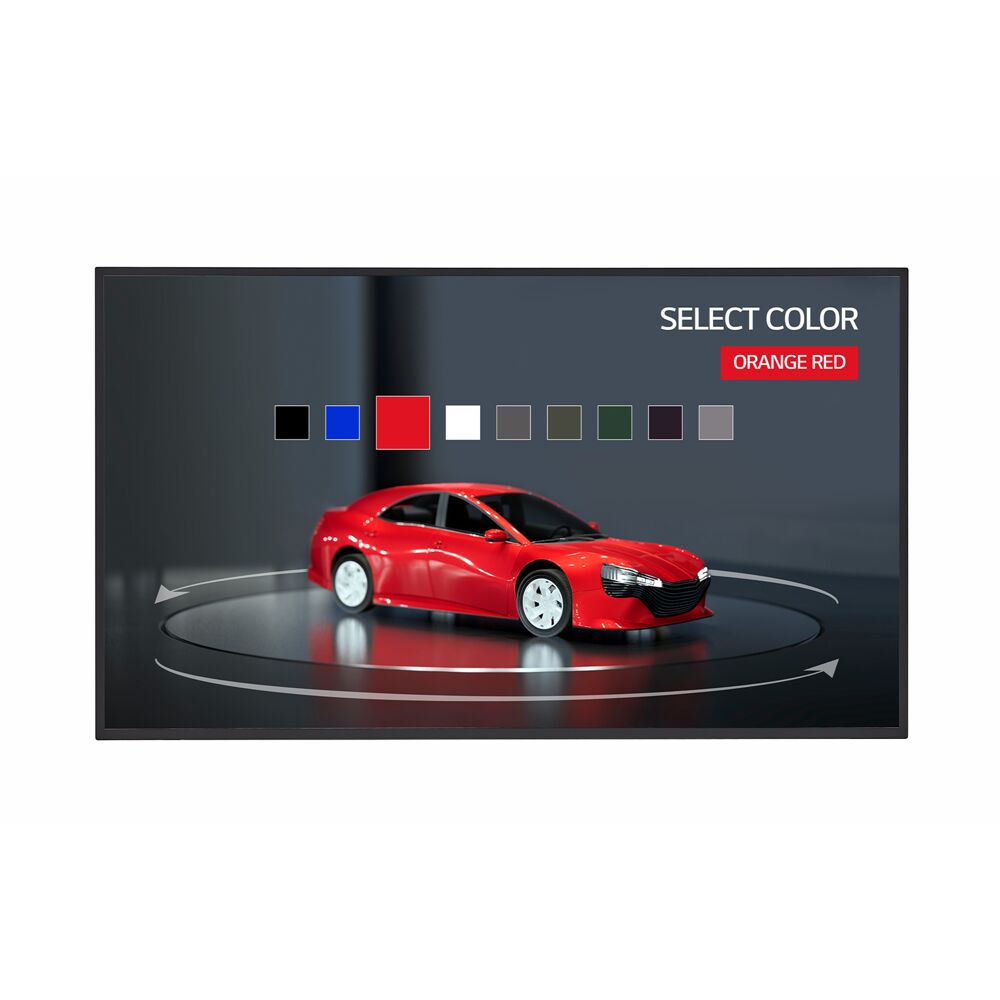

LG 32TNF5P-B – 32" 1920 x 1080 FHD LED Backlit LCD Large Format Touch Monitor

Product Overview

The LG 32TNF5P-B is a 32-inch full HD open-frame large format touch monitor with 500 nits brightness and 10-point multi-touch capability, designed for integration into custom kiosk, point-of-sale, and interactive digital signage builds. The in-cell touch design delivers a slim profile and narrow bezel compared to overlay touch solutions, making it well-suited for custom enclosure integration where depth and aesthetics matter. With a comprehensive connectivity suite including dual HDMI, RS-232C, RJ45, and USB interfaces, the 32TNF5P-B supports a wide range of AV system and IT infrastructure integration scenarios. At MAP $1,200, this open-frame touch panel provides commercial-grade interactive display capability at a practical price point for system integrators.

Product Description

The LG 32TNF5P-B open-frame touch monitor brings in-cell touch technology to large-format interactive display integration. Unlike conventional touch products that require separate overlay layers, the in-cell design embeds the touch sensor directly within the display panel, reducing overall thickness and enabling the narrow bezel profile preferred in custom enclosure and kiosk builds. The 10-point multi-touch capability supports complex gesture interaction including pinch-to-zoom, multi-finger input, and collaborative touch use cases appropriate for self-service kiosks, interactive directories, and digital signage with user input requirements. At 500 nits brightness, the display provides adequate visibility in controlled indoor environments such as retail stores, hotel lobbies, corporate facilities, and transportation terminals. The connectivity suite is comprehensive for an open-frame commercial display: dual HDMI inputs (HDCP 2.2/1.4), RS-232C for serial control, RJ45 for network management, USB 2.0 Type-A for peripheral devices, a Touch USB Type-B connection, IR In for remote control, and Audio Out for integrated audio. This breadth of interfaces simplifies integration with existing AV control systems and signage infrastructure. The open-frame form factor is designed to be dropped into custom-built enclosures, furniture, or kiosk structures, giving system integrators the freedom to design around specific brand, ergonomic, or environmental requirements. For integration specifications and project pricing, visit creationnetworks.net.

Key Features

• In-Cell Touch Technology — Touch sensor built into the display panel for a slimmer profile and narrower bezel than overlay touch solutions.
• 10-Point Multi-Touch — Supports complex multi-finger gestures for collaborative and self-service interactive applications.
• 500 Nits Brightness — Adequate output for controlled indoor commercial environments.
• Open-Frame Form Factor — Designed for integration into custom kiosk enclosures, furniture, and built-in display structures.
• Dual HDMI Inputs (HDCP 2.2/1.4) — Supports protected content playback from multiple sources with HDCP compliance.
• RS-232C Serial Control — Enables integration with AV control systems for centralized display management.
• RJ45 Network Interface — Supports network-based content delivery and remote management.
• USB 2.0 and Touch USB Interfaces — Connects peripheral devices and touch control with standard connectors.

Typical Applications

• Custom kiosk builds for retail self-service and point-of-sale
• Hotel and hospitality check-in and concierge terminals
• Corporate lobby interactive directories and wayfinding
• Transportation terminal self-service ticketing kiosks
• Interactive digital signage with user input capability
• Healthcare patient check-in and information terminals
• Education and training interactive display integration

Technical Specifications

Frequently Asked Questions

Why choose in-cell touch over an overlay touch panel?

In-cell touch integrates the sensor within the panel itself, eliminating the extra glass layer of an overlay solution. This results in a thinner display, narrower bezel, and a more direct touch feel—all advantages in custom kiosk enclosure design.

What is HDCP and why does it matter?

HDCP (High-bandwidth Digital Content Protection) is a copy protection protocol required to display protected content from sources like streaming devices, Blu-ray players, and some digital signage players. The 32TNF5P-B supports HDCP 2.2 and 1.4 on both HDMI inputs.

Can this monitor be controlled via an AV control system?

Yes. The RS-232C serial interface supports integration with commercial AV control systems from manufacturers such as Crestron, AMX, Extron, and others for centralized display management.

Is this display suitable for 24/7 continuous operation?

Yes. As a commercial-grade large format display, the 32TNF5P-B is rated for extended continuous operation beyond what consumer displays support.

What enclosure does this open-frame monitor require?

The 32TNF5P-B requires a custom-built or compatible third-party enclosure for deployment. It is supplied without an outer housing, giving integrators design flexibility. Contact Creation Networks for enclosure recommendations.

What warranty is included?

LG commercial displays typically include a 3-year warranty. Contact Creation Networks at creationnetworks.net for specific warranty terms.
