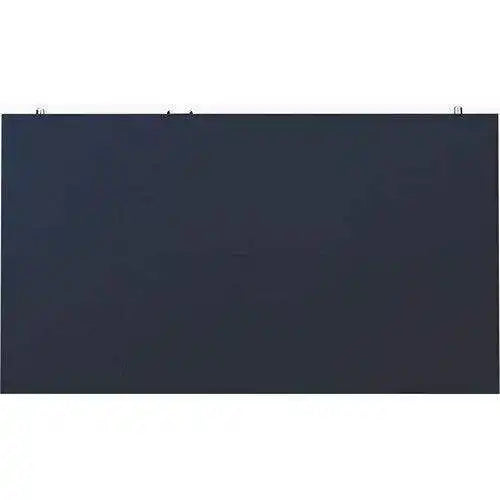

LG LSAB-U217C – 217" 4K dvLED Business Display

Product Overview

The LG LSAB-U217C is a 217-inch 4K direct view LED (dvLED) business display built for large commercial AV environments such as boardrooms, all-hands rooms, and auditoriums. It pairs an LG webOS controller with a built-in quad-core SoC and an integrated media player, reducing system complexity by removing the need for a separate playback device. A built-in AV-over-IP decoder and multi-view processing make it a practical centerpiece for networked commercial meeting spaces. As an all-in-one dvLED business display, it is intended for permanent commercial installation rather than portable use.

Product Description

The LSAB-U217C ships as a ready-to-assemble system that includes LG direct view LED panels, a 4K LG controller, spare modules, spare boards and parts, and a service tool, supporting integration and long-term maintenance in fixed installations. Its webOS controller drives content directly through a built-in media player with onboard flash storage up to 3.6 GB, allowing local content to be stored, scheduled, and played without external hardware. Integrated multi-screen capability allows up to four inputs on the display at once through picture-in-picture, and a built-in AV-over-IP decoder can simultaneously present up to four 4K RTSP video streams for networked source distribution. Built-in scaling adjusts resolution up or down for any area of the display, and screen sharing over Miracast and WiDi supports wireless source input for this 4K commercial video wall.

An intuitive on-screen interface and remote control simplify setup and image management, making the LSAB-U217C suited to managed corporate AV deployments where centralized control matters.

Key Features

• 217" 4K dvLED Surface — A single 3840 x 2160 direct view LED image surface covers large sightlines without the bezel seams of tiled LCD video walls.
• webOS with Quad-Core SoC — The built-in webOS controller executes multiple tasks and provides smooth content playback without an external media player.
• Built-In Media Player — An integrated media player with onboard flash storage up to 3.6 GB stores, schedules, and plays content locally, reducing system cost and complexity.
• AV-over-IP Decoder — A built-in decoder can simultaneously display up to four 4K RTSP video streams for networked source distribution.
• Integrated Multi-View — Multi-screen capability overlays up to four inputs at once through picture-in-picture for side-by-side content.
• Built-In Scaling — On-board scaling transforms resolution up or down for any area of the display surface.
• Wireless Screen Sharing — Miracast and WiDi support wireless source sharing for presentations and live content.
• All-In-One Serviceable Kit — The system ships with panels, 4K controller, spare modules, spare boards/parts, and a service tool for streamlined integration and maintenance.

Typical Applications

• Boardroom — Premium executive display with multi-view for detailed data and video in large boardrooms.
• All-hands room — High-impact 4K surface for company-wide meetings and networked live content.
• Auditorium — Large fine-pitch image surface for presentations viewed across deep seating.
• Broadcast studio — Direct view LED backdrop for on-camera sets where bezel-free imaging matters.
• Commercial meeting space — Networked centerpiece display for high-traffic corporate environments.

Technical Specifications

Frequently Asked Questions

Does the LSAB-U217C need an external media player?
No. The webOS controller includes a built-in media player with onboard flash storage up to 3.6 GB, so content can be stored, scheduled, and played locally without separate playback hardware.

Can it display multiple sources at once?
Yes. Integrated multi-screen capability overlays up to four inputs at the same time through picture-in-picture, and the built-in AV-over-IP decoder can present up to four 4K RTSP video streams simultaneously.

How does it handle networked video sources?
A built-in AV-over-IP decoder accepts RTSP streams directly, allowing the display to pull networked 4K video without dedicated decoding appliances at the wall.

What is included for installation and service?
The all-in-one kit ships with the direct view LED panels, a 4K controller, spare modules, spare boards and parts, and a service tool to support assembly and ongoing maintenance.

What warranty and support apply?
This is a commercial LG direct view LED product and commercial warranty terms apply. Contact Creation Networks for current LG commercial warranty coverage and remote monitoring options.
