Lenovo ThinkSmart One + IP Controller – Microsoft Teams Rooms 12BY0004US

Product Overview

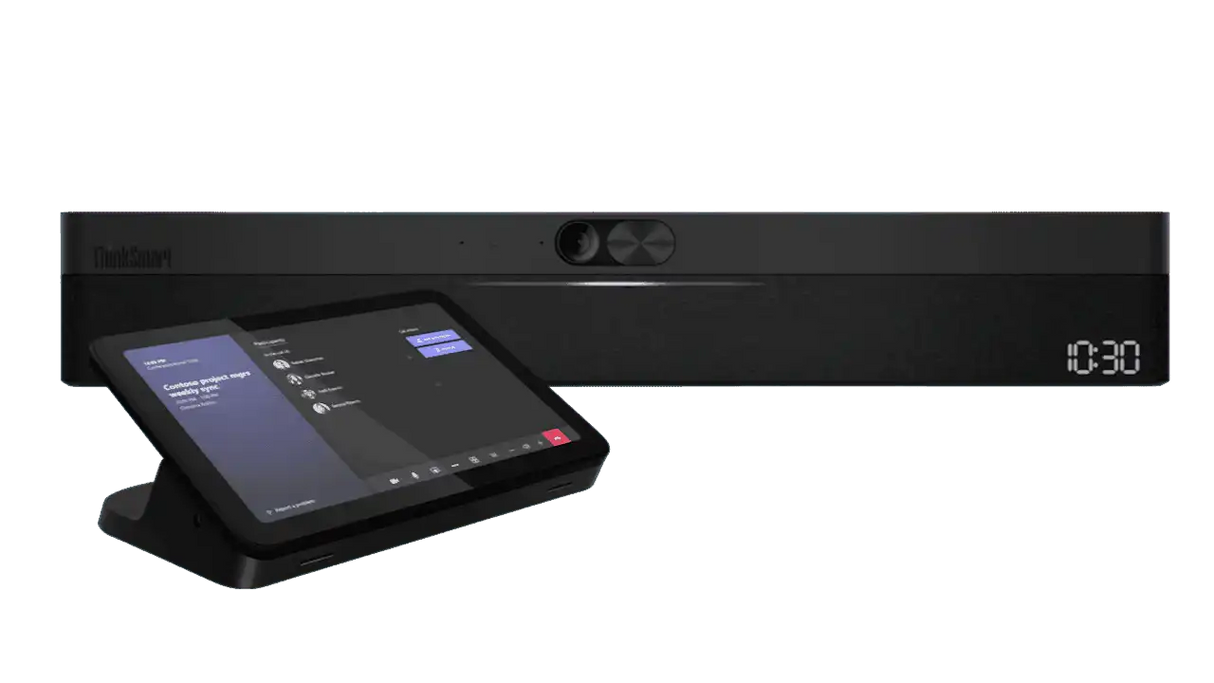

The Lenovo ThinkSmart One with IP Controller (12BY0004US) is a Windows-based all-in-one collaboration bar for Microsoft Teams Rooms, designed for small and medium conference spaces. It integrates compute, camera, microphone, and speaker into a single front-of-room bar, powered by an 11th Gen Intel Core i5-1145G7E vPro processor running Windows 11 IoT. The included Lenovo IP Controller is a 10.1-inch HD touchscreen that provides Teams Rooms meeting controls from the conference table via Power over Ethernet, eliminating a separate USB connection for the controller.

Product Description

The ThinkSmart One is the first and, at time of release, only Windows-based integrated collaboration bar combining the compute unit, camera, audio system, and room controller in a single certified package. The i5-1145G7E vPro processor (1.5 GHz base, up to 4.1 GHz turbo) pairs with 16 GB RAM and a 256 GB SSD to run the Windows 11 IoT Teams Rooms application without a separate compute box or PC. Intel Iris Xe integrated graphics power the high-resolution camera with an extra-wide field of view covering the full width of small and medium rooms.

The IP Controller connects to the network via PoE, receiving both power and data over a single Ethernet cable to the conference table — no USB cable run from the bar to the table is needed. Its 10.1-inch HD screen provides 10-point multitouch input for meeting controls. The bar itself handles all audio processing including microphone pickup and loudspeaker output for remote participants. The configuration (i5-1145G7E vPro, 16 GB, 256 GB, Windows 11 IoT) is certified for Microsoft Teams Rooms and managed through the Teams admin center.

Key Features

• All-in-One Windows Collaboration Bar — Compute, camera, audio, and speaker in a single front-of-room unit running Windows 11 IoT with Microsoft Teams Rooms — no separate compute box required.
• 11th Gen Intel Core i5-1145G7E vPro — Enterprise-class vPro processor delivers Intel AMT remote management capability alongside Teams Rooms compute performance in a low-power 28W envelope.
• Lenovo IP Controller via PoE — The 10.1-inch HD touchscreen controller connects to the conference table over a single Ethernet cable (power and data combined), eliminating USB cable runs to the table.
• Extra-Wide Field-of-View Camera — Integrated camera with Intel Iris Xe-accelerated image processing provides a wide FOV appropriate for small and medium conference rooms without additional PTZ hardware.
• Microsoft Teams Rooms Certified — Fully certified MTR configuration managed through the Microsoft Teams admin center with standard MTR device management workflows.
• 16 GB RAM / 256 GB SSD — Sufficient compute resources to run Windows 11 IoT and Teams Rooms with headroom for future Teams feature updates.
• Intel vPro Remote Management — Supports Intel AMT for out-of-band IT management, allowing helpdesk teams to remotely access and remediate the device independent of the operating system state.
• Compact Form Factor — Single-bar design reduces front-of-room hardware footprint, simplifying installation in rooms with limited credenza or AV rack space.

Typical Applications

• Conference Room — Core deployment target: small to medium conference rooms requiring a permanent, managed Microsoft Teams Rooms endpoint.
• Huddle Room — All-in-one form factor with PoE controller suits compact spaces where rack infrastructure is minimal.
• Boardroom — Intel vPro remote management and MTR certification support enterprise IT governance for executive conference spaces.
• Training Room — Persistent Teams Rooms configuration supports scheduled training sessions without requiring a presenter’s laptop.
• Government Space — vPro out-of-band management and Windows 11 IoT support federal and state IT security and remote management requirements.
• Commercial Meeting Space — Standardized MTR bar suitable for multi-room enterprise deployments managed centrally through the Teams admin center.
