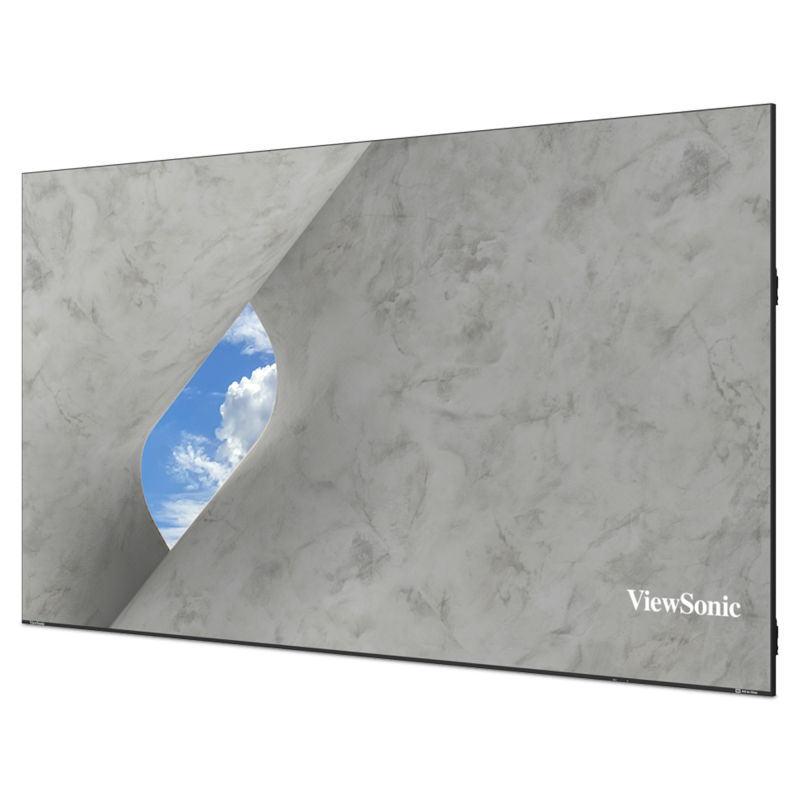

ViewSonic LDM231-251-TAA – 231-Inch TAA Modular Direct View LED

Product Overview

The ViewSonic LDM231-251-TAA is a 231-inch all-in-one direct view LED display engineered for large-scale commercial AV deployments requiring maximum visual impact. With a 2.5mm pixel pitch and 2048x1152 resolution, this dvLED display delivers sharp, high-brightness imagery across an expansive 16:9 canvas suitable for command centers, large auditoriums, and corporate lobby installations. The TAA-compliant designation makes it eligible for government procurement contracts and GSA schedules. A built-in Android 9.0 media player, integrated power distribution, and wall-mount hardware are all included, reducing the total number of components a systems integrator must source and coordinate.

Product Description

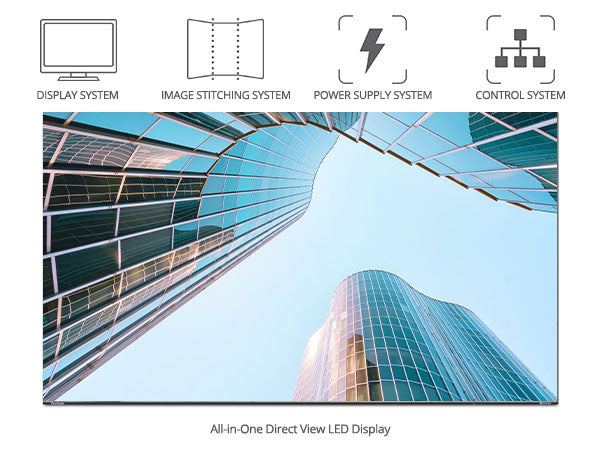

The LDM231-251-TAA positions itself as a turnkey large-format direct view LED solution for integrators and facilities teams that need a single-SKU procurement path. At 231 inches diagonal, this all-in-one dvLED display spans over 5 meters wide, making it a practical choice for main-stage environments where projection systems fall short in ambient light. The 2.5mm LED pixel pitch produces smooth, artifact-free imagery from typical viewing distances of 8 feet and beyond, appropriate for auditorium floor-level seating and command center operator stations. Brightness is rated at 600 nits with 100 adjustable levels, ensuring readability in mixed-lighting environments without washed-out visuals. The 6,500:1 static contrast ratio delivers deep blacks and vivid color separation across presentation content, video walls, and live video feeds. Four HDMI 2.0 inputs with HDCP 2.2 support accommodate multiple simultaneous source connections — a requirement in multi-presenter or broadcast-adjacent applications. The onboard RK3399 processor running Android 9.0 enables standalone digital signage playback without an external media player, lowering rack footprint and cabling overhead. Dual 30W internal speakers provide in-room audio for spaces that have not yet integrated a dedicated AV audio system. With a 100,000-hour LED backlight life rating and 24/7 operation certification, the LDM231-251-TAA is built for continuous commercial use, not consumer-grade intermittent operation. The included wall mount hardware and TAA compliance complete the package for federal and institutional buyers.

Key Features

• 231-Inch Direct View LED Panel — Delivers an immersive large-format display surface over 5 meters wide for auditoriums, lobbies, and command centers.
• 2.5mm Pixel Pitch — Produces smooth, detailed imagery at commercial viewing distances without visible pixelation.
• 2048x1152 Native Resolution — Supports high-resolution content and wide-aspect-ratio source material.
• 600 Nits Brightness (100 Adjustable Levels) — Maintains image clarity in ambient or high-ambient-light environments.
• 6,500:1 Static Contrast Ratio — Ensures sharp differentiation between dark and bright content areas.
• 4x HDMI 2.0 Inputs with HDCP 2.2 — Connects multiple video sources simultaneously for multi-presenter or multi-feed deployments.
• Built-in Android 9.0 Media Player (RK3399) — Enables standalone digital signage playback without an external media player or PC.
• Dual 30W Internal Speakers — Provides integrated audio output for spaces without a separate sound system.
• 100,000-Hour LED Life / 24/7 Operation — Rated for continuous commercial use with a long service life between maintenance cycles.
• TAA Compliant — Eligible for government and institutional procurement via GSA schedules and federal contracts.
• Included Wall Mount Hardware — Reduces third-party accessory sourcing; installation hardware ships with the display.
• Wi-Fi 2.4G/5G — Supports wireless network connectivity for content management and remote administration.

Typical Applications

• Auditorium
• Command center
• Lobby / atrium
• House of worship
• Government space
• All-hands room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

• Is the LDM231-251-TAA TAA compliant for government purchasing? Yes. The TAA suffix confirms Trade Agreements Act compliance, making this display eligible for GSA schedule procurement and federal government contracts.
• What is the recommended minimum viewing distance for a 2.5mm pixel pitch display? A 2.5mm pixel pitch is generally appropriate for viewing distances starting at approximately 8–10 feet. For auditorium seating farther than 15 feet, this display provides excellent image clarity.
• Can this display operate without an external media player or PC? Yes. The built-in Android 9.0 player (RK3399 processor, 4GB RAM, 32GB storage) supports standalone content playback and digital signage applications without additional hardware.
• How many video sources can be connected simultaneously? The display has 4 HDMI 2.0 inputs with HDCP 2.2. A single input is active at a time, switchable via OSD or remote control. For true multi-source video wall configurations, an external video controller is required.
• What control systems are compatible with the LDM231-251-TAA? The RS-232 port and Ethernet LAN ports support integration with control systems such as Crestron, AMX, and Extron via serial and IP-based command sets. ViewSonic provides command documentation for integrators.
• Does installation hardware ship with the display? Yes. A wall mount, LAN cable (CAT 5A), IR extender, power cord, and remote control are included in the package.
• What is the warranty coverage? ViewSonic provides a 3-year limited warranty covering parts and labor.
• What is the power requirement for installation planning? The LDM231-251-TAA requires a 100–120V, 40A circuit. Maximum power draw is 4,124W; typical operating consumption is 1,443W. Consult a licensed electrician to confirm circuit capacity before installation.
