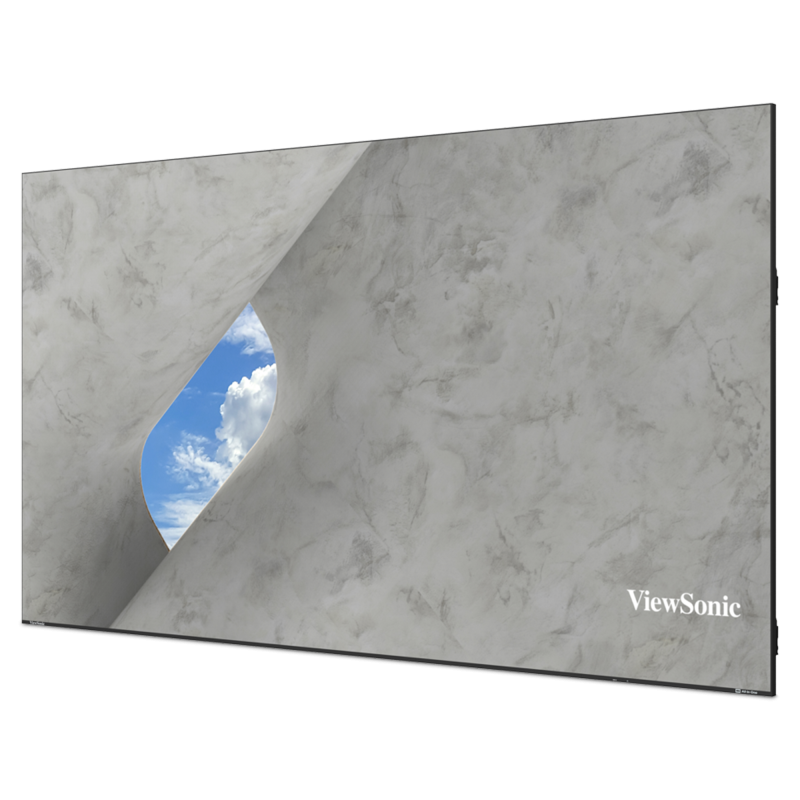

ViewSonic LDE163G-182-TAA – 163-Inch TAA All-in-One dvLED Display

Product Overview

The ViewSonic LDE163G-182-TAA is a 163-inch all-in-one direct view LED display built on SMD+Glue-on-Board (GOB) panel technology, delivering Full HD 1920x1080 resolution at a 1.88mm pixel pitch. Designed for permanent commercial installations in government spaces, auditoriums, command centers, and corporate lobbies, this TAA-compliant dvLED display qualifies for GSA schedule procurement and federal government contracts. The pre-configured all-in-one design integrates display panels, image processing, power, and wall-mount hardware into a single part number. IP54 dust and moisture resistance, IK06 impact protection, and 24/7 operation certification confirm its suitability for demanding, continuously operational environments.

Product Description

The LDE163G-182-TAA targets commercial AV buyers who need a large-format direct view LED display with government procurement eligibility and a simplified installation process. The GOB (Glue-on-Board) panel construction applies a transparent protective resin over the SMD LED array, providing IP54 ingress protection and IK06 impact resistance — a meaningful upgrade over bare SMD panels in environments subject to cleaning, accidental contact, or variable humidity. At 163 inches diagonal, the display spans over 3.6 meters wide, providing a commanding visual presence appropriate for main briefing rooms, large auditoriums, and public-facing lobby installations. The 1.88mm pixel pitch and Full HD resolution deliver clear, detailed imagery at viewing distances starting around 6 feet, covering the range of seat-to-screen distances typical of medium to large meeting and presentation spaces. Brightness is rated at 600 nits, maintaining image clarity under overhead ambient lighting conditions that would wash out projection-based systems. The 6,500:1 static contrast ratio ensures text and graphic content remains legible and visually sharp. The display is powered by an RK3588 processor and supports up to 4K input resolution via its HDMI 2.0 port, enabling future-ready source compatibility. Two HDMI inputs, RS-232 serial control, two USB 3.0 ports, and a single Ethernet LAN port provide the connectivity needed for AV system integration. Dual 8W internal speakers cover basic in-room audio requirements. At a lower price point than the COB-based LDM163 models, the LDE163G-182-TAA provides an accessible path to 163-inch TAA-compliant dvLED for budget-conscious institutional buyers without sacrificing the core commercial-grade display performance specifications.

Key Features

• 163-Inch Direct View LED, GOB Panel Technology — Glue-on-Board protective resin layer adds IP54 and IK06 protection over the standard SMD LED array.
• 1.88mm Pixel Pitch, Full HD 1920x1080 — Delivers clear imagery at medium-to-large room viewing distances starting at approximately 6 feet.
• 600 Nits Brightness — Readable under ambient overhead lighting without room blackout or dimming requirements.
• 6,500:1 Static Contrast Ratio — Maintains image and text clarity across diverse content types and lighting environments.
• 3,840Hz Refresh Rate — Eliminates visible flicker for video production, screen capture, and broadcast applications.
• IP54 / IK06 Front Panel Protection — Resistant to dust ingress, moisture splashes, and moderate physical impact on the front surface.
• 24/7 Operation Certified — Built for continuous commercial operation in command centers, government facilities, and public spaces.
• HDMI 2.0 Input with 4K Support — Accepts up to 3840x2160 source signals for compatibility with current and future high-resolution sources.
• TAA Compliant — Eligible for GSA schedule procurement and federal, state, and local government purchasing contracts.

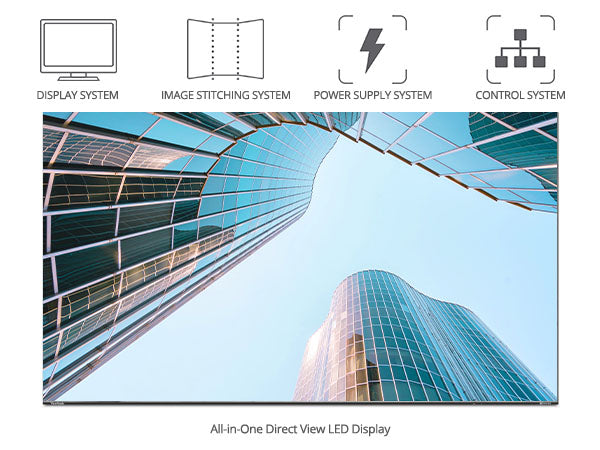

• All-in-One Pre-Configured Design — Display, processor, power, and wall mount hardware included in one SKU for simplified procurement and installation.
• RK3588 Processor — Higher-performance processing platform compared to entry-level all-in-one displays.

Typical Applications

• Government space
• Command center
• Auditorium
• Lobby / atrium
• All-hands room
• Multi-purpose room
• House of worship
• Training room

Technical Specifications

Frequently Asked Questions

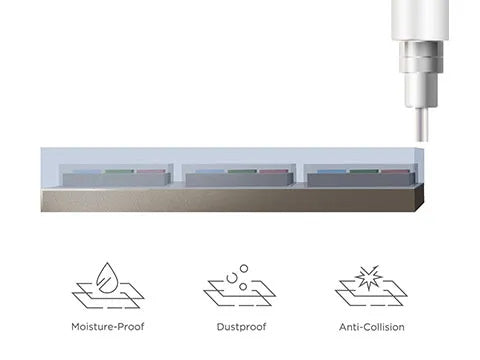

• What is GOB (Glue-on-Board) technology, and how does it differ from standard SMD? GOB applies a transparent protective epoxy over the LED array after the SMD chips are mounted, adding a physical barrier that improves resistance to moisture (IP54) and light physical impact (IK06). Standard SMD panels expose the LED chips directly, making them more vulnerable to contact and environmental factors. GOB provides better protection than bare SMD but is generally less durable than COB construction.
• Is the LDE163G-182-TAA eligible for government purchasing programs? Yes. The TAA suffix confirms Trade Agreements Act compliance, making this display eligible for GSA schedule procurement and federal, state, and local government contracts.
• What is the minimum recommended viewing distance? The 1.88mm pixel pitch is appropriate for viewing distances starting at approximately 6 feet, making it suitable for auditoriums, large conference rooms, briefing rooms, and lobbies.
• How does this model compare to the LDM163-182-TAA? Both are 163-inch all-in-one direct view LED displays with the same screen size and resolution. The LDE163G-182-TAA uses GOB panel technology (IP54/IK06) and the RK3588 processor, while the LDM163-182-TAA uses standard panel construction with a different controller platform. The LDE163G is priced lower, making it an accessible TAA-compliant option when the enhanced durability of COB is not required.
• What video sources are compatible with this display? The display accepts HDMI 2.0 (4K/HDCP 2.2) and HDMI 1.4 (HDCP 1.4) inputs. It supports PC resolutions up to 3840x2160, making it compatible with standard laptops, media players, video conferencing codecs, and 4K sources.
• What control system interfaces are available? The RS-232 serial port and Ethernet LAN (RJ45) port support integration with third-party control systems including Crestron, AMX, and Extron. ViewSonic provides RS-232 command code documentation for AV programmers.
• Does this display include wall mount hardware? Yes. A wall mount, LAN cable, remote control, IR extender, and power cord are included in the package.
• What is the power requirement for this display? The LDE163G-182-TAA requires a 100–120V / 20A circuit. Maximum power draw is 2,288W; typical consumption is 763W.
