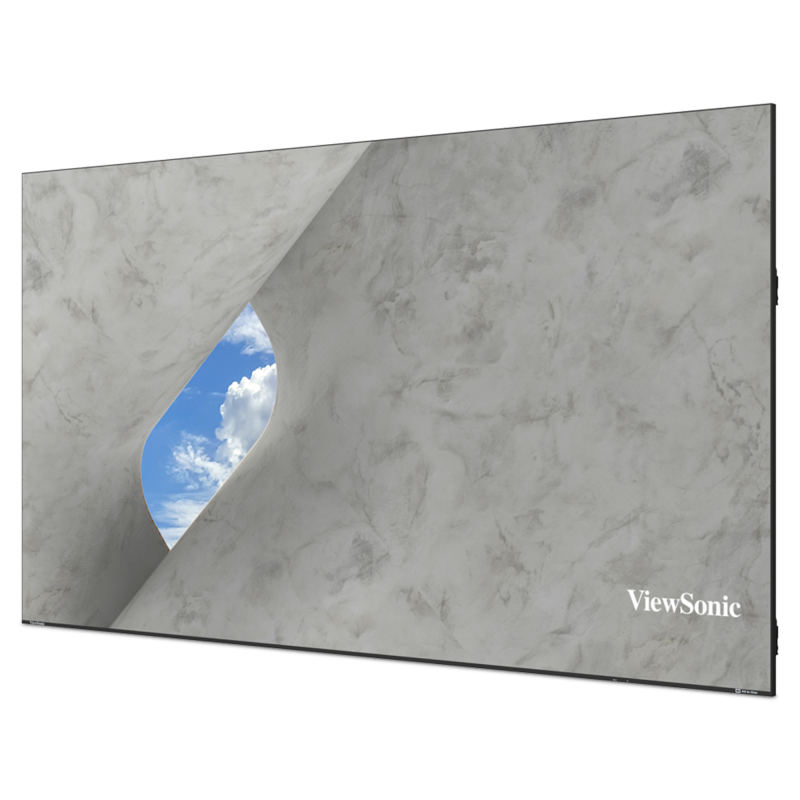

ViewSonic LDE163G-182 – 163-Inch All-in-One dvLED Display

Product Overview

The ViewSonic LDE163G-182 is a 163-inch all-in-one direct view LED (dvLED) display purpose-built for large-venue commercial AV deployments where installation simplicity and long-term reliability are the primary requirements. At 1.88mm pixel pitch with 600-nit brightness and a 6,500:1 contrast ratio, this large-format LED display delivers vivid, high-contrast imagery suited to lobbies, auditoriums, command centers, and all-hands spaces. The complete all-in-one dvLED system ships as a single SKU with every component—power, image processing, controls, and wall mount—integrated directly into the cabinet, eliminating the need for a separate media player or external processing chassis. Commercial-grade 24/7 operation and a 100,000-hour LED lifespan make it a dependable choice for facilities teams managing permanent installations.

Product Description

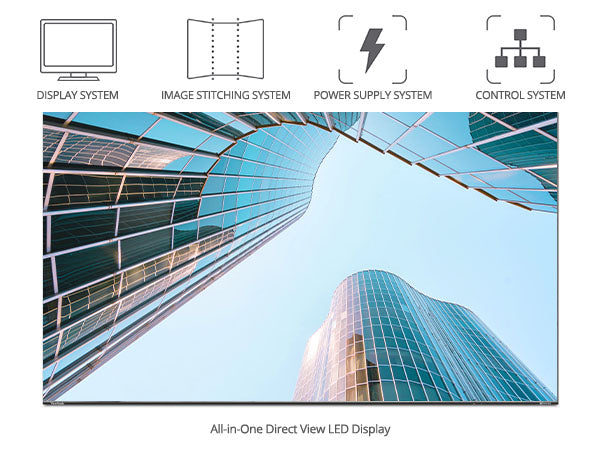

The LDE163G-182 belongs to ViewSonic's LDE Series, a line of pre-configured all-in-one dvLED displays engineered to lower the barrier to large-format direct view LED deployment in commercial settings. The display ships fully integrated: power supply, RK3588 processor, image stitching, and control circuitry are built into the cabinet modules rather than housed in a separate rack unit. This architecture reduces installation time, minimizes cabling, and produces a clean wall profile measuring just 52mm deep without the mount.

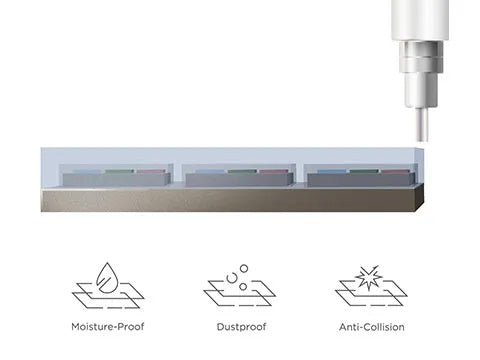

Glue-on-Board (GOB) technology encapsulates each LED in a protective resin layer, earning the display IP54 dust and moisture resistance and an IK06 impact rating—critical qualifications for high-traffic environments such as corporate lobbies, university atriums, and government facilities. Hot-swappable front-accessible LED modules mean a technician can replace a failed tile without removing the display from the wall, and ViewSonic includes calibrated spare tiles with every unit to ensure color uniformity is maintained after any field replacement.

Control integration is handled via a Q-SYS Library Verified plugin, with additional support for Crestron, Extron, and AMX. HDMI CEC enables coordinated power and source switching across connected devices. The built-in simplified OS provides plug-and-play digital signage playback without requiring an external media player, while two HDMI inputs, RS-232, and a gigabit LAN port support integration into existing AV infrastructure. Internal 8W stereo speakers handle basic audio requirements, though integrators can route audio out via the 3.5mm output to an external amplifier system.

Key Features

• All-in-One Cabinet Design — Power supply, image processing, and controls are built directly into the LED cabinet modules, eliminating the need for a separate processing chassis or rack unit.
• 1.88mm Pixel Pitch at 163 Inches — Delivers 1920x1080 resolution across a 163-inch diagonal, appropriate for large viewing distances typical in lobbies, auditoriums, and all-hands rooms.
• 600-Nit Brightness / 6,500:1 Contrast — Produces vivid imagery under typical commercial ambient lighting conditions without requiring supplemental blackout measures.
• Glue-on-Board (GOB) Technology — Resin encapsulation protects LEDs against physical impact, dust, and moisture, rated IP54 (front) and IK06 impact resistance.

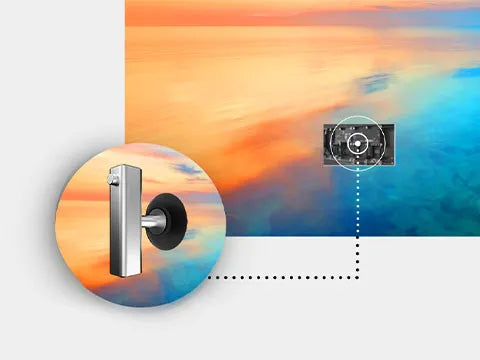

• Hot-Swappable Front LED Modules — Failed tiles can be replaced from the front of the display with the included suction tool, minimizing downtime; calibrated spare tiles included.
• Q-SYS, Crestron, Extron, and AMX Compatible — Q-SYS Library Verified plugin enables centralized control of power, volume, and input switching within existing Pro AV ecosystems.
• 24/7 Commercial Operation Rating — Rated for continuous operation with a 100,000-hour LED lifespan, suitable for permanent installations in high-demand environments.

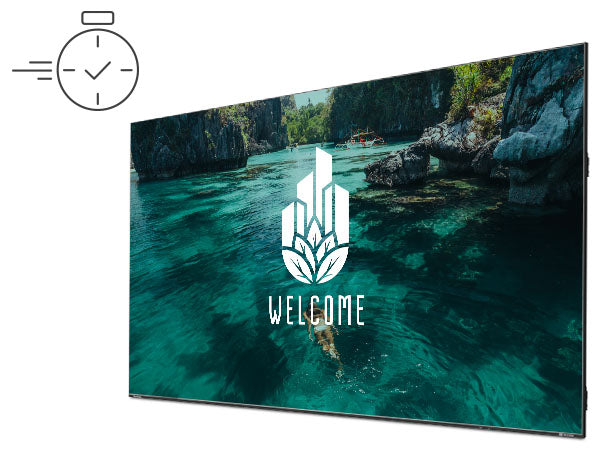

• Simplified Built-in OS (RK3588) — Supports direct content playback without an external media player; connects via HDMI 2.0, HDMI 1.4, USB 3.0, RS-232, and gigabit LAN.
• Included Wall Mount — Wall mount hardware ships with the display; finished depth with mount is 61.7mm, keeping the installed profile minimal.
• Single-SKU Ordering — The complete solution—display, mount, cables, remote, and spare tiles—ships together under one part number, simplifying procurement.

Typical Applications

• Lobby/atrium
• Auditorium
• All-hands room
• Command center
• Government space
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What control systems is the LDE163G-182 compatible with?

The display carries a Q-SYS Library Verified certification and is compatible with Crestron, Extron, and AMX control systems. RS-232 and LAN ports are available for integration, and HDMI CEC supports basic device coordination without a dedicated control processor.

Does this display require an external media player or processing unit?

No. The all-in-one design includes a built-in RK3588 processor and simplified OS that handles direct content playback. An external media player, video processor, or rack-mounted controller is not required for basic digital signage operation.

How is the display installed and what mounting hardware is included?

The wall mount is included in the box. Finished installation depth with the mount is 61.7mm (approximately 2.43 inches). Dimensional drawings in DWG, PDF, and STP formats are available from ViewSonic's support site to assist structural planning.

What does the IP54 and IK06 rating mean for day-to-day operation?

IP54 indicates the front surface is protected against dust ingress and water splashing from any direction. IK06 indicates resistance to 1 joule of impact energy. These ratings make the display suitable for lobbies, atriums, and other high-traffic public spaces where cleaning, incidental contact, or elevated humidity are concerns.

How are failed LED modules serviced?

LED modules are front-accessible and hot-swappable. A suction tool is included for tile removal. ViewSonic ships calibrated spare tiles with every unit so color and brightness uniformity can be maintained after a field replacement without returning the display for factory service.

What is the warranty coverage?

The LDE163G-182 is covered by ViewSonic's standard commercial warranty. Buyers should confirm current warranty terms at viewsonic.com/us or with their authorized reseller, as commercial display warranty periods and on-site service options vary by program.

Can the display operate continuously without scheduled downtime?

Yes. The display carries a 24/7 operation rating and a 100,000-hour LED lifespan, making it appropriate for permanent installations in command centers, transportation hubs, and other environments requiring around-the-clock display operation.
