ViewSonic LDE136G-152-TAA – 136-Inch TAA All-in-One dvLED Display

Product Overview

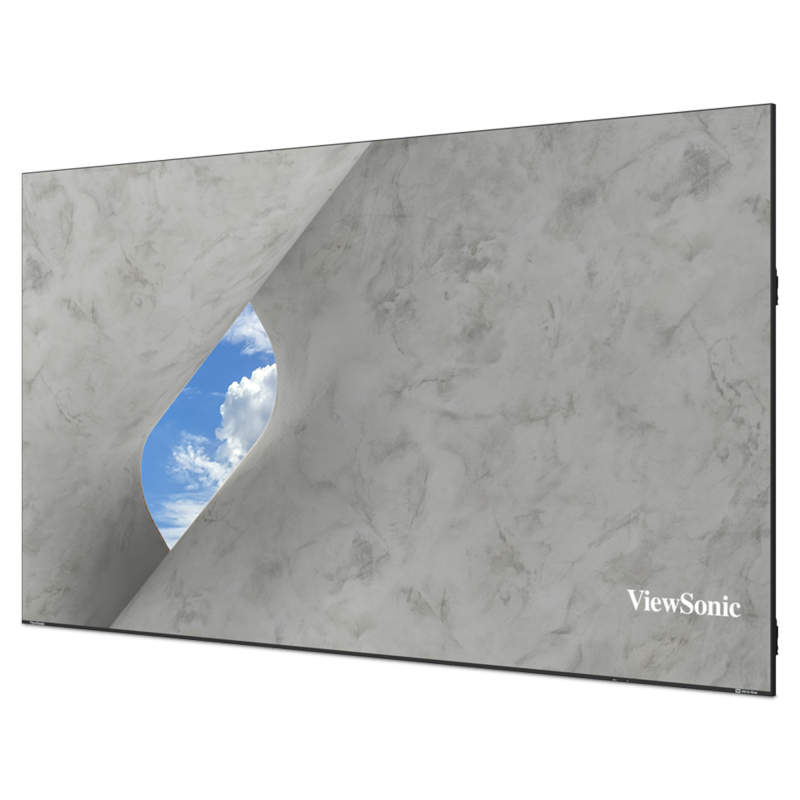

The ViewSonic LDE136G-152-TAA is a 136-inch all-in-one direct view LED (dvLED) display that meets Trade Agreements Act (TAA) compliance requirements, making it a direct procurement option for U.S. federal agencies, state and local government, and GSA Schedule buyers. Built on the same architecture as the standard LDE136G-152, this pre-configured large-format LED display delivers 1920x1080 resolution at a 1.56mm pixel pitch with 600-nit brightness and a 6,500:1 contrast ratio. All processing, power, and control components are integrated into the cabinet modules—no external media player or video processor is required—and the complete system ships as a single SKU with wall mount included.

Product Description

The LDE136G-152-TAA addresses the compliance gap that has historically made commercial dvLED deployment difficult in federally funded projects. TAA-compliant origin certification means procurement teams can purchase this display directly on GSA schedules and other federal contract vehicles without requiring a waiver or country-of-origin exception. The underlying hardware is identical to the LDE136G-152: a 136-inch direct view LED display with 1.56mm pixel pitch, Glue-on-Board (GOB) protection, and a fully integrated all-in-one design.

The all-in-one cabinet architecture eliminates the need for a separate video processing chassis. Power supply, RK3588 processor, image stitching, and control circuitry are built into the cabinet, reducing installation complexity and rack space requirements. The display connects to AV infrastructure via HDMI 2.0, HDMI 1.4, RS-232, and gigabit LAN, and the built-in simplified OS supports direct digital signage playback without external hardware.

GOB technology encapsulates the LEDs in a protective resin, producing IP54 dust and moisture resistance and an IK06 impact rating at the front surface. Hot-swappable front-accessible modules and included calibrated spare tiles allow field servicing without removing the display from the wall. Control integration is supported via a Q-SYS Library Verified plugin and compatibility with Crestron, Extron, and AMX platforms. The display is rated for 24/7 continuous operation with a 100,000-hour LED lifespan.

Key Features

• TAA Compliant — Meets Trade Agreements Act country-of-origin requirements, qualifying for GSA Schedule procurement and federally funded projects.

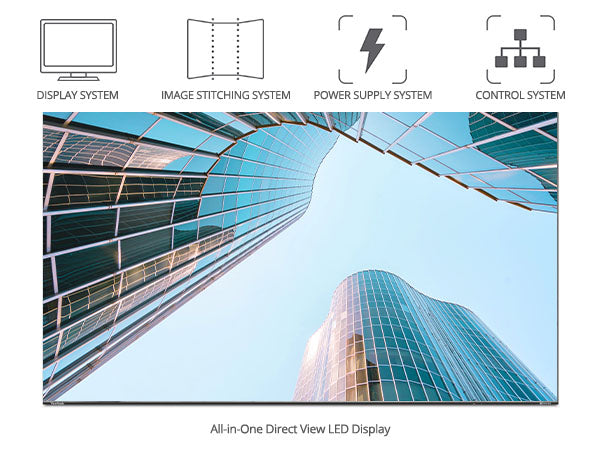

• All-in-One Cabinet Design — Power, processing, and controls are integrated into the cabinet; no external processor, rack unit, or media player required.
• 1.56mm Pixel Pitch at 136 Inches — Delivers 1920x1080 resolution at a finer pixel pitch than the 163-inch model, suited to medium-to-large rooms with closer viewing distances.
• 600-Nit Brightness / 6,500:1 Contrast — Maintains image clarity under commercial ambient lighting without supplemental light control.

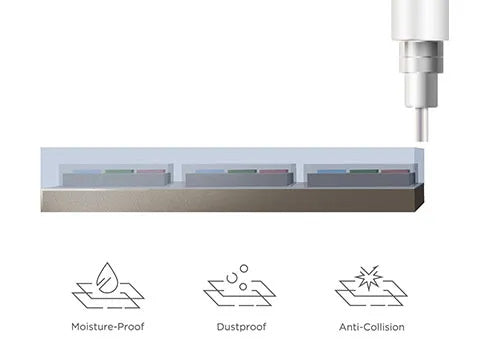

• Glue-on-Board (GOB) Technology — Resin-encapsulated LEDs rated IP54 (front) and IK06 impact resistance for high-traffic public and government spaces.

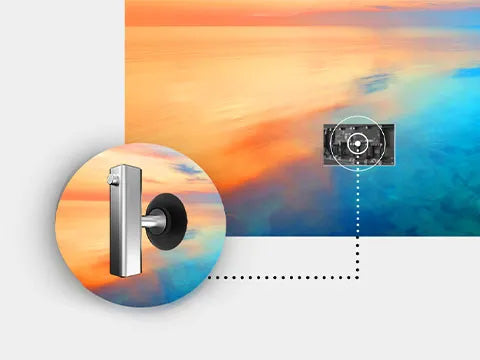

• Hot-Swappable Front LED Modules — Front-accessible tile replacement with included suction tool; calibrated spare tiles included to maintain color uniformity.
• Q-SYS, Crestron, Extron, and AMX Compatible — Q-SYS Library Verified plugin for centralized AV control; RS-232 and LAN connectivity for third-party control systems.
• 24/7 Operation / 100,000-Hour LED Life — Commercial-grade rating for continuous, permanent installation environments.
• Single-SKU Procurement — Display, wall mount, cables, remote, and spare tiles ship together under one part number, simplifying purchasing and receiving.
• Internal 8W Stereo Speakers — Built-in audio with 3.5mm line output for routing to an external amplifier system.

Typical Applications

• Government space
• Command center
• Lobby/atrium
• Boardroom
• Conference room
• All-hands room
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does TAA compliant mean for this display?

TAA compliance means the LDE136G-152-TAA meets the Trade Agreements Act country-of-origin requirements. This qualifies it for purchase on GSA Schedule contracts and other federal procurement vehicles without requiring a waiver. State and local government buyers using federally funded programs also benefit from TAA-compliant sourcing.

How does this differ from the standard LDE136G-152?

The hardware specifications are identical. The TAA variant carries TAA-compliant country-of-origin certification, which is required for many U.S. government and federally funded purchases. Commercial buyers without TAA requirements can use either model.

What control systems are supported?

The display is Q-SYS Library Verified and compatible with Crestron, Extron, and AMX. RS-232 and gigabit LAN ports support integration into existing control infrastructure. HDMI CEC allows basic device coordination without a dedicated control processor.

Does the display need an external media player?

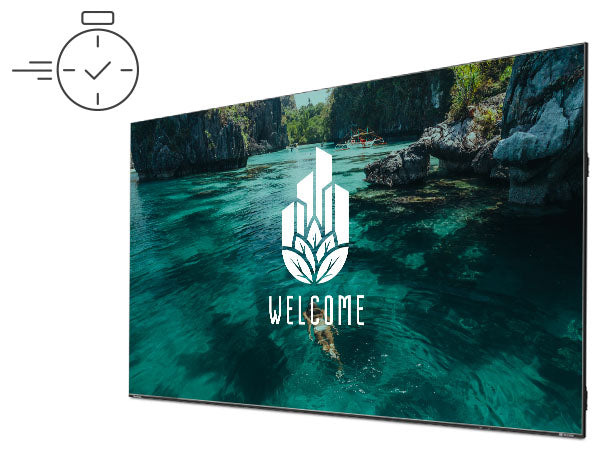

No. The built-in RK3588 processor and simplified OS support direct content playback. For more complex digital signage workflows, an external source device can be connected via HDMI 2.0 or HDMI 1.4.

How are LED modules serviced in the field?

Modules are front-accessible and hot-swappable using the included suction tool. Calibrated spare tiles are included with the display so field technicians can maintain color uniformity without returning the unit for service.

What is the installation depth with the included wall mount?

With the included wall mount attached, the display profile is 61.7mm (approximately 2.43 inches) deep, keeping the installation close to the wall surface.

What warranty does this display carry?

ViewSonic provides a commercial limited warranty on the LDE Series. Confirm current terms and available on-site service programs at viewsonic.com/us or with your authorized reseller or GSA contract holder.
