ViewSonic LDE136G-152 – 136-Inch All-in-One dvLED Display

Product Overview

The ViewSonic LDE136G-152 is a 136-inch all-in-one direct view LED (dvLED) display designed for commercial AV integrators and facilities teams that need large-format LED at a straightforward price-to-performance point. With a 1.56mm pixel pitch, 600-nit brightness, and a 6,500:1 contrast ratio, this pre-configured dvLED display delivers 1920x1080 across a 136-inch diagonal without requiring a separate video processor, media player, or control rack. All electronics are built into the cabinet modules, and the complete system ships as a single SKU with wall mount hardware included. The display is rated for 24/7 operation and carries a 100,000-hour LED lifespan, making it appropriate for permanent installations in corporate lobbies, conference rooms, auditoriums, and government spaces.

Product Description

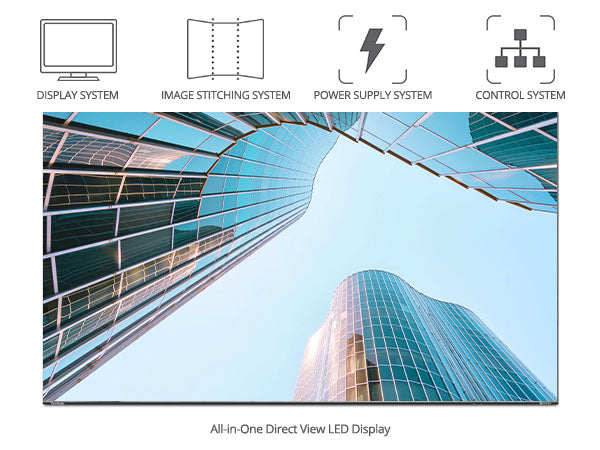

The LDE136G-152 is part of ViewSonic's LDE Series, which positions pre-configured all-in-one dvLED as a practical alternative to modular LED video wall systems that require separate processing infrastructure. The integrated RK3588 processor handles image stitching and content playback on-board, while HDMI 2.0, HDMI 1.4, RS-232, and gigabit LAN provide connectivity to external sources and control systems.

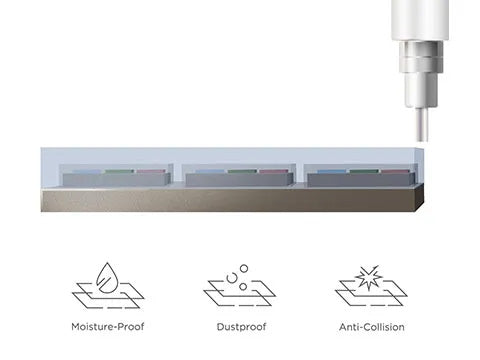

Glue-on-Board (GOB) technology bonds a protective resin layer over the LED surface, providing IP54 dust and moisture resistance and IK06 impact protection at the front. These ratings make the display deployable in environments where incidental contact, cleaning chemicals, or elevated humidity would disqualify standard LED products. Hot-swappable front-accessible modules allow a single technician to replace a failed tile from the front of the display without special tooling beyond the included suction cup. Calibrated spare tiles are included with every unit to ensure spectral matching after replacement.

For AV system integration, the display supports the Q-SYS ecosystem via a Q-SYS Library Verified plugin, and is compatible with Crestron, Extron, and AMX control platforms. HDMI CEC enables simplified power and source management when a dedicated control processor is not deployed. The built-in simplified OS handles plug-and-play digital signage content, while internal 8W stereo speakers or a 3.5mm line output cover audio requirements for most meeting and lobby applications.

Key Features

• All-in-One Cabinet Architecture — Processing, power, and control are integrated into the LED cabinet; no external rack equipment required.
• 1.56mm Pixel Pitch at 136 Inches — 1920x1080 resolution at a finer pitch than larger-format models, suitable for rooms where viewers sit or stand at closer distances.
• 600-Nit Brightness / 6,500:1 Contrast — Consistent image quality under commercial ambient lighting in lobbies, conference rooms, and meeting halls.
• Glue-on-Board (GOB) Protection — Resin-encapsulated LED surface rated IP54 front ingress protection and IK06 impact resistance.
• Hot-Swappable Front LED Modules — Front-serviceable tile replacement using the included suction tool; calibrated spare tiles included for color uniformity maintenance.
• Q-SYS Library Verified / Crestron / Extron / AMX Compatible — Integrates into leading Pro AV control ecosystems for centralized power, source, and volume management.
• 24/7 Operation / 100,000-Hour LED Lifespan — Commercial-grade continuous operation for permanent, mission-critical display installations.
• Built-in RK3588 Processor — Handles image stitching and simplified OS content playback without external processing hardware.
• Single-SKU Deployment — Wall mount, cables, remote control, and spare tiles ship with the display under one part number.
• HDMI CEC Support — Enables coordinated power and source switching with connected AV equipment without a separate control processor.

Typical Applications

• Lobby/atrium
• Boardroom
• Conference room
• All-hands room
• Auditorium
• Government space
• House of worship
• Multi-purpose room
• Command center

Technical Specifications

Frequently Asked Questions

What control systems does the LDE136G-152 support?

The display is Q-SYS Library Verified and supports integration with Crestron, Extron, and AMX control systems. RS-232 and gigabit LAN connections are available for control signals. HDMI CEC enables basic power and source coordination without a dedicated control processor.

Is an external video processor or media player required?

No. The built-in RK3588 processor and simplified OS handle image stitching and direct content playback. External source devices can be connected via HDMI 2.0 or HDMI 1.4 for more complex content workflows.

How does the 136-inch size compare to the 163-inch model?

The LDE136G-152 has a 1.56mm pixel pitch versus 1.88mm on the LDE163G-182, making it better suited for closer viewing distances. Both deliver 1920x1080 resolution. The 136-inch size fits rooms where a 163-inch installation would be disproportionate or where structural load is a consideration.

What does IP54 and IK06 mean for a lobby or conference room installation?

IP54 provides protection against dust and water splash from any direction at the front surface. IK06 indicates resistance to 1 joule of impact energy. These ratings allow the display to be installed in high-traffic public areas and cleaned with standard commercial cleaning methods without voiding protection.

How are LED modules replaced in the field?

Modules are front-accessible and hot-swappable. The included suction tool allows a technician to remove and replace a tile without demounting the display. Calibrated spare tiles are included with every unit to preserve color and brightness uniformity after replacement.

What audio output options are available?

The display includes two 8W internal speakers for built-in audio. A 3.5mm analog audio output allows routing to an external amplifier or DSP for installations requiring distributed audio or higher output levels.

What warranty applies to this product?

ViewSonic provides a commercial limited warranty on LDE Series displays. Contact your authorized reseller or visit viewsonic.com/us for current warranty terms, on-site service availability, and extended warranty options.
