ViewSonic LDE108-123 – 108-Inch All-in-One dvLED Display

Product Overview

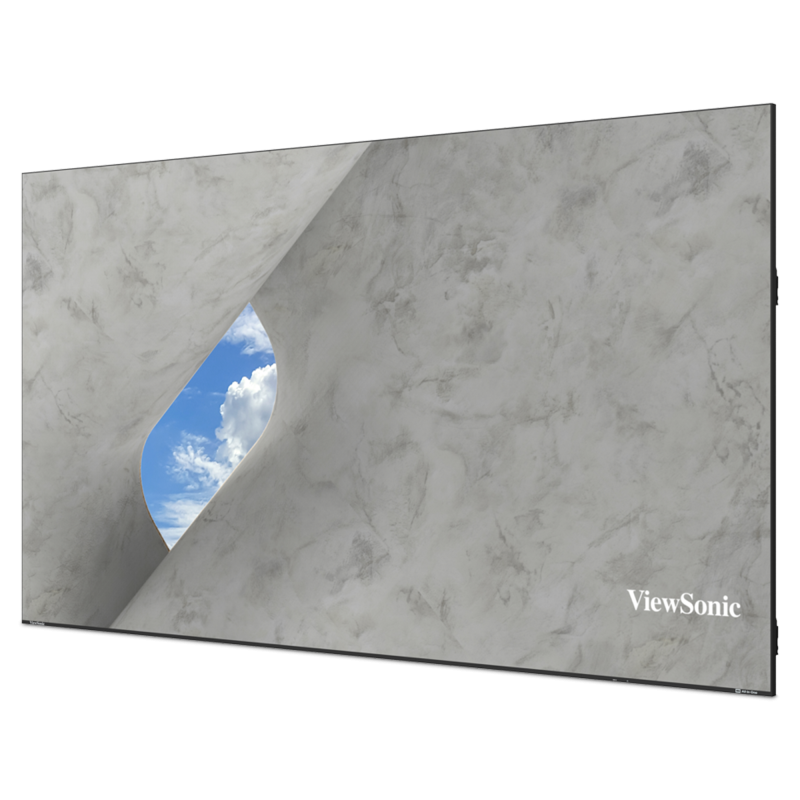

The ViewSonic LDE108-123 is a 108-inch all-in-one direct view LED (dvLED) display that addresses the commercial AV need for large-format impact in mid-size rooms where a 136-inch or larger panel cannot physically clear the door or fit within the wall space. At 1.2mm pixel pitch, this pre-configured dvLED display delivers 1920x1080 resolution with 600-nit brightness and a 6,500:1 contrast ratio—finer pixel pitch than the larger LDE Series models, suitable for shorter viewing distances in conference rooms, training rooms, and all-hands spaces. As with the rest of the LDE Series, all processing, power, and controls are integrated into the cabinet modules; no external video processor or media player is needed, and the system ships as a single SKU with wall mount hardware included.

Product Description

The LDE108-123 fills the gap between large-format LCD displays and the more expensive modular LED video wall systems. At 108 inches diagonal, it is the entry point of the ViewSonic LDE Series and the right choice when a room's dimensions, door clearance, or structural load capacity rules out larger all-in-one dvLED options. The 1.2mm pixel pitch is the finest in the LDE lineup, meaning per-pixel detail holds up at closer distances—a practical consideration in conference rooms and training spaces where viewers may be seated as close as 8 to 12 feet from the display.

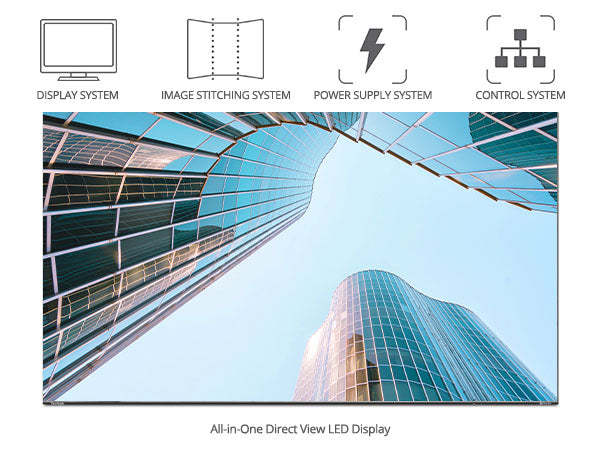

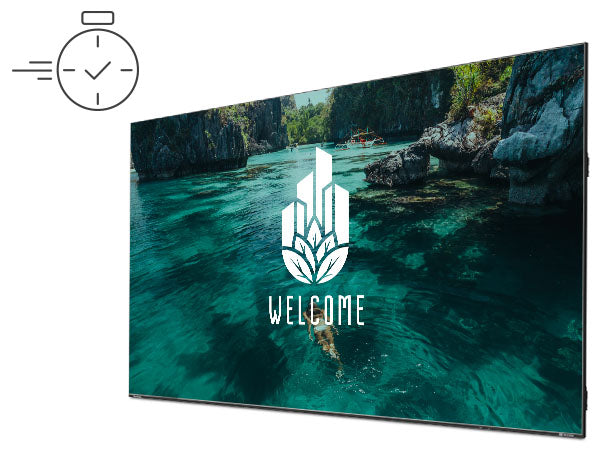

The all-in-one cabinet design integrates the RK3588 processor, power supply, and image stitching circuitry directly into the modules. This eliminates the rack-mounted video processor and external media player that traditional modular LED video walls require, reducing both installation cost and ongoing maintenance points. The built-in simplified OS supports direct digital signage playback, while HDMI 2.0, HDMI 1.4, RS-232, gigabit LAN, and USB connections allow integration with external sources and AV control systems.

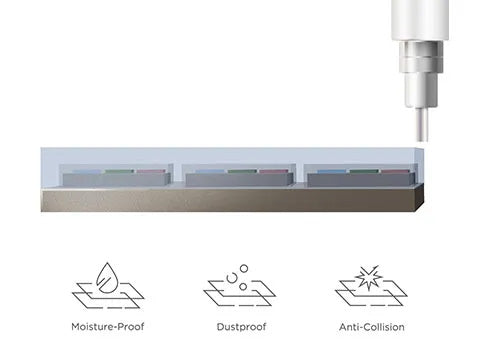

Glue-on-Board (GOB) technology provides IP54 dust and moisture resistance and IK06 impact protection at the front surface, making the LDE108-123 appropriate for conference rooms, training facilities, house of worship applications, and corporate lobby installations where standard LED modules would be exposed to risk of damage. Hot-swappable front-accessible LED modules and calibrated spare tiles included in the box keep field servicing straightforward. The display is Q-SYS Library Verified and supports Crestron, Extron, and AMX control integration, with HDMI CEC available for simpler deployments.

Key Features

• 108-Inch Form Factor for Mid-Size Rooms — The right scale for conference rooms, training rooms, and spaces where 136-inch or larger panels exceed door clearance or wall dimensions.
• 1.2mm Pixel Pitch — Finest pixel pitch in the LDE Series; maintains image quality at closer viewing distances typical of conference and training environments.
• All-in-One Cabinet Design — Processing, power, and controls built into the cabinet; no external processor, media player, or rack unit required.
• 600-Nit Brightness / 6,500:1 Contrast — Clear, high-contrast imagery under standard commercial ambient lighting.
• Glue-on-Board (GOB) Protection — IP54 ingress protection and IK06 impact resistance at the front surface for high-traffic installations.
• Hot-Swappable Front LED Modules — Front-serviceable tile replacement with included suction tool; calibrated spare tiles included.
• Q-SYS, Crestron, Extron, and AMX Compatible — Supports centralized AV control via Q-SYS Library Verified plugin and major third-party control platforms.
• 24/7 Rated / 100,000-Hour LED Life — Commercial-grade continuous operation for permanent installations.
• Single-SKU Procurement — Display, wall mount, cables, remote, and spare tiles ship together under one part number.
• 3,840Hz Refresh Rate / 13-Bit Grayscale — Smooth motion rendering and fine luminance gradation, eliminating visible banding in video and photographic content.

Typical Applications

• Conference room
• Training room
• Boardroom
• All-hands room
• Lobby/atrium
• House of worship
• Government space
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Why choose 108 inches over the 136-inch or larger LDE Series models?

The LDE108-123 is designed for rooms where a larger panel will not clear the door, fit within available wall space, or where the viewing distance is short enough that a 136-inch display would be disproportionately large. Its 1.2mm pixel pitch—finer than the 136-inch and 163-inch models—also makes it the better choice when viewers will be seated closer to the screen.

What is the minimum recommended viewing distance?

As a general rule, pixel pitch in millimeters roughly corresponds to minimum comfortable viewing distance in meters. At 1.2mm pixel pitch, comfortable minimum viewing distance is approximately 1.2 to 2 meters (4 to 7 feet), making the LDE108-123 suitable for conference rooms where viewers may be seated relatively close to the display.

Does the display require a separate video processor or media player?

No. The RK3588 processor and simplified OS are built into the cabinet, providing direct content playback without external hardware. External source devices connect via HDMI 2.0 or HDMI 1.4.

What AV control systems are compatible?

The LDE108-123 is Q-SYS Library Verified and supports Crestron, Extron, and AMX control systems via RS-232 and LAN. HDMI CEC allows basic device coordination in simpler installations without a dedicated control processor.

How are failed LED tiles replaced?

LED modules are hot-swappable from the front of the display. The included suction tool removes the tile without demounting the display. Calibrated spare tiles are included in the box for immediate color-matched replacement.

What warranty coverage applies?

The LDE108-123 carries a 3-year limited warranty. Contact ViewSonic or your authorized reseller for details on coverage terms and available on-site service programs.

Can this display be used in a lobby or public space?

Yes. The IP54 front ingress rating and IK06 impact rating make it appropriate for lobbies and public areas where the display may be exposed to incidental contact or cleaning. The 24/7 operation rating and 100,000-hour LED lifespan support continuous operation in these environments.
