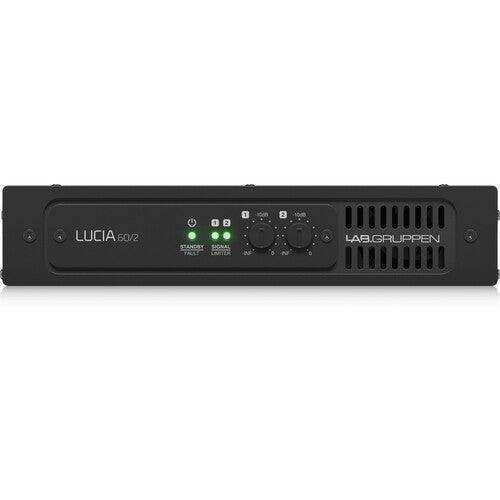

Lab Gruppen LUCIA 60/2 Compact Amplifier for Installations (2 x 30W) - LUCIA 60/2

Product Overview

The Lab Gruppen LUCIA 60/2 is a 2-channel, 60W Class-D installation amplifier for small commercial AV spaces where compact form factor, onboard DSP, and localized amplification are priorities. Delivering 2x30W into loads from 2 to 16 ohms, it is suited to huddle rooms, small conference rooms, and ancillary spaces with modest speaker loads and a single stereo audio source. The LUCIA 60/2 is the entry-level stereo model in Lab Gruppen's LUCIA decentralized amplification series.

Product Description

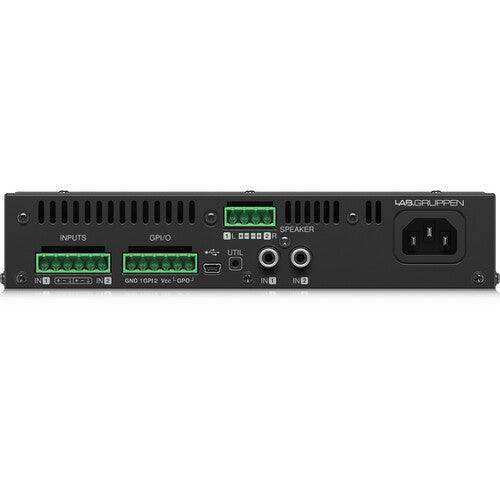

The LUCIA 60/2 provides 2x30W of Class-D stereo amplification in a half-rack enclosure designed for installation near the speaker load. It is part of Lab Gruppen's LUCIA platform, which eliminates long cable runs from a central equipment room by placing the amplifier, DSP, and I/O adjacent to the speaker system in each room or zone. The amplifier accepts a balanced Euroblock line input and dual RCA unbalanced inputs, covering professional AV and consumer source equipment. Speaker outputs use Euroblock screw terminals. Onboard DSP includes equalization, automatic dynamic loudness contouring, and auto load sense, which measures the connected speaker impedance and automatically configures the variable power limiter for continuous speaker protection without manual adjustment. A 6-pin GPIO block supports external control system integration for muting, triggering, or basic level management. The included wall-mount bracket enables deployment behind displays, under tabletops, or inside podiums. Rack mounting in pairs uses the optional LUCIA-RACKKIT. The LUCIA 60/2 is a cost-effective, reliable starting point for AV integrators deploying multiple small-room audio systems on commercial projects where source switching at the amplifier is not required.

Key Features

• 2x30W Class-D Output — 60W total across two channels into 2, 4, 8, or 16 ohm loads; appropriate for small speaker loads in huddle rooms and compact meeting spaces.
• Built-in DSP — Onboard equalization and dynamic processing eliminates the need for an external DSP device in straightforward single-source installations.
• Auto Load Sense — Automatically detects speaker impedance and sets the variable power limiter to protect connected speakers.
• Automatic Dynamic Loudness Contouring — Preserves tonal balance at reduced volume levels without manual EQ changes.
• GPIO Control Block — 6-pin GPIO I/O port for connection to room control systems (Crestron, Extron, AMX) for remote muting or triggering.
• Configuration Wizard — Simplifies commissioning and reduces programming time across multi-room installations.
• Balanced and Unbalanced Inputs — Euroblock balanced and dual RCA unbalanced inputs for source flexibility.
• Half-Rack Compact Enclosure — Installs behind displays, under tables, or in millwork; pairs into a 1RU rack slot with optional LUCIA-RACKKIT.

Typical Applications

• Huddle room
• Conference room
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: When should I choose the LUCIA 60/2 instead of the LUCIA 60/2M?

A: The LUCIA 60/2 is the right choice when a single stereo source feeds the room and no input selection or mixing is needed at the amplifier. If you need to route or blend multiple sources (e.g., a videoconferencing system and a media player), choose the LUCIA 60/2M, which includes the 4x4 integrated matrix.

Q: Is 2x30W enough for a small huddle room?

A: For small huddle rooms up to approximately 150-200 square feet with one or two ceiling or wall speakers, 2x30W is generally sufficient for background audio and speech reinforcement. Larger or louder rooms should consider the LUCIA 120/2 or LUCIA 240/2.

Q: Does the LUCIA 60/2 support 70V speaker systems?

A: No. It is a low-impedance amplifier supporting 2, 4, 8, and 16 ohm speaker loads. For 70V distributed audio, use the LUCIA 60/1-70.

Q: Can the LUCIA 60/2 be integrated with a room control system?

A: Yes. The 6-pin GPIO block allows connection to Crestron, Extron, AMX, and similar control systems for muting, volume control, and power triggering.

Q: What is the warranty?

A: The LUCIA 60/2 carries a 5-year limited warranty from Lab Gruppen.
