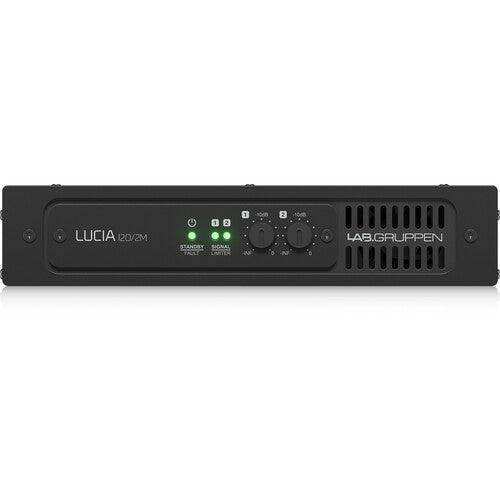

Lab Gruppen LUCIA 120/2M Compact Matrix Amplifier for Installations (2 x 60W) - LUCIA120/2M

Product Overview

The Lab Gruppen LUCIA 120/2M is a 2-channel, 120W matrix installation amplifier designed for commercial AV spaces requiring source routing capability at the amplifier without additional DSP hardware. Delivering 2x60W with an integrated 4x4 mix-matrix, it suits conference rooms, huddle rooms, and training spaces where two or more audio sources need to be selected or blended at the amplifier. The LUCIA 120/2M is part of Lab Gruppen's decentralized amplification platform, placing processing and amplification near the speaker load.

Product Description

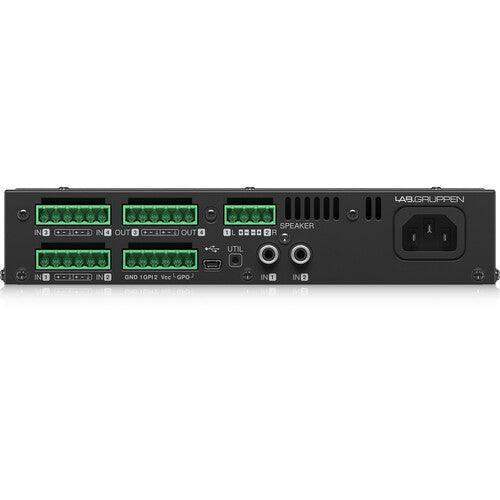

The LUCIA 120/2M provides the same 4x4 matrix routing capability as the LUCIA 240/2M in a lower-output package suited to smaller rooms and speaker loads. With 2x60W of Class-D output power into loads from 2 to 16 ohms, this amplifier handles conference rooms, training rooms, and huddle spaces where moderate output levels are appropriate and source flexibility matters. The integrated 4x4 mix-matrix accepts up to four audio inputs — two balanced Euroblock and two unbalanced RCA — and routes them to the two output channels in configurable combinations. This replaces a standalone matrix processor in many standard commercial AV installations. Onboard DSP includes equalization, automatic dynamic loudness contouring, and auto load sense for speaker protection without manual calibration. A balanced line output allows signal pass-through to additional zones or amplifiers, and the 6-pin GPIO block supports integration with room control systems for external muting or triggering. The half-rack enclosure deploys with the included wall-mount bracket behind displays, under tables, or in ceiling spaces; rack integration requires the optional LUCIA-RACKKIT. The LUCIA 120/2M is the appropriate choice for integrators specifying a moderately-powered, matrix-capable installation amplifier for smaller commercial spaces.

Key Features

• Integrated 4x4 Mix-Matrix — Routes and mixes up to four audio sources to two output channels at the amplifier level, eliminating the need for a separate matrix processor.
• 2x60W Class-D Output — 120W total across two channels into 2, 4, 8, or 16 ohm loads with efficient Class-D topology.
• Built-in DSP — Onboard equalization and dynamic processing reduces external equipment in the signal chain.
• Auto Load Sense — Detects connected speaker impedance and automatically configures the variable power limiter for speaker protection.
• Balanced Line Output — Passes processed signal to additional zones or downstream amplifiers for scalable multi-zone installations.
• GPIO Control Block — 6-pin GPIO I/O port for integration with room control systems including Crestron, Extron, and AMX.
• Configuration Wizard — Guided setup reduces commissioning time for integrators on multi-room projects.
• Half-Rack Compact Enclosure — Deploys behind displays, under tables, or in millwork; rack-mountable in pairs with optional LUCIA-RACKKIT.

Typical Applications

• Conference room
• Huddle room
• Training room
• Boardroom
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: When should I choose the LUCIA 120/2M over the LUCIA 120/2?

A: Choose the LUCIA 120/2M when your installation requires matrix routing — for example, blending a videoconferencing audio feed with background music, or selecting between multiple source inputs. The LUCIA 120/2 is appropriate when a single stereo source is sufficient and no input switching is needed.

Q: How does the 4x4 matrix work?

A: The 4x4 matrix allows any combination of up to four audio inputs to be routed to the two amplified output channels with configurable gain levels per input-to-output path. This is set up via the Lab Gruppen configuration wizard during commissioning.

Q: Is 2x60W sufficient for a standard conference room?

A: For most commercial conference rooms up to approximately 500 square feet with ceiling or wall speakers, 2x60W provides adequate headroom. Larger rooms, highly reverberant spaces, or applications requiring higher SPL should consider the LUCIA 240/2M.

Q: Can the GPIO port be used with Crestron or AMX control?

A: Yes. The 6-pin GPIO block is compatible with standard control system outputs for muting, volume control, or zone triggering. Refer to the Lab Gruppen LUCIA installation guide for signal specifications.

Q: Does this amplifier support 70V distributed speakers?

A: No. The LUCIA 120/2M is a low-impedance amplifier. For 70V distributed speaker systems, use the LUCIA 120/1-70.

Q: What is the warranty?

A: The LUCIA 120/2M carries a 5-year limited warranty from Lab Gruppen.
