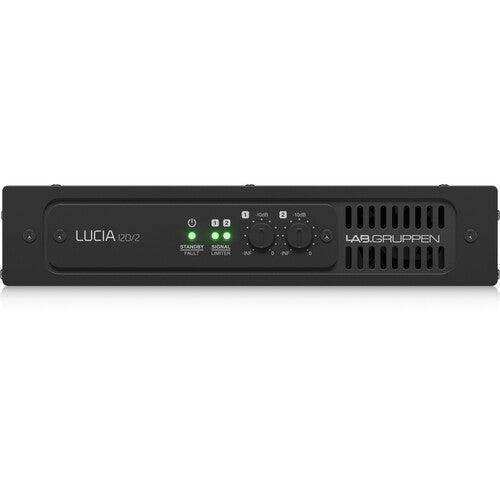

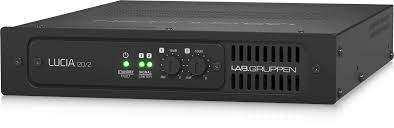

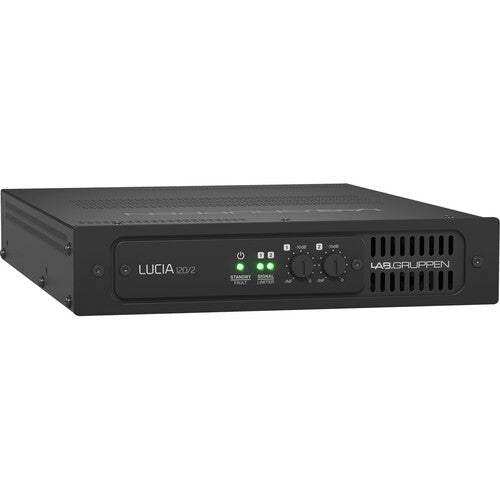

Lab Gruppen LUCIA 120/2 Compact Amplifier for Installations (2 x 60W) - LUCIA120/2

Product Overview

The Lab Gruppen LUCIA 120/2 is a 2-channel, 120W Class-D installation amplifier designed for commercial AV applications requiring localized stereo amplification in small to medium-sized spaces. Delivering 2x60W into loads from 2 to 16 ohms, it fits conference rooms, huddle rooms, and training spaces where a single stereo source is sufficient and compact form factor is a priority. The LUCIA 120/2 provides onboard DSP, auto load sense, and GPIO control capability without the matrix routing of the /2M variant.

Product Description

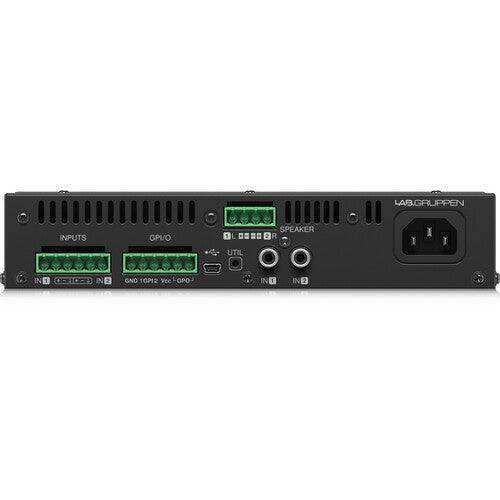

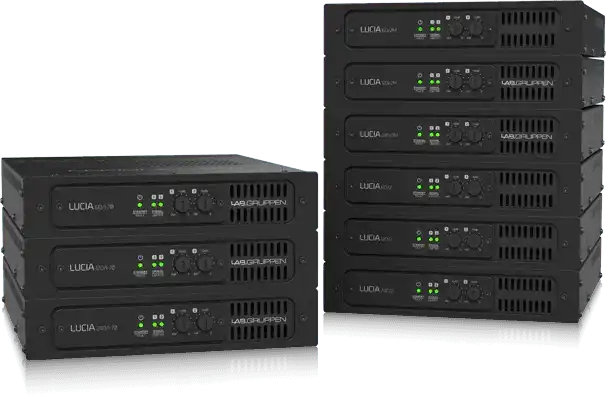

The LUCIA 120/2 delivers 2x60W of Class-D amplification in a half-rack enclosure designed for installation in proximity to the speaker load. It belongs to Lab Gruppen's LUCIA decentralized amplification platform, which places processing, amplification, and I/O near the speaker system rather than in a centralized rack room — reducing cable runs and system complexity. The amplifier accepts a balanced Euroblock line input and dual RCA unbalanced inputs, covering both professional AV and consumer source connections. Speaker outputs are via Euroblock screw terminals rated for 2 to 16 ohm loads. Onboard DSP includes equalization, automatic dynamic loudness contouring, and auto load sense, which measures the connected speaker impedance and automatically sets the variable power limiter. A 6-pin GPIO block allows integration with room control systems for external muting or triggering without additional hardware. The included wall-mount bracket enables concealed deployment behind displays, under tables, or inside podiums. For rack installations, the optional LUCIA-RACKKIT accepts two LUCIA amplifiers per 1RU. The LUCIA 120/2 is the straightforward choice for integrators specifying a reliable, DSP-equipped 2-channel installation amplifier for small commercial AV spaces where source routing is not required.

Key Features

• 2x60W Class-D Output — Delivers 120W total across two channels into 2, 4, 8, or 16 ohm loads with efficient amplifier topology suited to concealed installations.
• Built-in DSP — Comprehensive onboard signal processing including equalization and dynamics reduces dependency on external processors.
• Auto Load Sense — Automatically measures speaker impedance and configures the variable power limiter for ongoing speaker protection.
• Automatic Dynamic Loudness Contouring — Maintains tonal balance at lower volume levels in ambient commercial environments.
• GPIO Control Block — 6-pin GPIO I/O for integration with room control systems; supports muting, triggering, and basic level control.
• Configuration Wizard — Guided commissioning simplifies setup for integrators on multi-room deployments.
• Balanced and Unbalanced Inputs — Euroblock balanced and dual RCA unbalanced inputs accommodate professional and consumer sources.
• Half-Rack Compact Enclosure — Concealed deployment behind displays or in millwork; pairs into a standard rack bay with optional LUCIA-RACKKIT.

Typical Applications

• Conference room
• Huddle room
• Training room
• Boardroom
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: When is the LUCIA 120/2 the right choice over the LUCIA 120/2M?

A: The LUCIA 120/2 is the right choice when you have a single stereo audio source feeding the amplifier and do not need to switch or mix between multiple inputs. If source routing or input selection is required at the amplifier, choose the LUCIA 120/2M which includes the 4x4 integrated mix-matrix.

Q: Is 2x60W adequate for a small conference room?

A: For conference rooms up to approximately 300-400 square feet with ceiling or wall speakers, 2x60W provides sufficient headroom for speech reinforcement and background music. Larger or noisier spaces should consider the LUCIA 240/2 (2x120W).

Q: Does the LUCIA 120/2 support 70V speakers?

A: No. The LUCIA 120/2 is a low-impedance amplifier supporting 2, 4, 8, and 16 ohm loads. For 70V distributed audio, use the LUCIA 120/1-70.

Q: Can I integrate the LUCIA 120/2 with a control system?

A: Yes. The 6-pin GPIO block allows connection to room control systems (Crestron, Extron, AMX, etc.) for remote muting, volume adjustment, or power triggering.

Q: What warranty does the LUCIA 120/2 carry?

A: The LUCIA 120/2 carries a 10-year limited warranty from Lab Gruppen, reflecting its suitability for permanent commercial installation environments.

Q: How is the LUCIA 120/2 installed physically?

A: The included wall-mount bracket allows deployment behind video displays, under tabletops, inside podiums, or in ceiling spaces. For rack environments, the optional LUCIA-RACKKIT supports two LUCIA units per 1RU in a standard 19" rack.
