Lab Gruppen FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON) - FP7000/SP

Product Overview

The Lab Gruppen FP 7000 SP is a 7,000W two-channel professional power amplifier built on Lab Gruppen's patented Class-TD output stage, with NomadLink network monitoring and Neutrik speakON twist-lock speaker outputs. It delivers high output power in a 2 RU rack-mount chassis, making it well-suited for touring PA systems, permanent sound reinforcement installations, and high-power fill or monitor applications where reliable Class-TD amplification and network monitoring are required. The speakON output connectors provide the secure, locking connections standard in professional touring environments.

Product Description

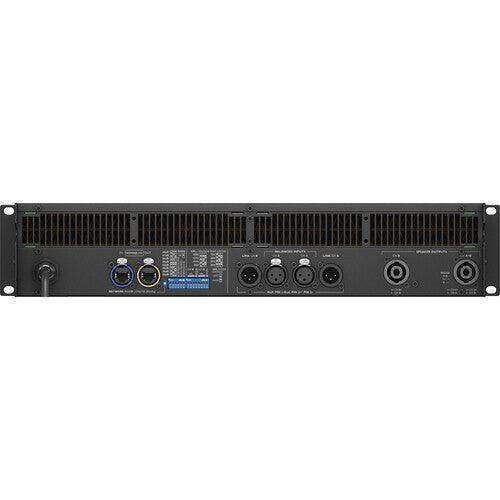

The Lab Gruppen FP 7000 SP is the speakON-equipped two-channel variant from the FP series, using the same patented Class-TD output stage that defines the FP line's reputation for high output power and sonic transparency. Class-TD combines the low-distortion characteristics of Class-B amplifier operation with the thermal efficiency of Class-D, allowing the FP 7000 SP to deliver substantial output power while managing heat load effectively within a 2 RU chassis. The amplifier accepts two balanced XLR inputs and provides two XLR balanced line thru/outputs, allowing signal daisy-chaining across multiple amplifiers in a rack without the need for an additional distribution point. Neutrik speakON NL4 connectors on the speaker outputs provide the secure twist-lock connections required in touring applications where cable security during performance is critical. NomadLink network connectivity via two etherCON RJ45 ports enables remote monitoring and control over a standard Ethernet connection using Lab Gruppen's system management software, giving FOH and system engineers visibility into amplifier status and fault conditions without physically accessing the rack. The per-channel Voltage Peak Limiter (VPL) is adjustable to match the output characteristics to any loudspeaker load, from subwoofers to high-frequency compression drivers. Comprehensive protection circuitry including DC, short-circuit, thermal, and overload protection ensures reliable operation across the temperature and load conditions encountered in live sound touring. The FP 7000 SP ships with a power cord and rear rack support brackets for immediate rack deployment.

Key Features

• 7,000W Total Output Power — Two-channel Class-TD amplification in a 2 RU chassis for touring and installation use.
• Class-TD Amplifier Topology — Lab Gruppen's patented design combining Class-B sonic transparency with Class-D thermal efficiency.
• speakON Output Connectors — Neutrik speakON NL4 twist-lock speaker outputs for secure connections in touring rigs.
• NomadLink Network Monitoring — Two etherCON RJ45 ports for remote monitoring and control over Ethernet.
• XLR Line Thru/Output — Two XLR male balanced line thru outputs for daisy-chaining in multi-amplifier systems.
• Voltage Peak Limiter (VPL) — Per-channel adjustable limiter to optimize output for any loudspeaker load.
• Selectable Input Gain — Per-channel gain adjustment for system alignment.
• Comprehensive Circuit Protection — DC, short-circuit, thermal, and overload protection.
• 2 RU Rack-Mount Chassis — Ships with power cord and rear rack support brackets.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FP 7000 SP and the FP 14000 BP?

A: The FP 7000 SP is a 7,000W two-channel unit with speakON twist-lock outputs, while the FP 14000 BP delivers 14,000W with binding post outputs. The FP 14000 BP also supports bridged mono operation up to 14,000W into 4 ohms, making it suited for the highest-demand single-driver or subwoofer applications. The FP 7000 SP is the appropriate choice where 7,000W of two-channel output with speakON connectors fits the system design.

Q: Does the FP 7000 SP include onboard DSP?

A: No. The FP 7000 SP does not include onboard DSP. For loudspeaker management including crossovers, EQ, delay, and limiting, an external DSP processor must be used upstream of the amplifier. NomadLink provides remote monitoring only, not audio processing.

Q: What is NomadLink networking on the FP 7000 SP?

A: NomadLink is Lab Gruppen's proprietary control and monitoring network protocol. It allows system operators to monitor amplifier status and fault conditions from a connected PC. It does not carry audio signals and is separate from Dante or AES networking.

Q: Why choose the SP (speakON) version over a binding post version?

A: The speakON connector locks into the chassis with a quarter-turn, preventing accidental disconnection during a performance. This is the preferred output format in touring applications where cables are frequently connected and disconnected and cable security during a show is critical.

Q: Can the FP 7000 SP be used in a permanent installation?

A: Yes. The FP series is appropriate for both touring and installation contexts. In permanent installations, speakON-terminated speaker cables are commonly used and the FP 7000 SP integrates well into any professional speaker wiring infrastructure using NL4 connectors.

Q: How much rack space is required?

A: The FP 7000 SP occupies 2 rack units (2 RU) in a standard 19-inch equipment rack. Rear rack support brackets are included.

Q: What is included in the box?

A: The FP 7000 SP ships with a power cord and rear rack support brackets.
