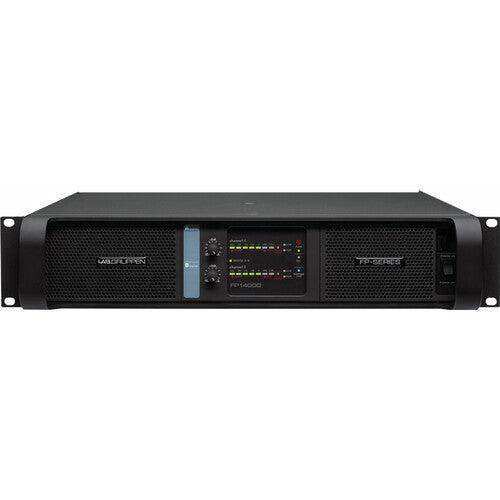

Lab Gruppen FP 14000 BP 14,000W 2-Channel Amplifier with NomadLink Networking (Binding Post) - FP14000/BP

Product Overview

The Lab Gruppen FP 14000 BP is a 14,000W two-channel professional power amplifier built on Lab Gruppen's patented Class-TD output stage, with NomadLink network monitoring and binding post speaker outputs. It delivers up to 7,000W per channel at 2 ohms in stereo mode, and up to 14,000W bridged at 4 ohms, making it one of the highest-output two-channel amplifiers in the FP series. The binding post output format suits touring rigs and permanent installations that use bare wire, spade-lug, or banana plug speaker cable terminations. The FP 14000 BP is an established choice for high-power touring and installation applications where the FP series' proven Class-TD circuitry and NomadLink remote management are valued.

Product Description

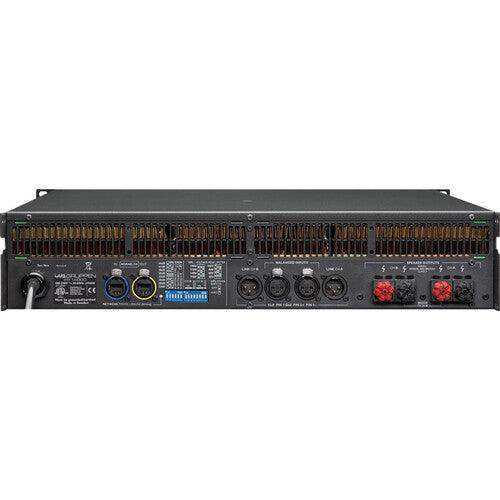

The Lab Gruppen FP 14000 BP is the binding post-equipped variant of the FP series' flagship two-channel model. Its Class-TD output topology — Lab Gruppen's patented design that combines the sonic transparency of Class-B with the thermal efficiency of Class-D — delivers 7,000W per channel into 2 ohms with both channels driven, and 14,000W bridged into 4 ohms. This makes the FP 14000 BP a practical choice for driving high-power subwoofers, large line-array elements, or other high-demand speaker loads in touring systems and fixed installations alike. Input connections are two balanced XLR inputs, with two XLR line thru/outputs for daisy-chaining in multi-amplifier rigs. Two pairs of binding post terminals on the rear panel accommodate four-conductor bare wire or standard spade and banana connectors per channel. NomadLink network connectivity is provided via two etherCON RJ45 ports, enabling remote monitoring and control over a standard Ethernet connection using Lab Gruppen's system management software. The Voltage Peak Limiter (VPL) is adjustable per channel, allowing optimization of output levels and loudspeaker protection for any load. Lab Gruppen's comprehensive circuit protection suite — including DC, short-circuit, thermal, and overload protection — ensures reliable operation in demanding environments. The FP 14000 BP occupies 2 RU and ships with power cord and rear rack support brackets.

Key Features

• 14,000W Bridged Output — 7,000W per channel at 2 ohms stereo, up to 14,000W bridged into 4 ohms for maximum subwoofer or speaker drive.
• Class-TD Amplifier Topology — Lab Gruppen's patented design combining Class-B sonic purity with Class-D thermal efficiency.
• Binding Post Speaker Outputs — Two pairs of binding post terminals for bare wire, spade-lug, or banana plug speaker connections.
• NomadLink Network Monitoring — Two etherCON RJ45 ports for remote monitoring and control over Ethernet.
• XLR Line Thru/Output — Two XLR male balanced line thru outputs for signal daisy-chaining in multi-amplifier configurations.
• Voltage Peak Limiter (VPL) — Per-channel adjustable limiter optimizes output for any loudspeaker load from subwoofers to HF compression drivers.
• Selectable Input Gain — Per-channel gain adjustment without external attenuation.
• Comprehensive Circuit Protection — DC, short-circuit, thermal, and overload protection for reliable touring and installation use.
• 2 RU Rack-Mount Chassis — Ships with power cord and rear rack support brackets.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Q: What is NomadLink and what does it provide on the FP 14000 BP?

A: NomadLink is Lab Gruppen's proprietary network monitoring protocol. The two etherCON RJ45 ports allow system operators to monitor amplifier status, channel operation, and fault conditions remotely via a connected PC running compatible Lab Gruppen network management software. NomadLink is distinct from Dante audio networking — it carries control and monitoring data, not audio signals.

Q: How does the FP 14000 BP differ from the PLM series amplifiers?

A: The FP 14000 BP is a two-channel amplifier without onboard Lake DSP or Dante audio networking. It relies on NomadLink for remote monitoring only. The PLM series amplifiers include full Lake DSP processing and Dante/AES67 network audio routing. The FP 14000 BP is appropriate when an external DSP processor (such as a Lake LMX unit) handles signal processing, and the amplifier is used purely for high-power output.

Q: Can the FP 14000 BP be used in bridged mode?

A: Yes. In bridged mono mode, the FP 14000 BP delivers up to 14,000W into 4 ohms or 8,800W into 8 ohms, making it appropriate for driving a single high-power subwoofer or speaker element from a single amplifier channel.

Q: What is the Voltage Peak Limiter and how should it be set?

A: The VPL is a per-channel adjustable limiter that clamps output voltage to protect loudspeakers from excessive drive levels. It should be set to match the maximum rated input voltage of the connected loudspeaker or crossover system. Lab Gruppen provides guidance in the product manual for VPL calibration.

Q: Does the FP 14000 BP have onboard DSP?

A: No. The FP 14000 BP does not include onboard DSP. For loudspeaker management including crossovers, EQ, and limiting, an external DSP processor must be used upstream of the amplifier.

Q: How much rack space does the FP 14000 BP require?

A: The unit occupies 2 rack units (2 RU) in a standard 19-inch equipment rack. Rear rack support brackets are included.

Q: What is included in the box?

A: The FP 14000 BP ships with a power cord and rear rack support brackets.
