Lab Gruppen FAD1202 2 x 120 Watt Commercial Amplifier with Direct Drive Technology, Dante Networking and Energy Star Certification - 000-DA802-00010

Product Overview

The Lab Gruppen FAD1202 is a 2-channel, 2x120W commercial power amplifier with Direct Drive Technology and Dante network audio, designed for IP-based distributed audio in mid-size commercial installations. It delivers 70V/100V constant-voltage audio directly over Ethernet without requiring external output transformers, making it an efficient choice for networked background music systems in corporate offices, educational facilities, retail environments, and hospitality spaces. The FAD1202 is Dante Domain Manager ready for deployment in managed enterprise Dante networks.

Product Description

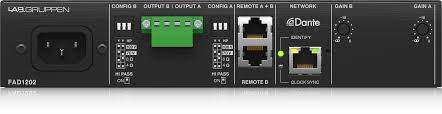

The FAD1202 provides 120 watts per channel across two independently switchable output zones, each configurable for low-impedance (4/8 ohm) or high-impedance (70V/100V) operation via rear-panel dipswitch. Lab Gruppen's Direct Drive Technology delivers 70V or 100V distributed audio from the amplifier stage directly, eliminating the need for a separate step-up transformer and reducing both rack space and installation labor. A Dante network interface transports audio over standard Cat5e/Cat6 Ethernet, replacing long analog audio cable runs with a scalable IP audio infrastructure that integrates with existing building network switches. Dante Domain Manager compatibility allows IT and AV teams to manage the FAD1202 within a secured, role-based Dante network domain alongside other DDM-enrolled devices. Fanless convection cooling ensures completely silent operation, appropriate for open-plan offices, hotel rooms, and conference environments where fan noise would be disruptive. Auto Ramp circuitry enables signal-activated power-on and transitions the unit to sleep after 20 minutes of inactivity, supporting Energy Star certification and reducing operating costs in spaces with intermittent audio use. The unit mounts in a standard 19-inch rack as a 1U half-rack unit, or can be wall- or table-mounted using the included joining brackets.

Key Features

• Dante Network Audio — IP audio transport over standard Ethernet replaces analog audio runs with scalable network infrastructure.
• Direct Drive Technology — Outputs 70V/100V distributed audio without an external output transformer, reducing cost and installation complexity.
• 2x120W Dual-Zone Output — Powers two independent speaker zones at up to 120W per channel across 4/8 ohm or 70V/100V loads.
• Dante Domain Manager Ready — Supports centralized, secure management of Dante networks in enterprise and institutional environments.
• Fanless Convection Cooling — Silent operation suitable for occupied offices, hotel spaces, and conference rooms.
• Auto Ramp & Sleep Mode — Signal-activated power-on and 20-minute sleep timer for energy-efficient operation.
• Energy Star Certified — Meets commercial energy efficiency standards for institutional and green building procurement.

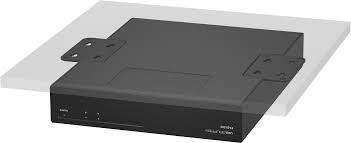

• Flexible Mounting — Half-rack 1U enclosure with brackets for rack, wall, or table installation.

Typical Applications

• Corporate office Dante background music systems
• Hotel room and corridor networked audio distribution
• Educational campus distributed audio over IP
• Retail background music with Dante infrastructure
• Conference room and boardroom networked audio
• Government facility IP audio distribution
• House of worship multi-zone Dante audio

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FAD1202 and the FAD2402?

A: Both are 2-channel Dante amplifiers with Direct Drive Technology. The FAD2402 delivers 240W per channel versus 120W per channel for the FAD1202. Choose the FAD1202 for smaller rooms or shorter 70V speaker runs, and the FAD2402 for larger spaces or higher speaker tap totals.

Q: Does the FAD1202 require an output transformer for 70V speaker systems?

A: No. Direct Drive Technology outputs 70V or 100V directly from the amplifier, eliminating the need for an external output transformer. Standard 70V speaker tap transformers at each speaker are still required.

Q: How does the FAD1202 receive audio from a Dante network?

A: The FAD1202 connects to a standard managed Ethernet switch via its RJ-45 Dante port. Audio is routed from any Dante-enabled source device to the FAD1202 using Dante Controller software, which runs on a Windows or macOS computer on the same network.

Q: Is the FAD1202 compatible with Dante Domain Manager?

A: Yes. The FAD1202 is DDM Ready, supporting secure enrollment in a Dante Domain Manager-managed network with role-based access control and centralized device management.

Q: Can the two output channels run different impedance loads?

A: Yes. Each output channel is independently switchable between low-impedance (4/8 ohm) and high-impedance (70V/100V) via rear-panel dipswitches, allowing mixed speaker system configurations from a single unit.

Q: What network switch is required for Dante?

A: Dante operates on standard Gigabit Ethernet using Cat5e or Cat6 cabling. A managed switch with QoS (Quality of Service) prioritization is recommended for reliable audio performance, though Dante will function on unmanaged switches in small installations.
