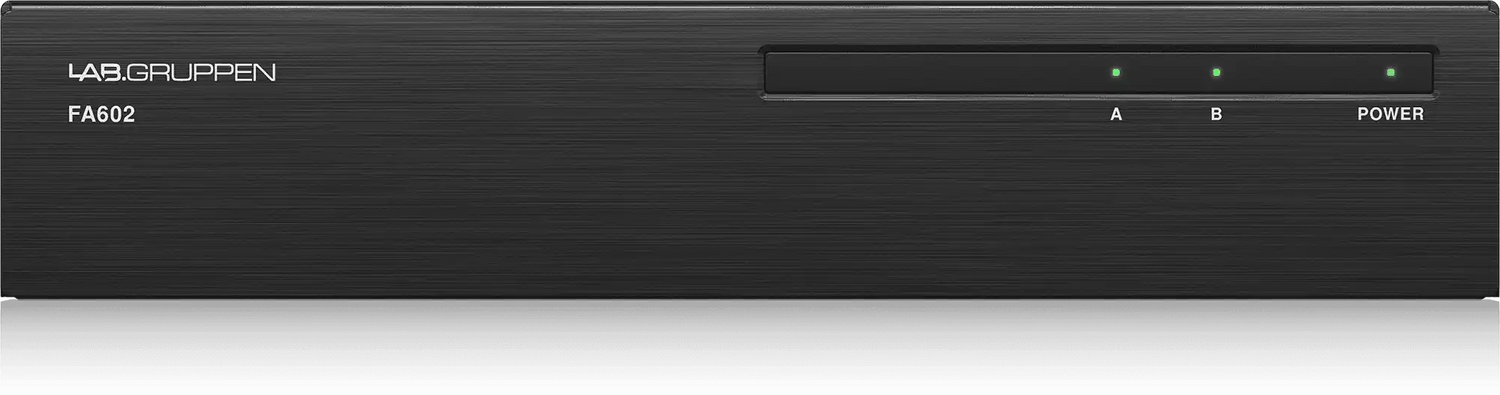

Lab Gruppen FA602 2 x 60W Commercial Amplifier with Direct Drive Technology and Energy Star Certification - 000-DA302-00010

Product Overview

The Lab Gruppen FA602 is a 2-channel, 2x60W commercial power amplifier with Direct Drive Technology and Energy Star certification, designed for permanent installation in small commercial distributed audio systems. It delivers 70V/100V constant-voltage audio directly without an external output transformer, making it a cost-effective and space-efficient amplification solution for small retail areas, hotel rooms, small conference rooms, and office background music zones. The FA602 is the analog counterpart to the FAD602, suited for installations where Dante network audio is not required.

Product Description

The FA602 provides 60 watts per channel across two independently switchable output zones, each configurable for low-impedance (4/8 ohm) or high-impedance (70V/100V) constant-voltage speaker loads via rear-panel dipswitch. Direct Drive Technology outputs 70V or 100V distributed audio directly from the amplifier stage, eliminating the need for a separate step-up output transformer and reducing installation cost for small commercial zones. Balanced analog Euroblock inputs accept signals from DSPs, zone controllers, and commercial mixer outputs. A switchable high-pass filter per channel protects small commercial ceiling and pendant speakers from low-frequency content. Fanless convection cooling provides completely silent operation, and Auto Ramp circuitry with a 20-minute sleep timer supports Energy Star compliance in spaces with variable occupancy. The unit ships with joining brackets for 1U half-rack, wall, or table mounting. The FA602 is appropriate as an amplification endpoint for small zones in commercial AV systems where an upstream DSP or zone controller handles signal routing.

Key Features

• Direct Drive Technology — Outputs 70V/100V distributed audio without an external output transformer, simplifying small-zone installations.
• 2x60W Dual-Zone Output — Powers two independent speaker zones at up to 60W per channel across 4/8 ohm or 70V/100V loads.
• Switchable High-Pass Filter — Per-channel HPF protects small commercial ceiling speakers from low-frequency overload.
• Balanced Analog Inputs — Euroblock connectors accept balanced signals from DSPs, zone controllers, and commercial mixers.
• Energy Star Certified — Meets commercial energy efficiency standards with Auto Ramp and sleep mode power management.
• Fanless Convection Cooling — Silent operation with no moving parts for noise-sensitive small commercial spaces.
• Auto Ramp & Sleep Mode — Signal-activated power-on and 20-minute sleep timer for energy-efficient operation.
• Flexible Mounting — Half-rack 1U enclosure with brackets for rack, wall, or table installation.

Typical Applications

• Small retail area dual-zone background music amplification
• Hotel room and small corridor distributed audio
• Small conference room and huddle room background music
• Corporate satellite audio zone amplification
• Small office and reception background music
• House of worship small room audio amplification
• Educational facility small classroom background music

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FA602 and the FAD602?

A: Both are 2x60W Direct Drive amplifiers with the same power output and 70V/100V capability. The FAD602 adds a Dante network audio interface for IP audio distribution. The FA602 uses only analog Euroblock inputs and is suited for non-networked installations where Dante is not required.

Q: Does the FA602 require an output transformer for 70V speaker systems?

A: No. Direct Drive Technology outputs 70V or 100V directly from the amplifier stage. Standard 70V speaker tap transformers at each speaker are still required, but no amplifier-side transformer is needed.

Q: How many speakers can the FA602 drive per channel at 70V?

A: Each channel provides 60W at 70V. Total speaker tap wattage per channel must not exceed 60W. With 5W speaker taps, up to 12 speakers per channel can be supported.

Q: Is the FA602 suitable for wall mounting near speaker zones?

A: Yes. The included brackets support wall installation, allowing the FA602 to be mounted close to the speaker zone to minimize speaker cable length while a standard analog balanced audio cable runs from the upstream equipment.

Q: Can both output channels be configured for different impedances?

A: Yes. Each output channel is independently switchable between low-impedance (4/8 ohm) and high-impedance (70V/100V) via rear-panel dipswitches, so the two channels can serve different speaker configurations simultaneously.

Q: Is the FA602 fan-cooled?

A: No. The FA602 uses fanless convection cooling with no moving parts, providing completely silent operation suitable for hotel rooms, small offices, and conference rooms.
