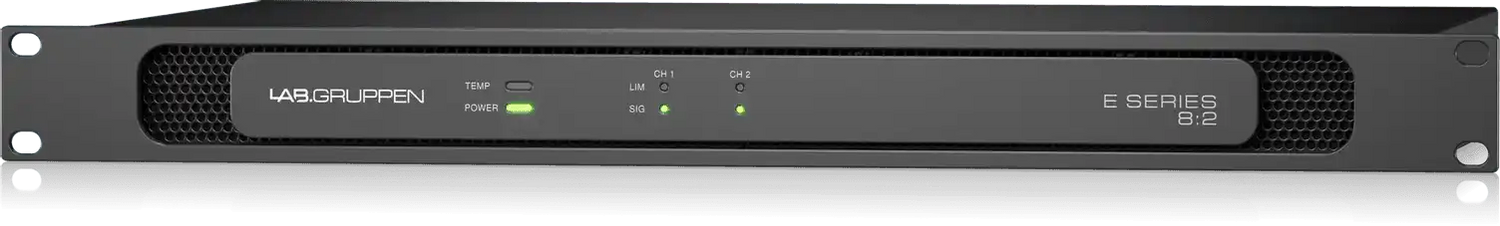

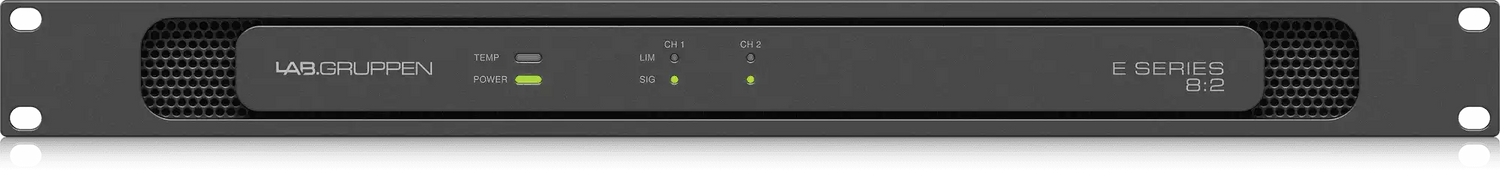

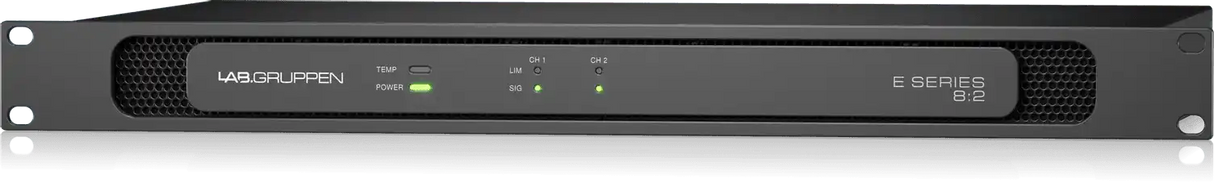

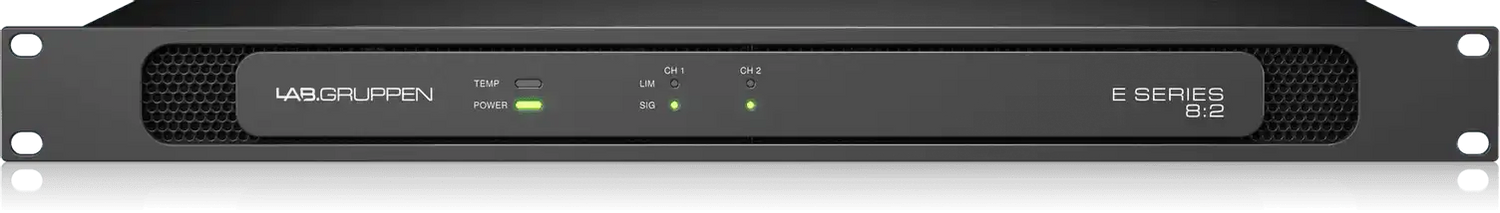

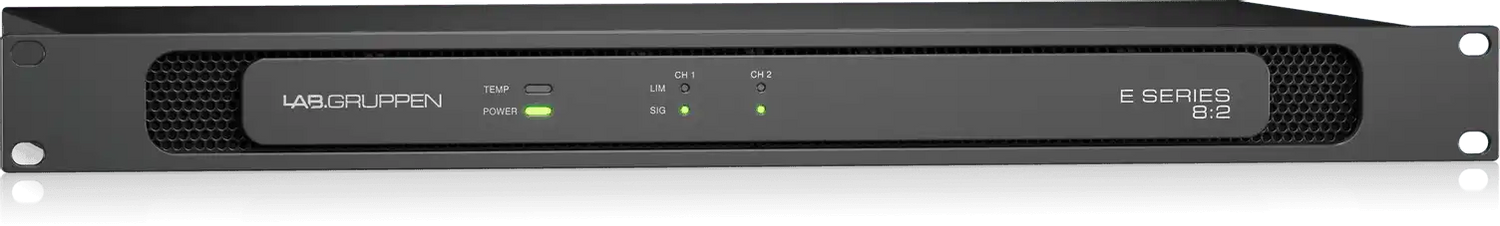

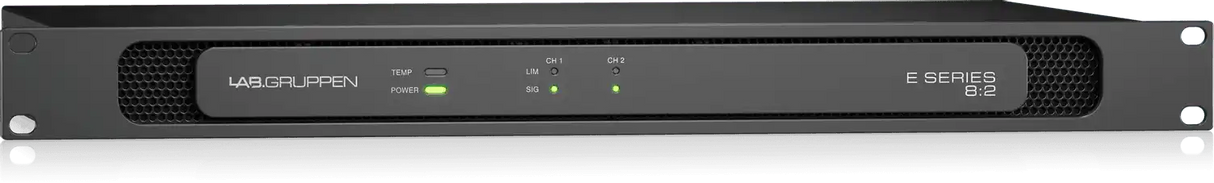

Lab Gruppen E8:2 Ampllfier 2-Channel Power Amplifier with Low Impedance and 70-100V Operation - 000-DFF02-00010

Lab GruppenSKU: 000-DFF02-00010
No reviews

Description

The E 8:2 from Lab Gruppen is an 800W amplifier carrying 2 flexible output channels in a high power density, 1 rack unit form factor that saves rack space and system cost. Flexible IntelliDrive permits delivering the 2 x 400W at constant voltage 70V or low-impedance (2, 4, and 8 ohms) on any channel. Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization, while comprehensive fail-safe circuit protection ensures continued operation even under reduced operating conditions. The E 8:2’s Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads. Additional features include a built-in 50Hz high pass filter selectable per channel, a per-channel attenuation knob and signal LED on the rear panel for simple commissioning, efficient cooling with temperature-controlled fans, and much more.

  • 2-channel, 800W power amplifier for installation applications
  • Flexible IntelliDrive permits 4x250W at constant voltage 70V or low-impedance on any channel
  • Asymmetric channel loading allows mixing and matching loads with different impedances
  • High-efficiency amp with low power consumption and minimal heat
  • Comprehensive fail-safe circuit protection
  • Number of channels: 2
  • Max total output all channels driven: 800 W
  • Peak output voltage per channel: 100 V / 70 Vrms
  • Max. output current per channel: 16 Arms
  • Max. Output Power Per Channel (All Channels Driven):
    • 2 ohms (Lo-Z mode): 400
    • 4 ohms (Lo-Z mode): 400
    • 8 ohms (Hi-Z mode): 400
    • 16 ohms (Hi-Z mode): 290
    • 70 V (Hi-Z mode): 400
    • 8 ohms (Lo-Z mode): 200
    • 16 ohms (Lo-Z mode): 100
  • Performance:
    • THD: 20 Hz - 20 kHz for 1 W
    • THD at 1 kHz and 1 dB below clipping:
    • Signal To Noise Ratio: >112 dBA
    • Channel separation (Crosstalk) at 1 kHz: >70 dB
    • Frequency response: 2 Hz - 40 kHz
    • Input impedance: 20 kOhm
    • Common Mode Rejection (CMR): 50 dB
    • Output impedance: 25 mOhm
    • Limit and gain switch (per channel) 2 pos: Lo-Z and Hi-Z
    • VPL for Hi-Z mode: 100 V
    • VPL for Lo-Z mode: 56.6 V
    • Sensitivity for 70 V out in Hi-Z mode: 4 dBu
    • Sensitivity for full power into 4/8/16 ohms in Lo-Z mode: 4 dBu
    • Gain in Hi-Z mode: 35.2 dBu
    • Gain in Lo-Z mode: 30.3 dB
    • Level adjustment (per channel) Rear panel potentiometer detented from -infto: 0 dB

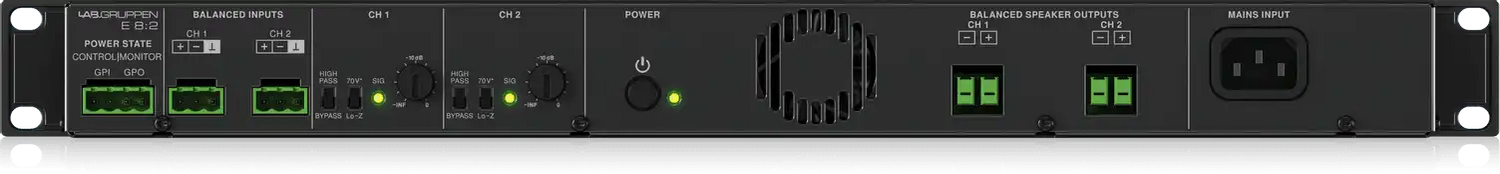

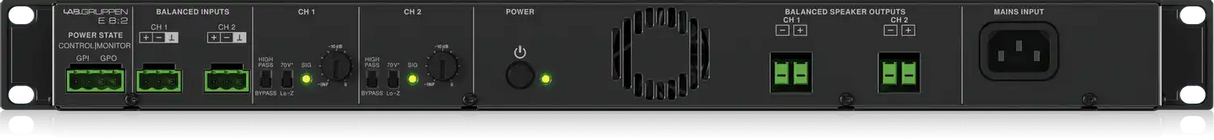

  • Connectors and switches:
    • Input connectors (per ch.): 3-pin detachable screw terminals, electronically balanced
    • Output connectors (per ch.): 2-pin detachable screw terminals
    • High pass filter: Fixed at 50 Hz, switchable per channel
    • Power control: Can be used to go between standby and ON
    • GPI (power control input): Contact closure type, 2-pin detachable screw terminal, controls the power state
    • GPO (power state output): Contact closure type, 2-pin detachable screw terminal, for external monitoring of the power state
    • Cooling Single fan, front to rear airflow, no filter required, temperature controlled speed
  • Power:
    • Nominal voltage: 100-240 VAC
    • Operating voltage: 60-265 VAC
    • Standby consumption:< 1W
    • Mains connector: IEC inlet
  • Dimensions: W: 483 mm (19"), H: 44 mm (1 U), D: 276 mm (10.9")
  • Weight: 4.1 kg (9 lbs.)
  • Finish: Dark grey aluminum front and black steel chassis
  • Approvals: CE
  • Warranty: 3 years, components and factory workmanship.
