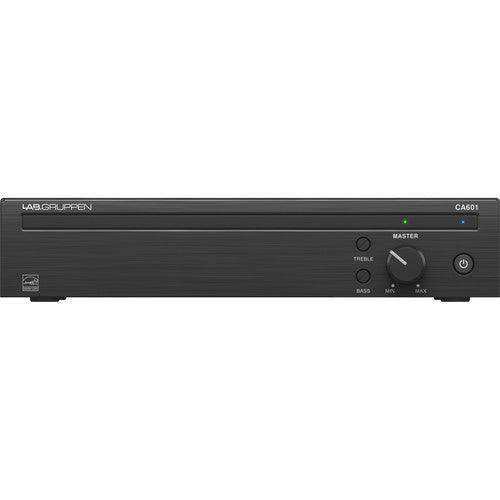

Lab Gruppen CA601 60W Commercial Amplifier with Energy Star Certification

Product Overview

The Lab Gruppen CA601 is a single-channel, 60W commercial power amplifier with Energy Star certification, designed for permanent installation as a compact single-zone amplification endpoint in small commercial distributed audio systems. It accepts a balanced analog signal from an upstream DSP, zone controller, or commercial mixer and delivers 70V/100V or low-impedance audio to a small commercial speaker system, providing reliable single-zone amplification at an accessible price point. The CA601 is the entry-level single-channel model in the CA series and is appropriate for hotel rooms, small offices, small retail areas, and other compact single-zone commercial spaces.

Product Description

The CA601 provides 60 watts into a single output channel, switchable between low-impedance (4/8 ohm) and high-impedance (70V/100V) constant-voltage operation via rear-panel dipswitch. A balanced analog Euroblock input accepts line-level signals from commercial DSPs, zone controllers, and mixer amplifiers. Rear-panel dipswitches configure output voltage and input gain for straightforward installer setup without software. A switchable 80Hz high-pass filter protects small commercial ceiling and pendant speakers from low-frequency content. Auto Ramp circuitry activates the CA601 automatically when input signal is detected and enters sleep mode after 20 minutes of inactivity, maintaining Energy Star compliance and reducing operating costs in spaces with variable occupancy. Fanless convection cooling provides completely silent operation appropriate for hotel rooms, private offices, and other quiet commercial spaces. The unit ships with joining brackets for rack, wall, or table mounting as a 1U half-rack unit. As a pure single-channel power amplifier, the CA601 is most effective when paired with an upstream DSP or zone controller that handles signal routing, mixing, and equalization in a structured commercial AV system design.

Key Features

• 60W Single-Zone Output — Delivers clean single-channel amplification for small commercial speaker zones at 4/8 ohm or 70V/100V.
• Energy Star Certified — Meets commercial energy efficiency standards with Auto Ramp and sleep mode power management.
• Switchable 80Hz High-Pass Filter — Protects small commercial ceiling and pendant speakers from low-frequency overload.

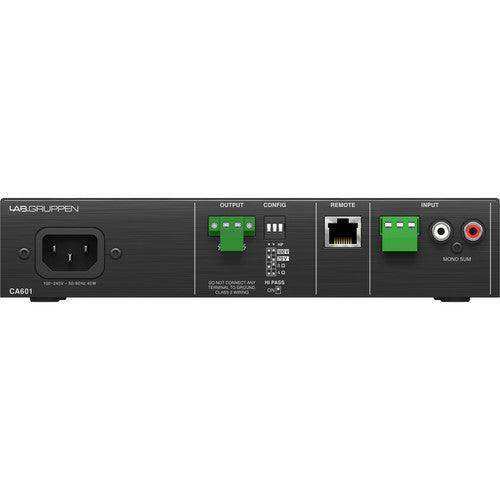

• Rear-Panel Dipswitch Configuration — Output voltage and input gain configurable via dipswitches for straightforward installer setup.
• Balanced Analog Input — Euroblock connector accepts balanced signals from DSPs, zone controllers, and commercial mixers.
• Fanless Convection Cooling — Completely silent operation with no moving parts for noise-sensitive commercial environments.
• Auto Ramp & Sleep Mode — Signal-activated power-on and 20-minute inactivity sleep timer for energy-efficient operation.
• Flexible Mounting — Half-rack 1U enclosure with brackets for rack, wall, or table installation.

Typical Applications

• Hotel room single-zone background music amplification
• Small retail area single-zone distributed audio
• Private office and small conference room background music
• Huddle room and small meeting space audio
• Corporate satellite single-zone audio amplification
• House of worship small room background music
• Government facility and institutional small room audio

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the CA601 and the CA602?

A: The CA602 is a 2-channel unit delivering 60W per channel across two independent zones. The CA601 provides 60W into a single output channel for applications where only one speaker zone is needed. Both share the same power rating per channel, form factor, and Energy Star certification.

Q: What is the difference between the CA601 and the CA1201?

A: Both are single-channel Energy Star commercial power amplifiers. The CA1201 provides 120W versus 60W for the CA601. Choose the CA601 for small rooms with lower total speaker tap wattage, and the CA1201 for larger single-zone spaces.

Q: Does the CA601 include a mixer?

A: No. The CA601 is a single-input power amplifier. For multi-source mixing or paging capability, pair it with a Lab Gruppen CM41 mixer or choose a CMA1201 mixer amplifier instead.

Q: Can the CA601 drive a 70V speaker system?

A: Yes. The output is switchable to 70V or 100V constant-voltage operation via rear-panel dipswitch. Standard 70V tap transformers at each speaker are required; no external amplifier-side transformer is needed.

Q: How many speakers can the CA601 support on a 70V circuit?

A: Total speaker tap wattage must not exceed 60W. With 5W speaker taps, up to 12 speakers can be connected; with 8W taps, up to 7 speakers.

Q: Is the CA601 suitable for installation in a hotel room or private office?

A: Yes. Fanless convection cooling provides completely silent operation, and the compact half-rack form factor allows discreet mounting in small equipment enclosures, furniture, or wall brackets near the speaker zone.

Q: Does the CA601 have any remote control capability?

A: The CA601 is configured via rear-panel dipswitches. Remote volume control or GPIO integration would require an upstream zone controller or DSP that supports remote management.
