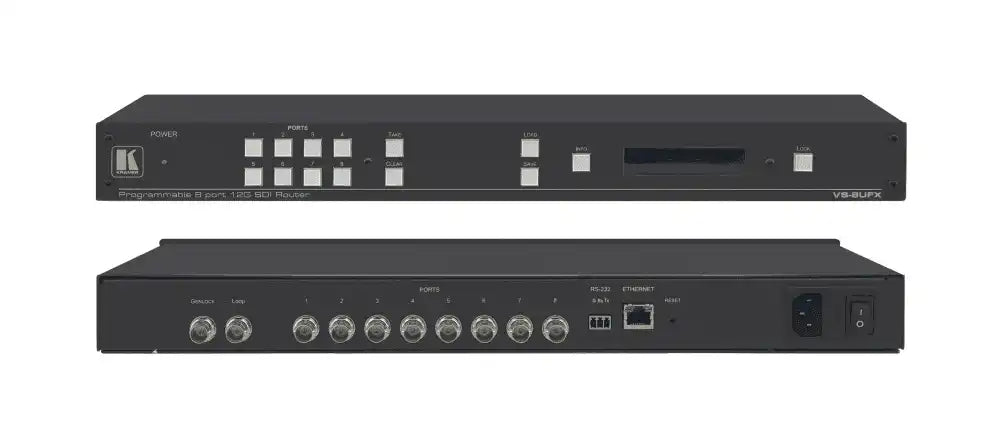

Kramer VS-8UFX 8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs
Kramer VS-8UFX 8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer VS-8UFX 8–Port 12G SDI Matrix Switcher with Interchangeable ...
Product Overview
The Kramer VS-8UFX is an 8-port 12G-SDI matrix switcher with interchangeable inputs and outputs, designed for broadcast facilities, production studios, and high-density commercial AV environments requiring flexible SDI signal routing. Its interchangeable I/O architecture allows integrators to configure the matrix with the exact combination of 12G, 6G, 3G, HD, and SD-SDI ports required for their specific installation. The VS-8UFX is suited for facilities that need to future-proof their SDI infrastructure while working with both legacy and 4K UHD signal formats.
Product Description
The interchangeable I/O design of the VS-8UFX differentiates it from fixed-format SDI matrices. Integrators can populate inputs and outputs with the appropriate SDI card types to match current equipment, and reconfigure the matrix as infrastructure evolves without replacing the chassis. This flexibility is particularly valuable in broadcast environments where signal formats vary across sources and destinations. The matrix routes any of up to 8 SDI inputs to any combination of outputs, with automatic format detection eliminating the need for manual configuration when sources change. RS-232 and Ethernet control allow integration with broadcast automation systems and third-party control platforms. The chassis is designed for rack installation in standard 19-inch broadcast and AV equipment racks.
Key Features
- Interchangeable I/O Cards — Configurable input and output cards allow custom SDI format combinations for each installation.
- 12G-SDI Support — Routes 4K UHD 12G-SDI alongside 6G, 3G, HD, and SD-SDI formats within a single matrix.
- 8-Port Capacity — Up to 8 configurable SDI ports for mid-size broadcast and production signal routing.
- Automatic Format Detection — Detects incoming SDI format automatically; no manual input configuration required.
- RS-232 & Ethernet Control — Supports integration with broadcast automation and third-party control systems.
- Rack-Mount Chassis — Designed for 19-inch rack installation in broadcast and commercial AV equipment rooms.
Typical Applications
- Broadcast studio SDI signal routing
- Live event and production facility signal management
- House of worship video production SDI infrastructure
- Government broadcast and secure facility AV systems
- Post-production SDI distribution
Technical Specifications
| Specification | Detail |
|---|---|
| SDI Ports | Up to 8 (interchangeable I/O) |
| SDI Formats | 12G / 6G / 3G / HD / SD-SDI |
| Connectors | BNC (75Ω) |
| Control | RS-232, Ethernet |
| Form Factor | Rack-mount, 19-inch |
Frequently Asked Questions
- Can I mix 12G and 3G-SDI ports in the same matrix?
- Yes. The interchangeable I/O architecture allows different SDI format cards to coexist within the VS-8UFX chassis, enabling mixed-format environments.
- How many inputs and outputs can be configured?
- The total port count is 8, configurable as inputs or outputs depending on the I/O cards installed. Refer to the Kramer datasheet for specific card availability and slot rules.
- What control systems are compatible?
- The VS-8UFX supports RS-232 and Ethernet control, making it compatible with Crestron, AMX, and other third-party control systems with appropriate drivers.
- Does it support 4K signals?
- Yes. The 12G-SDI card option supports single-link 4K UHD signal routing.
- What warranty applies?
- Kramer provides a 3-year limited warranty. Contact Creation Networks for warranty and technical support.
