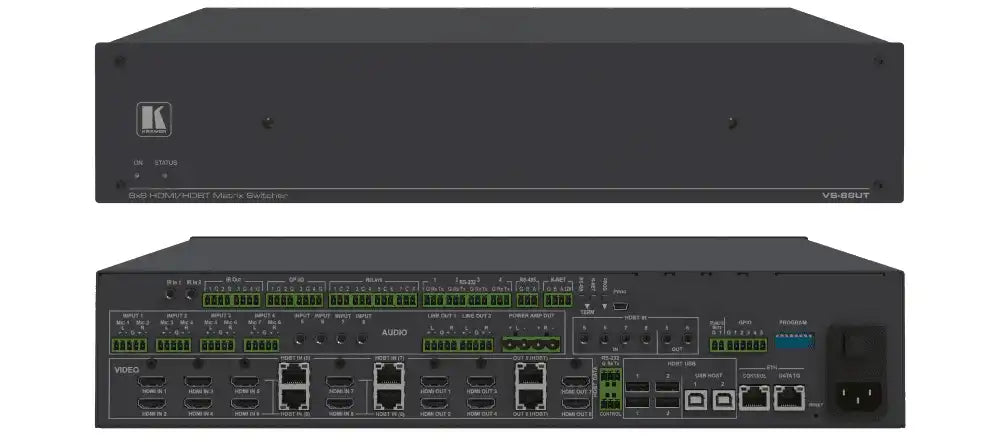

Kramer VS-88UT 8x8 HDMI/HDBT Matrix Switcher

Product Overview

The Kramer VS-88UT is an 8x8 HDMI and HDBaseT matrix switcher that routes eight HDMI sources to eight HDBaseT and HDMI outputs for large conference rooms, boardrooms, multi-room AV systems, and commercial AV installations. It combines HDMI input switching with HDBaseT output distribution, enabling simultaneous delivery of any source to any display over long-distance Cat cabling. The VS-88UT is designed for corporate campuses, education facilities, and any environment requiring centralized distribution of eight video sources to eight display destinations.

Product Description

The VS-88UT accepts eight HDMI sources and provides eight outputs, including HDBaseT outputs for long-distance distribution to remote displays over Cat 5e/6 cabling. HDBaseT outputs carry HDMI video, audio, RS-232, IR, and Ethernet over a single Cat cable to compatible HDBaseT receivers, eliminating the need to run multiple cables to each display location. The matrix can be controlled via RS-232, IR, Ethernet, and the front panel, and integrates with Crestron, AMX, and other third-party control systems via standard control protocols. This makes it suitable for centrally managed AV systems in corporate campuses, higher education, and government facilities. The VS-88UT’s HDBaseT outputs allow display placement at distances up to 70m or more from the equipment rack, providing significant flexibility in room layout without dedicated HDMI cable pulls.

Key Features

• 8x8 Matrix Switching — Routes any of 8 HDMI inputs to any combination of 8 outputs for full matrix flexibility.
• HDBaseT Outputs — Distributes HDMI, audio, RS-232, IR, and Ethernet to remote displays over a single Cat 5e/6 cable per output.
• Long-Distance Distribution — HDBaseT outputs reach up to 70m+ from the rack to connected displays without signal degradation.
• RS-232, IR & Ethernet Control — Multiple control interfaces for integration with any commercial AV control system.
• Front Panel Control — Local input/output selection via front panel buttons for technician and in-room use.
• Rack-Mount Design — Standard 19-inch rack installation for AV equipment rooms and closets.

Typical Applications

• Corporate campus multi-room AV distribution
• Conference center and large boardroom systems
• Higher education AV distribution infrastructure
• Government facility centralized AV switching
• Multi-purpose room and all-hands space video distribution

Technical Specifications

Frequently Asked Questions

Can all 8 outputs show different sources simultaneously?

Yes. The VS-88UT is a true matrix switcher — each output can independently display any of the 8 inputs simultaneously or in any combination.

What receivers are compatible with the HDBaseT outputs?

Compatible Kramer HDBaseT receivers include the TP-580R, TP-789R, and similar Kramer HDBaseT wall plate and box receivers. Third-party HDBaseT receivers may also work but compatibility should be verified.

What control system drivers are available?

Kramer provides RS-232 protocol documentation for integration with Crestron, AMX, and other control systems. Contact Creation Networks or check Kramer’s website for available control drivers.

What is the maximum HDMI input resolution?

The exact input resolution specification should be confirmed in the Kramer VS-88UT product datasheet. The unit is designed for commercial HD and UHD environments.

What warranty applies?

Kramer provides a 3-year limited warranty. Contact Creation Networks for warranty support and professional installation assistance.
