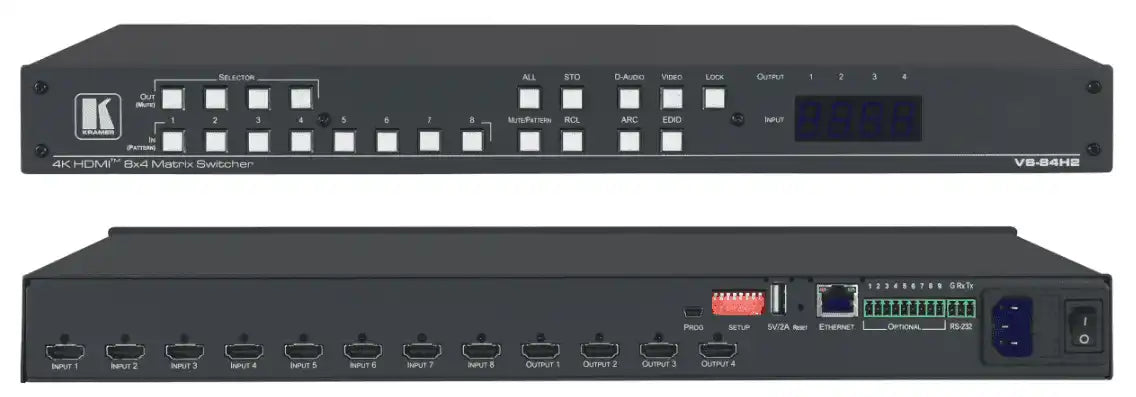

Kramer VS-84H2 8x4 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing
Kramer VS-84H2 8x4 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer VS-84H2 8x4 4K HDR HDCP 2.2 Matrix Switcher with Digital Aud...
Product Overview
The Kramer VS-84H2 is an 8x4 4K HDR HDCP 2.2 matrix switcher with digital audio routing, providing eight HDMI inputs and four HDMI outputs for boardrooms, conference rooms, and multi-display commercial AV systems. It is suited for asymmetric routing environments where eight source devices need to be distributed to four display destinations, with independent digital audio routing available alongside video switching. The VS-84H2 is appropriate for AV installations that require a high source count with a smaller number of display zones.
Product Description
The 8x4 configuration makes the VS-84H2 practical in installations where multiple sources — room PC, wireless presentation system, video conferencing codec, document camera, and media players — need to share access to a smaller number of displays or zones. Digital audio routing allows audio to be sent independently to a DSP or amplifier zone without being tied to video routing decisions. All inputs and outputs support 4K HDR and HDCP 2.2, maintaining signal quality and content protection compliance throughout the signal chain. Control via RS-232, Ethernet, and front panel enables integration with room automation systems. The rack-mount design suits centralized AV equipment rooms serving single or multiple adjacent spaces.
Key Features
- 8x4 Matrix Configuration — Eight HDMI inputs to four HDMI outputs for high source count installations with fewer display destinations.
- 4K HDR & HDCP 2.2 — Full 4K Ultra HD HDR support with HDCP 2.2 content protection compliance.
- Digital Audio Routing — Independent digital audio output routing for separate audio zone management.
- RS-232 & Ethernet Control — Compatible with Crestron, AMX, and third-party room control systems.
- Front Panel Operation — Local input/output selection and status indication.
Typical Applications
- Conference room multi-source switching to fewer display zones
- Boardroom AV with multiple input devices and display outputs
- Training room multi-source video distribution
- Corporate campus shared AV infrastructure
- Government meeting room AV systems
Technical Specifications
| Specification | Detail |
|---|---|
| Matrix | 8x4 |
| Inputs | 8x HDMI (4K HDR, HDCP 2.2) |
| Outputs | 4x HDMI |
| Audio | Digital audio routing |
| Control | RS-232, Ethernet, Front Panel |
| Form Factor | Rack-mount, 19-inch |
Frequently Asked Questions
- Why would I choose an 8x4 over an 8x8 matrix?
- An 8x4 matrix is appropriate when you have more sources than displays. It reduces cost compared to an 8x8 while still providing full flexibility to route any input to any of the 4 outputs.
- Does independent audio routing require a separate DSP?
- The VS-84H2 provides independent digital audio routing outputs. A separate DSP or amplifier is needed to process and amplify the audio signals for speaker delivery.
- What control system integrations are supported?
- RS-232 and Ethernet control are available. Kramer provides protocol documentation for Crestron, AMX, and other control platforms. Contact Creation Networks for driver availability.
- Is HDCP 2.2 supported on all outputs?
- Yes. All HDMI outputs support HDCP 2.2 for compliant content protection throughout the signal chain.
- What warranty applies?
- Kramer provides a 3-year limited warranty. Contact Creation Networks for support and installation guidance.
