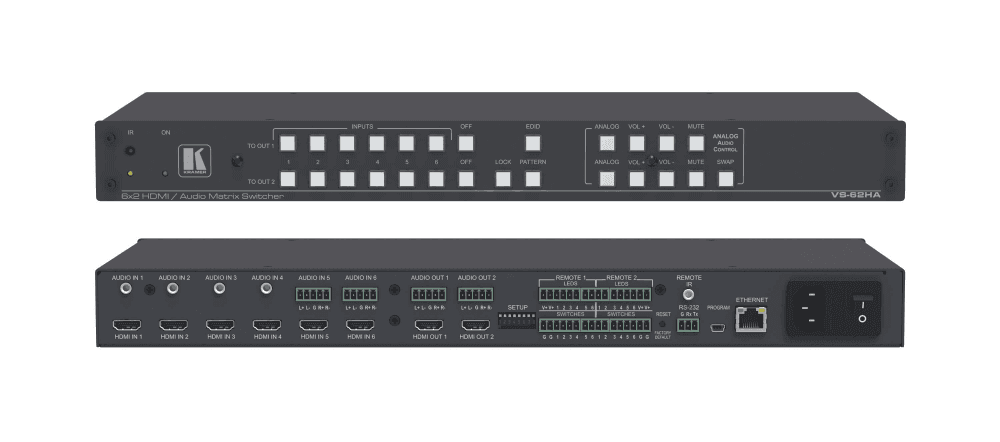

Kramer VS-62HA 6x2 4K60 4:2:0 HDMI/Audio Automatic Matrix Switcher

Product Overview

The Kramer VS-62HA is a 6x2 4K60 4:2:0 HDMI and audio automatic matrix switcher designed for conference rooms, training rooms, and commercial AV installations requiring automatic source selection with independent audio routing. It combines intelligent auto-switching — automatically selecting the active HDMI input — with the ability to route audio to an output independent of the video signal. The VS-62HA is suited for systems where two display zones or destinations need access to any of six sources with minimal manual intervention.

Product Description

The automatic switching capability of the VS-62HA reduces the complexity of presenter-driven conference rooms by detecting active HDMI signals and routing them to the appropriate output without manual control system commands. When multiple sources are active, the system follows configurable priority or last-connected logic. The independent audio routing provides flexibility for installations where a DSP or audio system must receive audio from a different source than the video output — for example, routing laptop audio to a conferencing DSP while the display shows a different source. 4K60 4:2:0 and HDCP 2.2 support ensures compatibility with current commercial display and source equipment. RS-232 and Ethernet control allow override and integration with room control systems when manual switching is required.

Key Features

• 6x2 Auto-Switching Matrix — Automatically routes active HDMI sources to outputs, reducing manual switching requirements.
• 4K60 4:2:0 HDMI 2.0 — Supports 4K UHD at 60Hz for current commercial display infrastructure.
• Independent Audio Routing — Audio output can be routed independently of video for DSP and audio system integration.
• HDCP 2.2 Compliant — Supports protected content for compliance with current source and display requirements.
• RS-232 & Ethernet Control — Control system integration for manual override and automation.

Typical Applications

• Conference room 6-source auto-switching to two display zones
• Training room multi-source video and audio distribution
• Boardroom AV with independent audio routing to DSP
• Corporate meeting space simplified source management
• Commercial multi-purpose room AV switching

Technical Specifications

Frequently Asked Questions

How does the automatic switching work?

The VS-62HA detects active HDMI signals on its inputs. When a new signal is detected, it can automatically route that input to an output based on configurable priority or last-connected logic. RS-232/Ethernet override is available.

Can audio be routed to a destination different from video?

Yes. The VS-62HA supports independent audio routing, allowing the audio output to be assigned a different source than the video output.

Does it support HDCP 2.2 on all inputs and outputs?

Yes. HDCP 2.2 is supported across all HDMI inputs and outputs.

What control systems are compatible?

RS-232 and Ethernet control are available for integration with Crestron, AMX, and other commercial control systems.

What warranty applies?

Kramer provides a 3-year limited warranty. Contact Creation Networks for warranty support and system design assistance.
