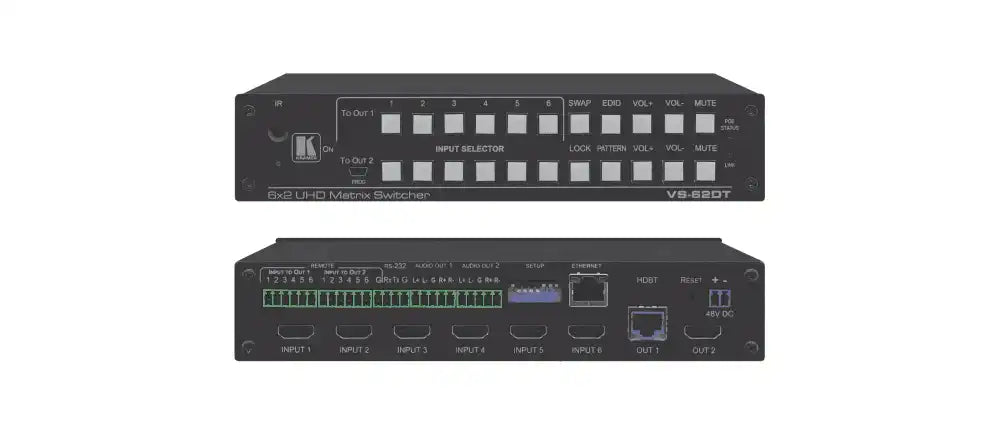

Kramer VS-62DT 6x2 UHD Matrix Switcher HDMI to HDMI & HDBaseT with PoE

Product Overview

The Kramer VS-62DT is a 6x2 UHD matrix switcher that combines HDMI and HDBaseT outputs with Power over Ethernet (PoE) for conference rooms and commercial AV systems distributing signals over Cat cabling. It routes any of six UHD HDMI sources to two outputs — including an HDBaseT output that powers a compatible PoE HDBaseT receiver over the same Cat cable — simplifying installation by eliminating the receiver power supply. The VS-62DT is suited for conference rooms where one or both displays are remotely located from the AV equipment rack.

Product Description

The HDBaseT output with integrated PoE allows the VS-62DT to power a compatible Kramer HDBaseT receiver at the display end directly through the Cat cable, removing the need for a local power supply at each remote receiver location. This reduces installation complexity and cable count at display mounting points. The second output provides either an additional HDMI or HDBaseT connection for local or remote display distribution. Six HDMI inputs accommodate a full complement of conference room sources, and RS-232 and Ethernet control enable integration with room control systems. The VS-62DT is a practical choice for conference rooms where one or both displays are wall-mounted or ceiling-mounted at distances requiring Cat cable distribution.

Key Features

• 6x2 Matrix with HDBaseT Output — Routes 6 UHD HDMI inputs to outputs including HDBaseT for long-distance Cat cable distribution.
• PoE (Power over Ethernet) — Powers compatible HDBaseT receivers through the Cat cable, eliminating receiver power supplies.
• UHD HDMI Inputs — Accepts UHD (4K) HDMI sources for current commercial display compatibility.
• RS-232 & Ethernet Control — Integrates with Crestron, AMX, and commercial control systems.

Typical Applications

• Conference room HDMI and HDBaseT dual-display systems
• Corporate meeting rooms with remote wall-mounted displays
• Training room distributed display infrastructure
• Boardroom mixed local and remote display configurations

Technical Specifications

Frequently Asked Questions

Which Kramer HDBaseT receivers are compatible with PoE from the VS-62DT?

Compatible receivers include Kramer PoE-capable HDBaseT receivers such as the TP-789R and similar models. Verify PoE compatibility with the specific receiver before system design.

What is the maximum HDBaseT distance?

HDBaseT distance is typically up to 70m at 1080p and 40m at 4K over Cat 6. Refer to the Kramer datasheet for exact VS-62DT HDBaseT distance specifications.

Can both outputs show different sources simultaneously?

Yes. Each output can be independently routed to any of the 6 inputs.

What warranty applies?

Kramer provides a 3-year limited warranty. Contact Creation Networks for warranty support.
