Kramer VM-2Hxl 1:2 HDMI Distribution Amplifier
Product Overview

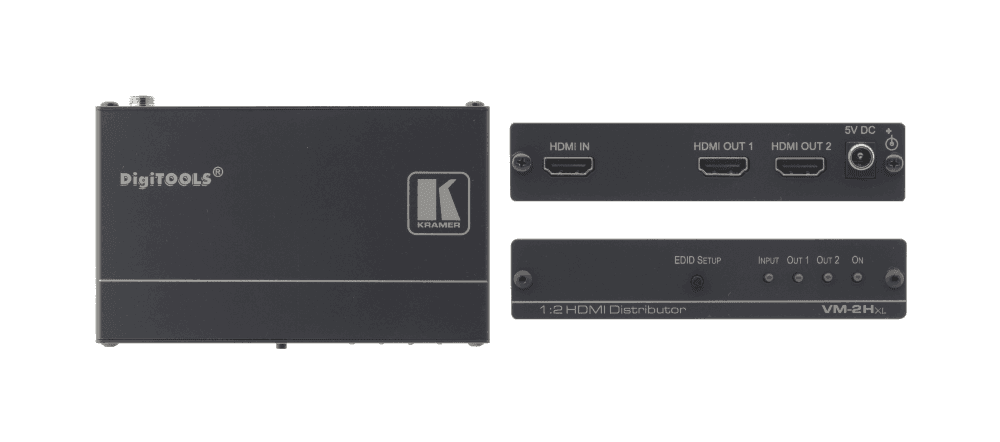

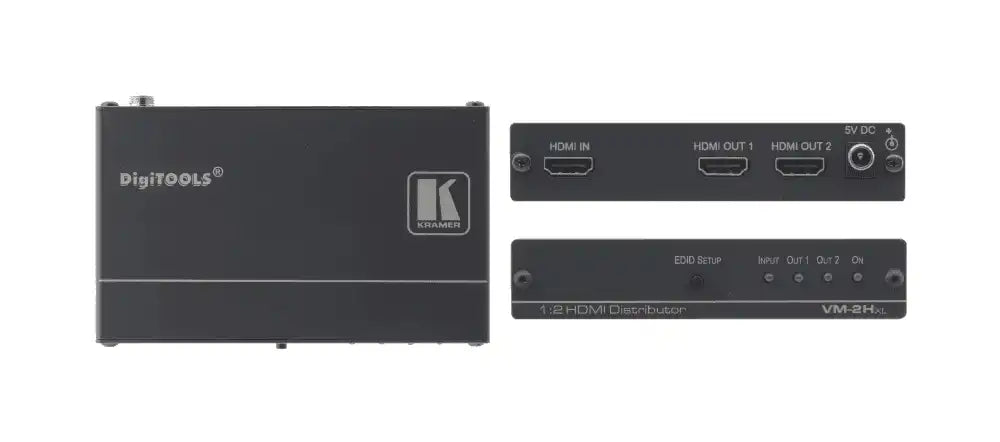

The Kramer VM-2Hxl is a compact 1:2 HDMI distribution amplifier that takes one HDMI input, reclocks and equalizes the signal using Kramer Equalization and re-Klocking technology, and distributes it to two identical HDMI outputs for dual-display installations in conference rooms, huddle spaces, and digital signage deployments. AV integrators use the VM-2Hxl as a simple, reliable HDMI DA for splitting one source to a local display and a downstream device, or distributing content to two displays simultaneously from a single source. Its DigiTOOLS form factor allows three units to be rack-mounted side-by-side in a 1U rack space with the optional rack adapter.
Key Features
- 1:2 HDMI Distribution — Distributes one HDMI input to two identical outputs with signal rebuilding.
- Kramer Equalization and re-Klocking — Rebuilds signal integrity on both outputs for extended cable reach.
- HDCP Compliant — Passes protected HDMI content to both outputs.
- HDMI Support — Deep Color, x.v.Color, Lip Sync, CEC pass-through.
- EDID Pass-Through — Automatic EDID management for plug-and-play operation.
- Active Output LED — Status indicator per output for quick diagnostics.
- DigiTOOLS Form Factor — 3 units mount side-by-side in 1U rack with optional RK-3T adapter.
Typical Applications
- Conference room or huddle room 1-to-2 display feed
- Digital signage dual-zone distribution from one player
- Training room source split to local and remote display
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI connector |
| Outputs | 2x HDMI connectors |
| Max Data Rate | 6.75Gbps (2.25Gbps per graphic channel) |
| Standards | HDMI, HDCP |
| HDMI Features | Deep Color, x.v.Color, Lip Sync, CEC |
| Form Factor | DigiTOOLS (3 units fit in 1U rack with optional RK-3T adapter) |
Frequently Asked Questions
Does the VM-2Hxl support 4K video?
The VM-2Hxl supports HDMI at 6.75Gbps bandwidth, covering 1080p60 and HD formats. For 4K HDR 1:2 HDMI distribution, see the Kramer VM-2H2 which supports 4K@60Hz and HDCP 2.2.
