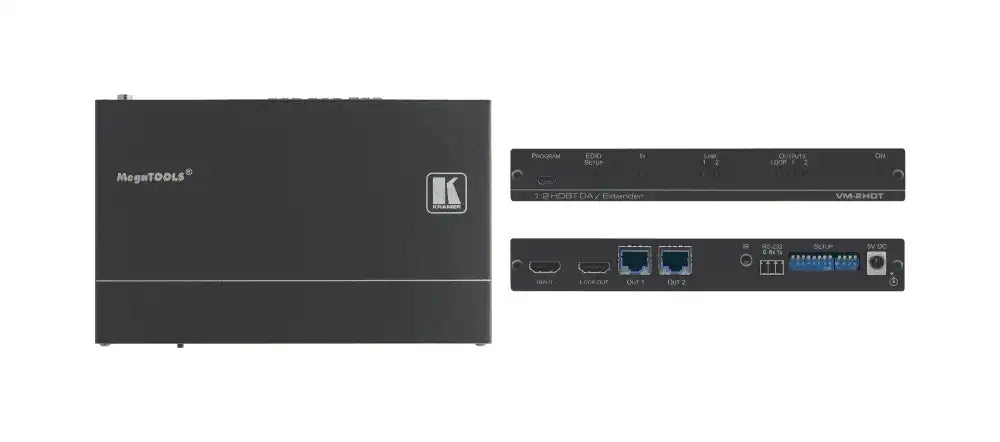

Kramer VM-2HDT 1:2 HDBaseT Extender Distributor
Product Overview
The Kramer VM-2HDT is a 1:2+1 HDBaseT extender distributor that takes one HDMI input with RS-232 and IR control signals, converts it to an HDBaseT extension signal, and distributes it to two HDBaseT outputs that connect to compatible HDBaseT receivers — plus an additional HDMI loop output for a local display or daisy-chaining to another unit. AV integrators deploy the VM-2HDT in installations where one HDMI source needs to feed two remote displays over structured Cat cabling, with RS-232 and IR control reach at each display location, and a local display connection maintained directly from the unit. It is HDBaseT standards-compliant and compatible with any market-available HDBaseT receiver, not just Kramer models.
Key Features
- 1:2 HDBaseT Distribution + HDMI Loop — Distributes HDMI to 2 HDBaseT outputs (up to 40m at 4K@60Hz 4:2:0) plus 1 HDMI loop for local or daisy-chain use.
- 4K@60Hz (4:2:0) Support — Distributes 4K video over HDBaseT extension line to compatible receivers.
- RS-232 and IR Extension — Bidirectional RS-232 and IR control signal pass-through on HDBaseT outputs for remote display management.
- Standard HDBaseT Compatibility — Works with any HDBaseT-compliant receiver on the market.
- HDMI Loop Output — Local HDMI output for monitoring or daisy-chaining additional distribution units.
Typical Applications
- Conference room source distribution to two remote displays over Cat cable
- University classroom dual-display HDBaseT distribution
- Corporate training room HDMI/HDBaseT split to two screens plus local monitor
- Digital signage two-zone HDBaseT distribution with local monitoring
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI; RS-232; IR |
| HDBaseT Outputs | 2x HDBaseT (up to 40m at 4K@60Hz 4:2:0) |
| HDMI Loop Output | 1x HDMI (local display or daisy-chain) |
| Max Resolution | 4K@60Hz (4:2:0) 24bpp |
| Control Extension | RS-232 bidirectional; IR bidirectional (on HDBaseT outputs) |
| HDBaseT Compliance | Standards-compliant; compatible with any HDBaseT receiver |
Frequently Asked Questions
What HDBaseT receivers work with the VM-2HDT?
The VM-2HDT is compatible with any HDBaseT-compliant receiver. Kramer TP-580R or TP-789R series receivers are recommended pairing options for full feature support. Contact Creation Networks at https://creationnetworks.net for receiver recommendations based on cable run distance.
Does the VM-2HDT support Power over HDBaseT?
The VM-2HDT does not provide PoHDBaseT to power remote receivers. A local power supply at each receiver position is required. For PoHDBaseT distribution, see the VM-218DT or VM-214DT series.
