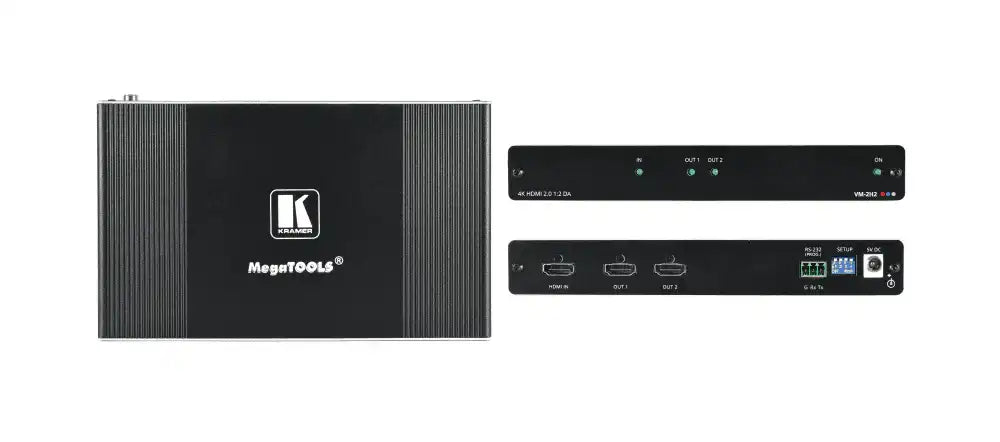

Kramer VM-2H2 4K HDMI 2.0 1:2 Distribution Amplifier
Kramer VM-2H2 4K HDMI 2.0 1:2 Distribution Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer VM-2H2 4K HDMI 2.0 1:2 Distribution Amplifier
Product Overview
The Kramer VM-2H2 is a 1:2 distribution amplifier for 4K HDR HDMI 2.0 signals with HDCP 2.2 compliance, splitting one HDMI source to two identical outputs for dual-display installations in conference rooms, digital signage deployments, and commercial AV systems that require 4K content distribution. It supports resolutions up to 4K HDR per HDMI 2.0 and passes all HDMI 2.0 audio formats including 7.1 PCM, Dolby TrueHD, and DTS-HD. Kramer Equalization and re-Klocking technology rebuilds the HDMI signal on both outputs for reliable delivery over extended cable runs.
Key Features
- 1:2 4K HDR HDMI 2.0 Distribution — Splits one 4K HDR input to two identical HDMI 2.0 outputs.
- HDCP 2.2 Compliant — Passes protected 4K content from premium HDMI sources.
- HDR Support — Distributes HDR10 content to both outputs.
- 7.1 PCM, Dolby TrueHD, DTS-HD Audio — Full HDMI 2.0 audio pass-through on both outputs.
- Kramer Equalization and re-Klocking — Rebuilds signal integrity on both outputs.
- CEC Pass-Through — CEC on Output 1 for display power control.
- EDID Management — I-EDIDPro for reliable source-display compatibility.
- Compact MegaTOOLS Form Factor — 2 units fit side-by-side in 1U rack with optional adapter.
Typical Applications
- Conference room 4K source split to display and recording system
- Digital signage 4K dual-zone distribution
- Boardroom 4K source feed to main and overflow display
- University classroom 4K projector and local monitor feed
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI connector |
| Outputs | 2x HDMI connectors |
| Max Data Rate | 17.82Gbps (5.94Gbps per graphic channel) |
| Max Resolution | 4K HDR per HDMI 2.0 |
| Standards | HDMI 2.0, HDCP 2.2, HDR10 |
| Audio | 7.1 PCM, Dolby TrueHD, DTS-HD, deep color, 3D, CEC (Output 1) |
| Form Factor | MegaTOOLS — compact desktop |
Frequently Asked Questions
What is the difference between VM-2H2 and VM-2Hxl?
The VM-2H2 supports 4K HDR at full HDMI 2.0 bandwidth (17.82Gbps) with HDCP 2.2. The VM-2Hxl supports HDMI at 6.75Gbps bandwidth (1080p60 and below) with HDCP 1.x. Choose VM-2H2 for 4K HDR installations; VM-2Hxl for 1080p or lower resolution deployments.
Does the VM-2H2 support HDCP 2.2 on both outputs?
Yes. Both outputs are HDCP 2.2 compliant, supporting protected 4K content from streaming devices, Blu-ray players, and other HDCP 2.2 sources without downgrade issues.
