Kramer VM-2DT 1:2 4K60 4:2:0 Long–Reach HDBaseT DA
Product Overview

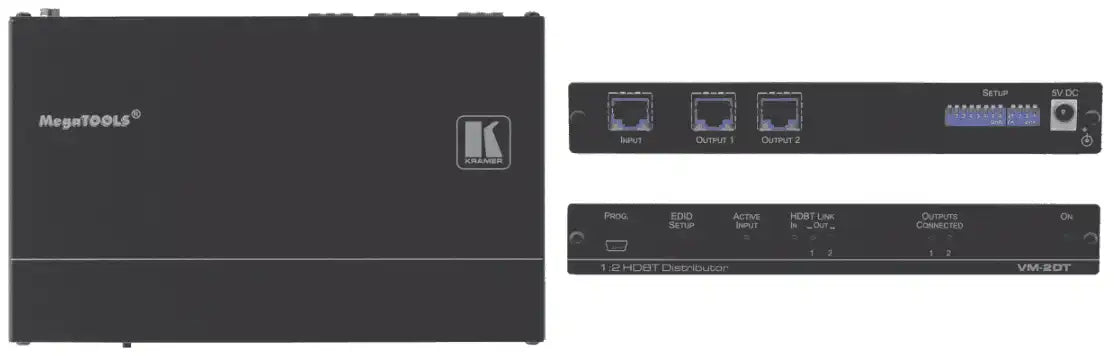

The Kramer VM-2DT is a 1:2 long-reach HDBaseT distribution amplifier that accepts one HDBaseT input signal and distributes it to two identical HDBaseT outputs, enabling HDBaseT signal splitting for installations where one HDBaseT transmitter needs to feed two remote displays simultaneously. AV integrators use the VM-2DT when an existing HDBaseT transmitter — such as a wall plate or switcher transmitter — must feed a second display without running a second cable from the source. It distributes 4K@60Hz (4:2:0) video at up to 130m per output over standard Cat6/7 cable and supports the full HDBaseT signal bundle including Ethernet, RS-232, and IR pass-through on both outputs.
Key Features
- 1:2 HDBaseT Signal Distribution — Splits one HDBaseT input to two identical HDBaseT outputs for dual-display distribution.
- 4K@60Hz (4:2:0) Support — Distributes native HDBaseT 4K video to both outputs up to 130m each.
- Full HDBaseT Signal Bundle — Passes Ethernet, RS-232, and IR alongside video on both outputs.
- Compatible with Any HDBaseT Transmitter — Works with any HDBaseT standards-compliant transmitter and receiver pair.
Typical Applications
- Conference room HDBaseT feed splitting to two displays
- University classroom HDBaseT signal distribution to dual projectors
- Digital signage HDBaseT two-zone distribution from single transmitter
- Corporate campus building distribution point HDBaseT split
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDBaseT (RJ-45) |
| Outputs | 2x HDBaseT (RJ-45), up to 130m each over CAT6/7 |
| Max Resolution | 4K@60Hz (4:2:0) |
| Signal Bundle | Video, Ethernet, RS-232, IR (pass-through on all outputs) |
Frequently Asked Questions
What is the difference between VM-2DT and VM-2HDT?
The VM-2DT accepts a native HDBaseT input and distributes it to two HDBaseT outputs — suited for splitting an existing HDBaseT signal run. The VM-2HDT accepts an HDMI input and converts it to two HDBaseT outputs plus a local HDMI loop — suited for starting a new HDBaseT run from an HDMI source. Choose VM-2DT when you already have an HDBaseT transmitter; VM-2HDT when starting from HDMI.
