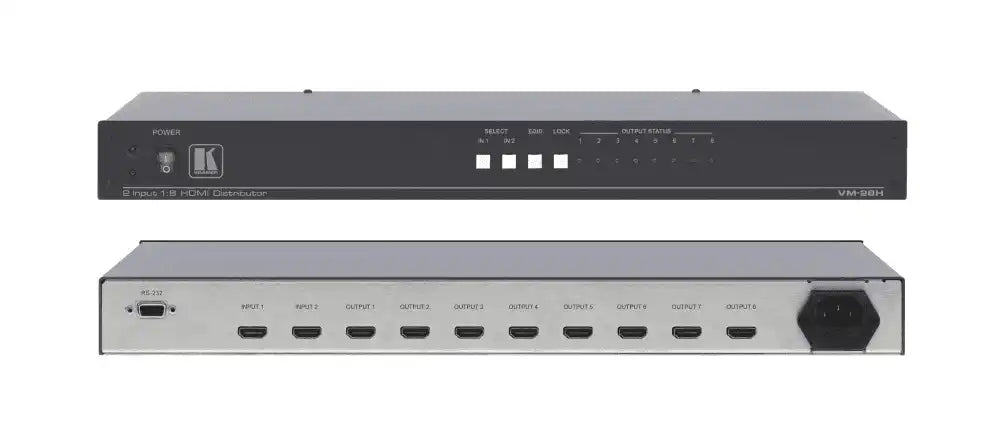

Kramer VM-28H-NV/110V 2x1:8 HDMI Switchable DA

Product Overview

The Kramer VM-28H is a 2×1:8 switchable HDMI distribution amplifier that selects between two HDMI inputs and distributes the chosen signal to eight identical outputs — providing both source switching and signal distribution in a single rack-mount unit for conference rooms, training rooms, and multi-display commercial installations. AV integrators use the VM-28H when a room or facility requires the ability to switch between two HDMI sources (such as a laptop and a media player) while simultaneously feeding eight displays or downstream devices from the selected source. Kramer's Equalization and re-Klocking technology rebuilds the HDMI signal on each output, maintaining reliable signal integrity at extended cable distances. The compact form factor and universal 100–240V AC supply make it suitable for centralized AV equipment room installation.

Product Description

Input switching on the VM-28H is controlled from the front panel SELECT button or an optional IR remote transmitter — covering basic source selection needs without requiring a separate control system. HDCP compliance across all outputs ensures protected content from Blu-ray players, streaming devices, and cable boxes distributes without handshake failures. I-EDIDPro Intelligent EDID Processing handles EDID communication between the selected source and all eight connected displays automatically, while manual EDID storage via front panel READ/SELECT buttons provides more control in mixed-display installations. Active output LED indicators on the front panel give integrators immediate per-output status visibility during installation and troubleshooting. The VM-28H handles HDMI signals including Deep Color, Lip Sync, CEC, and 3D pass-through per the HDMI specification. Enhanced EDID storage allows a separate EDID to be saved for each input in non-volatile memory, ensuring sources negotiate correctly when switching between inputs with different connected displays.

Key Features

• 2×1:8 HDMI Switching and Distribution — Selects between 2 HDMI inputs and distributes to 8 identical outputs in one unit.
• Kramer Equalization and re-Klocking — Rebuilds signal integrity on all 8 outputs for reliable long-cable performance.
• HDCP Compliant — Passes protected HDMI content to all 8 outputs without handshake errors.
• I-EDIDPro Intelligent EDID Processing — Automatic EDID handling ensures plug-and-play with all connected displays.
• Enhanced Per-Input EDID Storage — Separate EDID can be stored for each input in non-volatile memory for consistent source negotiation.
• Front Panel and IR Source Selection — Input switching via front panel SELECT button or optional IR remote.
• HDMI Feature Support — Deep Color, Lip Sync, CEC, and 3D pass-through per HDMI specification.
• 8 Active Output LED Indicators — Per-output status LEDs for commissioning and fault identification.
• Universal Power Supply — 100–240V AC for worldwide deployment without voltage adjustment.

Typical Applications

• Conference room 2-source selection with multi-display distribution
• Training room with laptop and media player switching to 8 screens
• Corporate digital signage with primary and backup source
• University classroom dual-source AV distribution
• House of worship with two presenter switching to multiple displays

Technical Specifications
