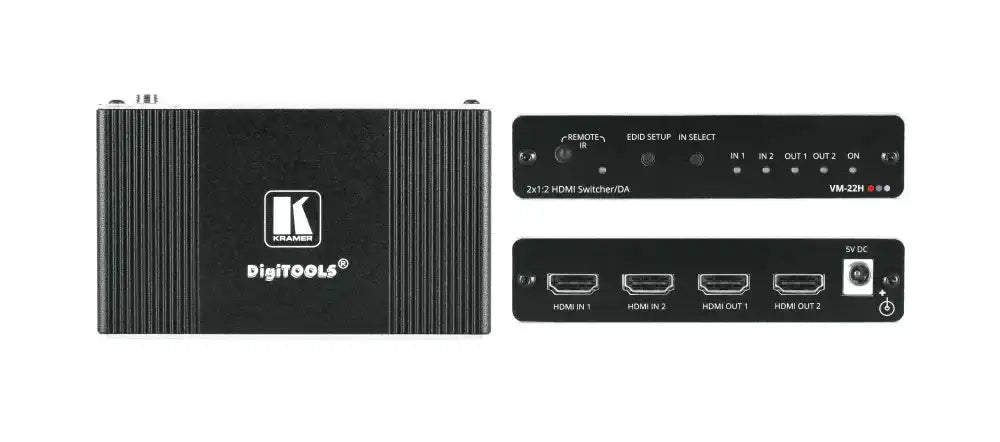

Kramer VM-22H 2x1:2 Compact HDMI Switchable Distribution Amplifier
Product Overview
The Kramer VM-22H is a compact 2×1:2 switchable HDMI distribution amplifier that selects between two HDMI inputs and distributes the chosen signal to two identical outputs — providing source switching and distribution in a single TOOLS form factor unit for conference rooms, huddle spaces, and small meeting rooms. AV integrators use the VM-22H where a room has two HDMI sources sharing two displays, or where a local display and a downstream extender or DA both need the same switchable signal. Kramer Equalization and re-Klocking rebuilds the HDMI signal on both outputs for reliable delivery over extended cable runs. Its compact footprint and simple front panel controls make it straightforward to install under a table, on a shelf, or in a small equipment cabinet.
Key Features
- 2×1:2 Switchable HDMI Distribution — Selects between 2 inputs and distributes to 2 identical HDMI outputs.
- Kramer Equalization and re-Klocking — Rebuilds signal integrity on both outputs for reliable cable performance.
- HDCP Compliant — Passes protected HDMI content to both outputs.
- HDMI Feature Support — Deep Color, Lip Sync, CEC, 3D pass-through.
- EDID Pass-Through — Automatic plug-and-play EDID handling.
- Front Panel Input Selection — Simple button-based source switching at the unit.
- TOOLS Form Factor — Compact desktop unit for under-table or shelf installation.
Typical Applications
- Huddle room and small conference room 2-source switching to 2 displays
- Boardroom presenter position dual-output source switching
- University classroom 2-source local and projector feed
- Training room dual-output content sharing
Technical Specifications
| Parameter | Value |
|---|---|
| Inputs | 2x HDMI connectors |
| Outputs | 2x HDMI connectors |
| Max Data Rate | 6.75Gbps (2.25Gbps per graphic channel) |
| Standards | HDMI, HDCP |
| HDMI Features | Deep Color, Lip Sync, CEC, 3D pass-through |
| Control | Front panel input selection button |
| Form Factor | TOOLS — compact desktop |
Frequently Asked Questions
Does the VM-22H support 4K video?
The VM-22H supports HDMI at up to HDMI 1.4 bandwidth (6.75Gbps), covering 1080p60 and standard HD formats. For 4K HDMI distribution with 2 outputs, see the Kramer VM-2H2 which supports 4K HDR and HDCP 2.2.
Can it be rack-mounted?
The VM-22H is a TOOLS form factor desktop unit. It can be rack-mounted with the optional Kramer RK-3T 19-inch rack adapter.
