Kramer VM-218DTXR 2x1:8 4K UHD HDMI and HDBaseT Distribution Amplifier
Product Overview

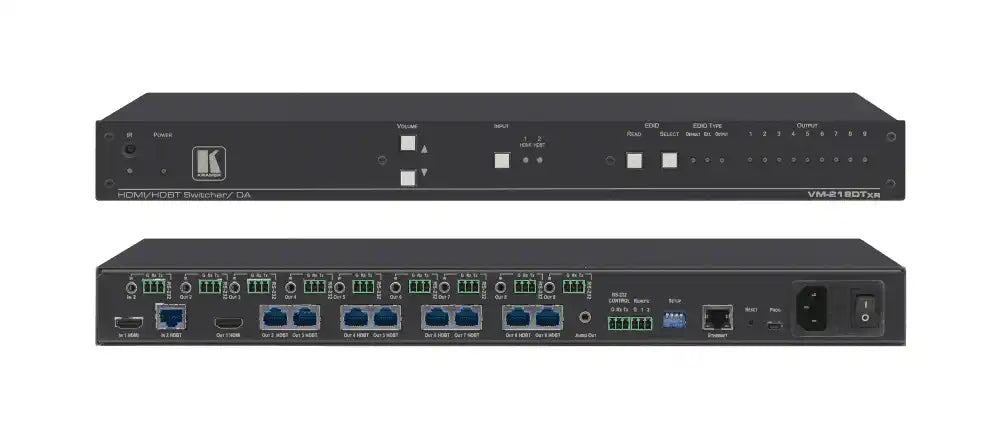

The Kramer VM-218DTXR is a 2x1:8 extended-reach HDBaseT distribution amplifier for 4K@60Hz (4:2:0) HDMI and HDBaseT signals, designed for large-venue commercial AV deployments where signal distribution over long runs of Cat cable is required. It accepts either an HDMI or extended-reach HDBaseT input and distributes the signal to eight HDBaseT outputs, each capable of driving up to 180 meters over CAT6 or CAT7 cable. AV system designers and integrators specify the VM-218DTXR for multi-display installations in conference centers, auditoriums, and education facilities where centralized equipment rooms feed distributed displays throughout a building. The unit includes IR and RS-232 control signal pass-through on all outputs for end-to-end display management.
Key Features
- 2x1:8 Extended-Reach HDBaseT Distribution — Selectable HDMI or HDBaseT input distributed to eight HDBaseT outputs at up to 180m over CAT6/7.
- 4K@60Hz (4:2:0) Support — Handles Ultra HD video with HDCP 2.2 compliance for protected content distribution.
- Bidirectional RS-232 and IR Pass-Through — Control signals routed on all eight outputs for remote display power management and source selection.
- PoE Support — Powers compatible HDBaseT receivers over the same twisted-pair cable, reducing installation complexity.
- Auto-Switching Input Selection — Automatically selects between HDMI and HDBaseT input based on active signal detection.
- Rack-Mount 1U Form Factor — Standard 19-inch rack chassis for integration into centralized AV equipment rooms.
- EDID Management — Built-in EDID handling ensures reliable source-to-display handshaking across all outputs.
- Kramer Protocol 3000 — RS-232 and Ethernet control for integration with room automation and AV control systems.
Typical Applications
- Conference center and convention hall multi-display systems
- University lecture hall and classroom AV distribution
- Corporate campus digital signage networks
- Auditorium and performing arts center AV systems
- House of worship multi-zone video distribution
- Government and military multi-room display installations
Frequently Asked Questions
What is the maximum cable run distance for each output?
Each of the eight HDBaseT outputs supports runs up to 180 meters (approximately 590 feet) over CAT6 or CAT7 solid-core UTP cable when used with compatible Kramer HDBaseT receivers.
Does the VM-218DTXR support 4K at full 4:4:4 chroma?
The VM-218DTXR supports 4K@60Hz at 4:2:0 chroma subsampling. For 4K@60Hz 4:4:4 distribution, review the VM-218DT or contact Creation Networks at https://creationnetworks.net for the right product match.
Can it power HDBaseT receivers over the cable?
Yes. The unit supports Power over HDBaseT (PoHDBaseT), supplying power to compatible Kramer receivers over the same Cat cable used for signal, eliminating the need for local power supplies at each display location.
Which control interfaces are available?
The VM-218DTXR supports RS-232 and Ethernet control using Kramer Protocol 3000, compatible with Crestron, AMX, Extron, and other third-party control systems.
Is professional installation required?
Yes. This is a commercial-grade distribution amplifier intended for installation by qualified AV integrators. Proper cable termination and EDID management are required for reliable operation across all eight outputs.
