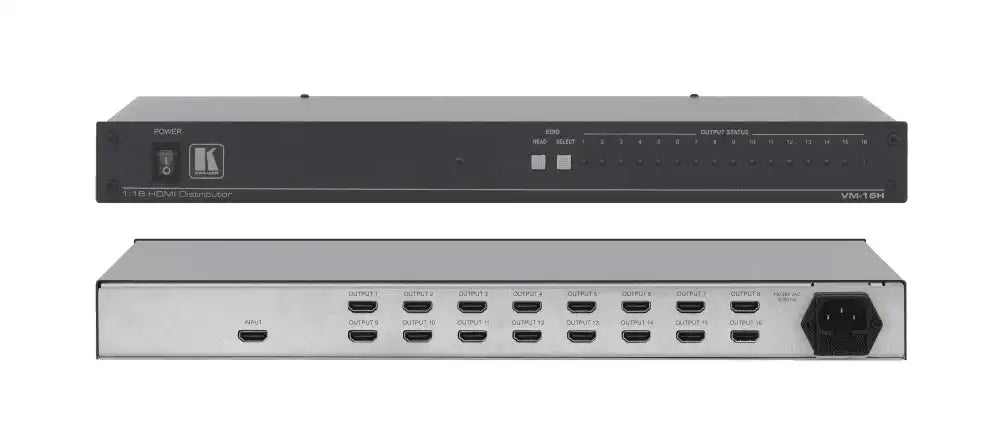

Kramer VM-16H 1:16 HDMI Distribution Amplifier

Product Overview

The Kramer VM-16H is a 1:16 HDMI distribution amplifier for commercial AV installations requiring one HDMI source to reach sixteen displays simultaneously — digital signage networks, auditoriums, training rooms, and multi-display corporate environments. It accepts a single HDMI input, reclocks and equalizes the signal using Kramer's Equalization and re-Klocking technology, and distributes it to 16 identical HDMI outputs at up to 1080p with full HDCP compliance. AV integrators specify the VM-16H when a reliable, high-output-count HDMI DA is needed in a standard 1U rack space with a universal 100–240V AC power supply and no additional configuration overhead. Its EDID pass-through and front panel EDID management tools ensure plug-and-play operation across all 16 connected displays.

Product Description

The VM-16H rebuilds signal integrity on every output using Kramer Equalization and re-Klocking, which compensates for cable degradation and extends reliable HDMI reach beyond what passive cabling alone can achieve. HDCP compliance is maintained across all 16 outputs, ensuring protected content from Blu-ray players, set-top boxes, and streaming devices distributes without handshake failures. The EDID pass-through algorithm handles EDID communication between the source and connected displays automatically, while the front panel SELECT and READ buttons allow manual EDID acquisition and storage for more complex multi-display scenarios. Active output LED indicators on the front panel give instant status visibility for each of the 16 outputs during commissioning and troubleshooting. The 1U 19-inch rack-mount form factor with included rack ears installs cleanly in any central AV equipment room alongside matrix switchers and audio processors. Universal 100–240V AC power supply accepts any mains voltage worldwide without adjustment.

Key Features

• 1:16 HDMI Distribution — Distributes one HDMI source to 16 identical outputs simultaneously.
• Kramer Equalization and re-Klocking — Rebuilds signal integrity on each output for reliable long-cable performance.
• HDCP Compliant — Handles protected HDMI content across all 16 outputs without dropouts.
• HDMI Support — Deep Color, x.v.Color, Lip Sync, CEC, and 3D pass-through per HDMI specification.
• EDID Pass-Through — Automatic EDID handling ensures plug-and-play compatibility with all connected displays.
• Front Panel EDID Management — SELECT and READ buttons for manual EDID acquisition and storage.
• 16 Active Output LED Indicators — Per-output status LEDs for quick commissioning and fault identification.
• 1U Rack-Mount — Standard 19-inch 1U form factor with included rack ears and universal 100–240V AC supply.

Typical Applications

• Auditorium and performing arts center multi-display distribution
• University lecture hall and classroom video distribution
• Corporate digital signage networks over HDMI
• Conference center and convention hall display feeds
• House of worship IMAG and overflow display systems
• Government and municipal multi-display AV installations
